ASROCK PHANTOM GAMING B650E PG-ITX WiFi User Manual

English
49
B650E PG-ITX WiFi
Step 5
Before securing Blazing M.2 Gen5
Fan Heatsink, make sure to align the
notch on the SSD to the stando on
the motherboard; otherwise, the SSD
module may be damaged.

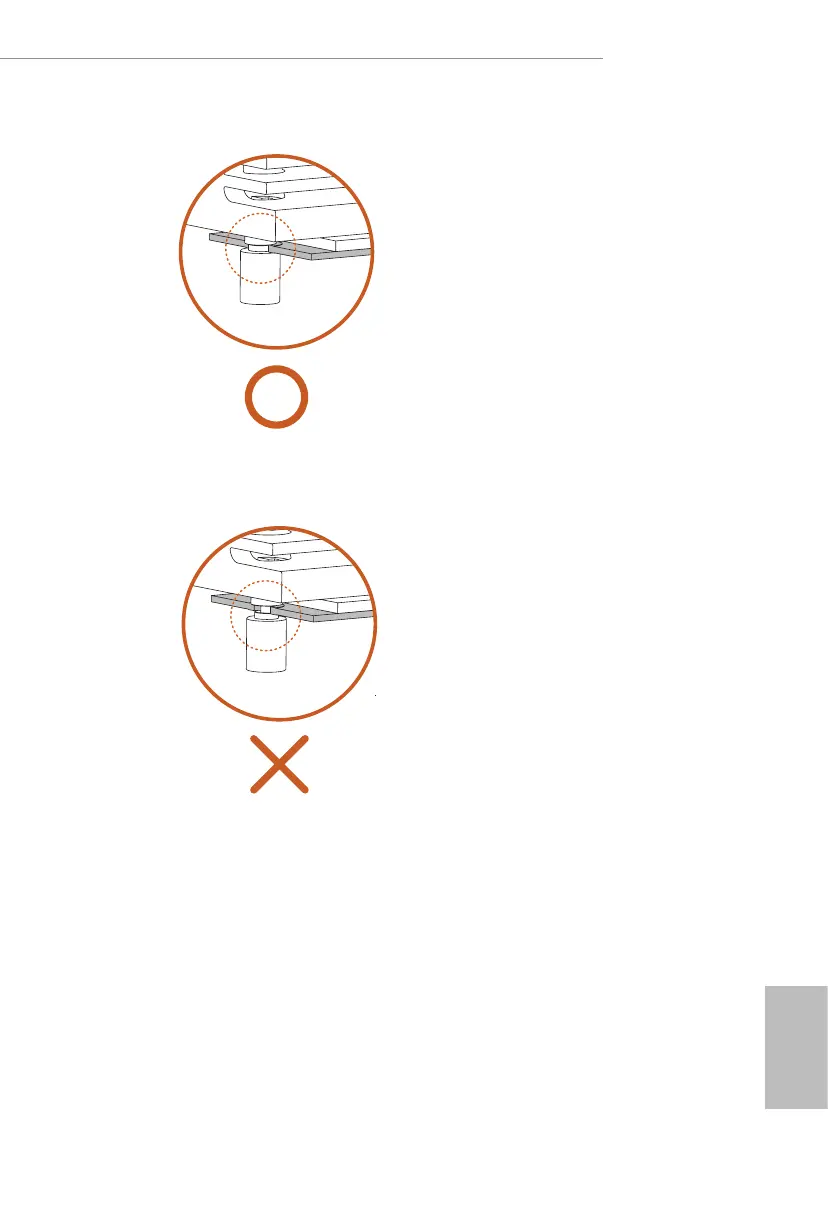

Correct Installation:
e SSD's PCB is in proper place, and Blazing
M.2 Gen5 Fan Heatsink can be screwed in.
Incorrect Installation:
e SSD's PCB sits between Blazing M.2
Gen5 Fan Heatsink and stando. Do not
continue.

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Specifications

General

Chipset	AMD B650E
Form Factor	Mini-ITX
Memory Slots	2 x DIMM
Max Memory	64GB
PCIe Slots	1 x PCIe 5.0 x16
Bluetooth	Bluetooth 5.2
Ethernet	2.5 Gigabit LAN
CPU Socket Type	AM5
Memory Speed	DDR5 6400+(OC)
Storage Interface	4 x SATA3
Wireless	Wi-Fi 6E
USB Ports	1 x USB 3.2 Gen2x2 Type-C
Video Outputs	1 x HDMI, 1 x DisplayPort
