Q1900B-ITX
/
D1800B-ITX
6 7
English

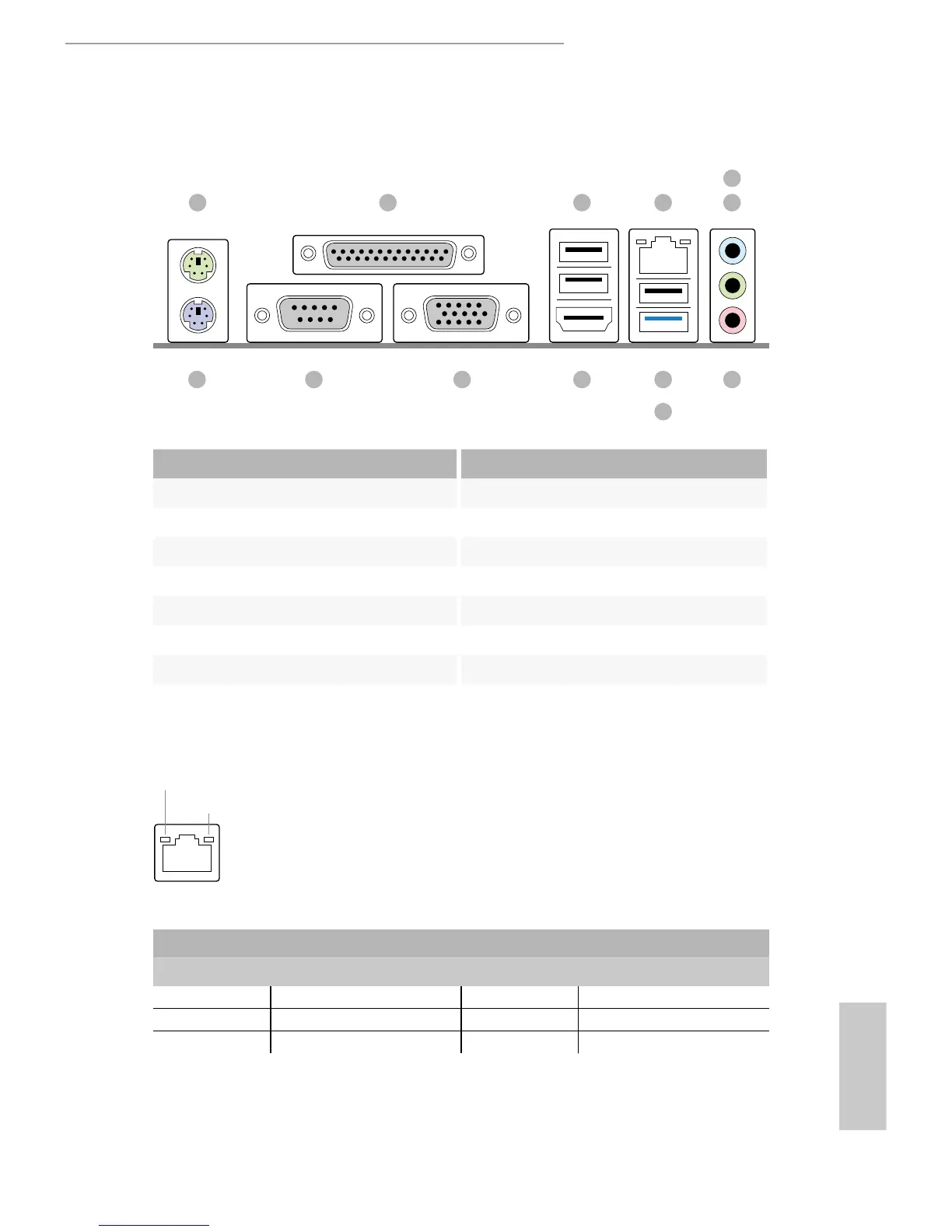

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 2.0 Port (USB2)
2 Parallel Port 9 USB 3.0 Port (USB3)
3 USB 2.0 Ports (USB01) 10 HDMI Port
4 LAN RJ-45 Port* 11 D-Sub Port
5 Line In (Light Blue) 12 COM Port
6 Front Speaker (Lime) 13 PS/2 Keyboard Port
7 Microphone (Pink)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 2 3 4 6
78
9
1012 1113
5
ACT/LINK LED
SPEED LED
LAN Port
