ASROCK Q1900TM-ITX - I;O Panel Description

8
English

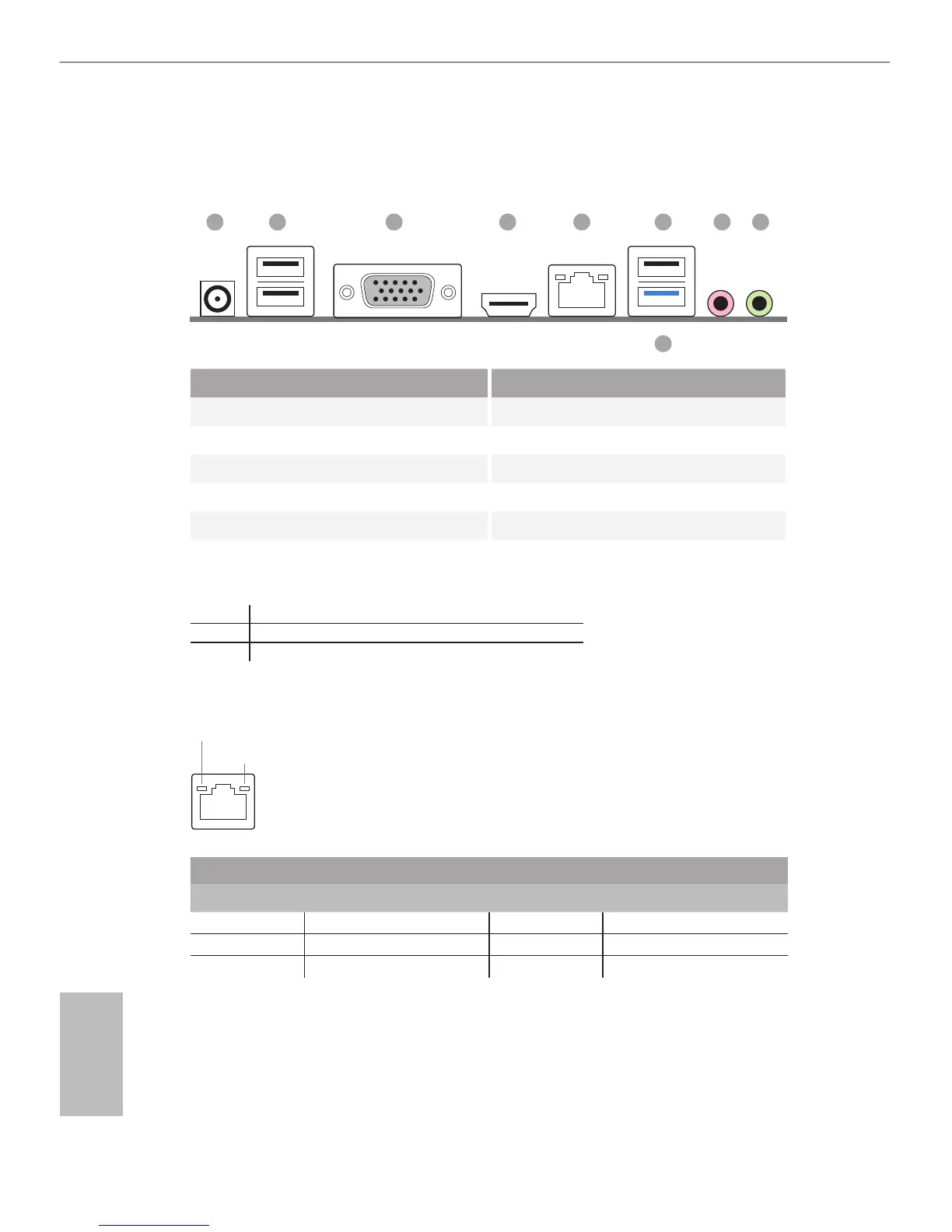

1.4 I/O Panel
No. Description No. Description
1 DC Jack* 6 USB 2.0 Ports (USB_0)
2 USB 2.0 Ports (USB_23) 7 Microphone (Pink)
3 D-Sub Port 8 Front Speaker (Lime)
4 HDMI Port (HDMI1) 9 USB 3.0 Ports (USB_1)
5 LAN RJ-45 Port**
* Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of
5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity O 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
876
9
2 5431
