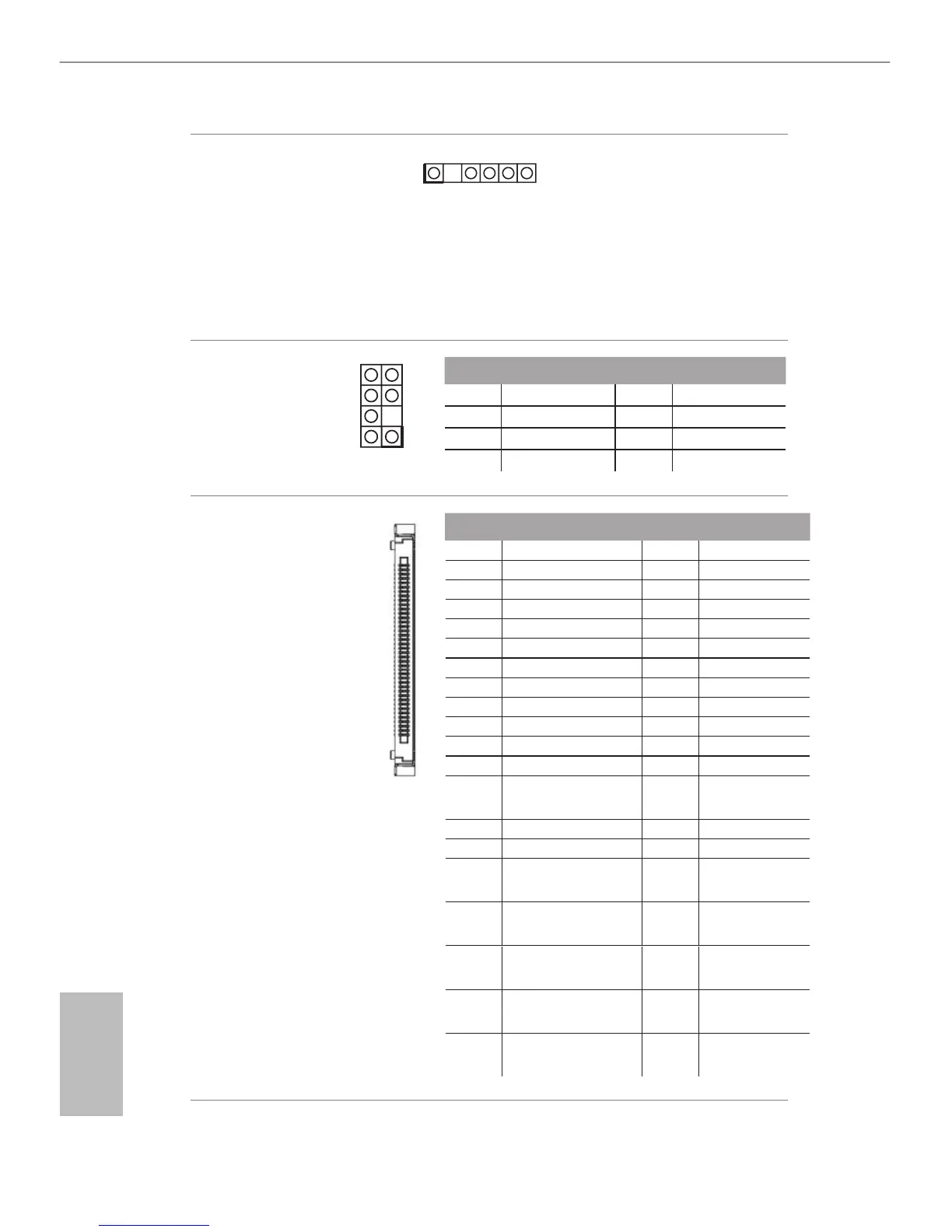

Digital MIC Header
(5-pin DMIC1)
(see p.5, No. 26)
1: +5V
2: No pin
3: SPDIF_OUT/DMIC_
CLK
4: GND
5: DMIC_DATA
6: +3.3V
Home eater PC
Header
(7-pin HTPC1)
(see p.5, No. 24)
LVDS Panel Connector
(40-pin LVDS1)
(see p.5, No. 15)
PIN Signal Name PIN Signal Name
8 HDMI CEC 7 #Power_Button
6 SMB_DATA 5 3.3V Standby
4 SMB_CLK 3 No pin
2 GND 1 Recording LED
1
40
PIN Signal Name PIN Signal Name
1 ODD_Lane3_P 21 NC
2 ODD_Lane3_N 22 EDID_3.3V
3 ODD_Lane2_P 23 LCD_GND
4 ODD_Lane2_N 24 LCD_GND
5 ODD_Lane1_P 25 LCD_GND
6 ODD_Lane1_N 26 ODD_CLK_P
7 ODD_Lane0_P 27 ODD_CLK_N
8 ODD_Lane0_N 28 BKLT_GND
9 EVEN_Lane3_P 29 BKLT_GND
10 EVEN_Lane3_N 30 BKLT_GND
11 EVEN_Lane2_P 31 EDID_CLK
12 EVEN_Lane2_N 32 BKLT_ENABLE
13 EVEN_Lane1_P 33
BKLT_PWM_
DIM
14 EVEN_Lane1_N 34 EVEN_CLK_P
15 EVEN_Lane0_P 35 EVEN_CLK_N
16 EVEN_Lane0_N 36
BKLT_PWR
(12V/19V)
17 EDID_GND 37
BKLT_PWR
(12V/19V)
18
LCD_VCC
(3.3V/5V)
38
BKLT_PWR
(12V/19V)
19
LCD_VCC
(3.3V/5V)
39 NC
20
LCD_VCC
(3.3V/5V)
40 EDID_DATA
To Next Page
