ASROCK X570 Phantom Gaming-ITX/TB3 Manual

English
1
X570 Phantom Gaming-ITX/TB3

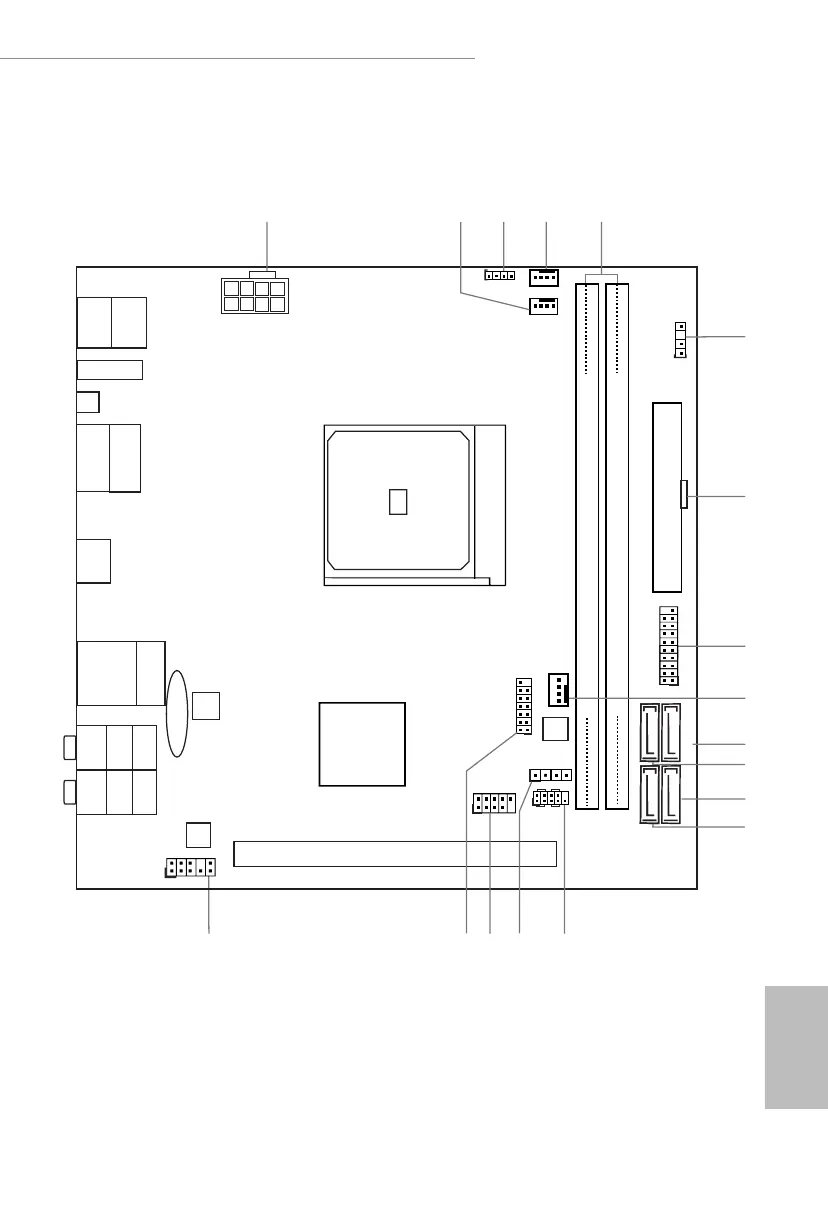

Motherboard Layout
4
3
7
5
8
9
1
14
18
16
11
10
12
ATXPWR1
RJ-45 LAN
SOCKETAM4
DPIN1
RoHS
DDR4_A1 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
USB 3.2 Gen2
T: USB31_TA_1
B: USB31_TA_2
PCIE1
PS2
Keyboard
/Mouse
HDMI1
Top:
Central/Bass
Cente r:
REAR SP K
Top:
LINE IN
Cente r:
FRONT
Botto m:
Optic al
SPDIF
Botto m:
MIC IN
SPEAKER1
SATA3 _2
SATA3 _4
SATA3 _1
SATA3 _3
ADDR_LED1
1
LAN
TB_1
AUDIO
CODEC
X570 Phantom Gaming-ITX/TB3
USB_1_2
1
1
1
1
RGB_HEADER1
1
AMD
Premium
X570
ATX 12V1
CHA_FAN1/WP
CPU_FAN2/WP
2
USB3_ 3_4
1
13
CPU_FAN1
1
HD_AUDIO1
SPI_TPM_J1
USB 3.2 Gen1
T: USB1
B: USB2
M2_WIFI
CLRC
BTN
6
HDLED RESET
PLED PWRBTN
PANEL1
1517
CMOS
Battery
BIOS
ROM

ASROCK X570 Phantom Gaming-ITX/TB3 Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
ECC	Yes
Memory voltage	1.2 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 4133, 4200, 4266, 4300, 4400, 4533 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	UEFI AMI
ACPI version	5.1
BIOS memory size	256 Mbit
LAN controller	Intel® I211-AT
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1220
Cooling type	Passive
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10
Supported processor sockets (cooler)	LGA 115x
UEFI version	2.3.0
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
