ASROCK X570S PG Riptide - Page 37

English
31
X570S PG Riptide

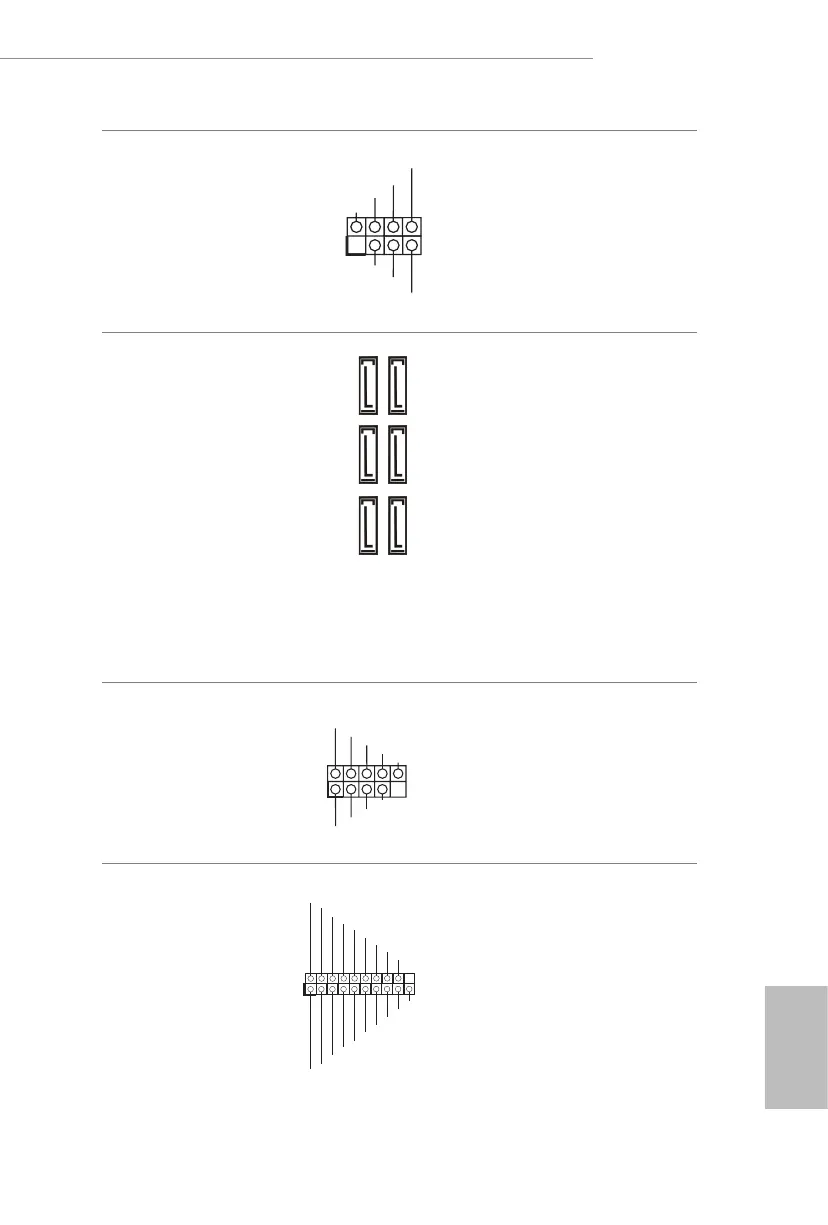

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.8, No. 20)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_1:
see p.8, No. 14) (Lower)
(SATA3_2:
see p.8, No. 14) (Upper)
(SATA3_3:
see p.8, No. 15) (Lower)
(SATA3_4:
see p.8, No. 15) (Upper)
(SATA3_5:
see p.8, No. 16) (Lower)
(SATA3_6:
see p.8, No. 16) (Upper)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_2 is occupied by
a PCIE-type M.2 device,
SATA3_5_6 will be
disabled.
USB 2.0 Headers
(9-pin USB_3_4)
(see p.8, No. 23)
(9-pin USB_5_6)
(see p.8, No. 22)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.2 Gen1 Headers
(19-pin USB3_5_6)
(see p.8, No. 18)
ere are two headers on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_4 SATA3_3
SATA3_6 SATA3_5
SATA3_2 SATA3_1
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
