ASROCK Z170 Extreme3 User Manual

72
English

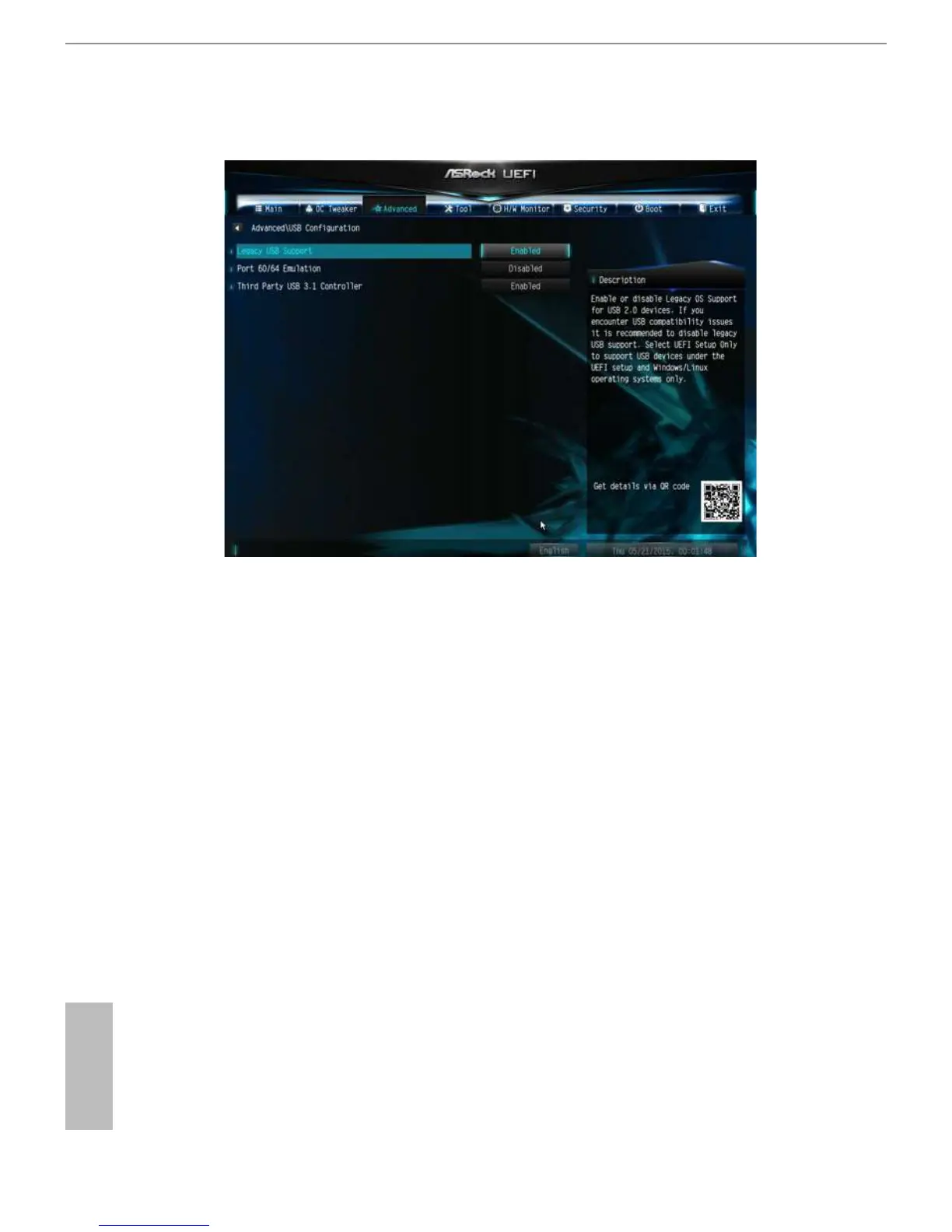

4.4.7 USB Conguration
Legacy USB Support
Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB
compatibility issues it is recommended to disable legacy USB support. Select UEFI
Setup Only to support USB devices under the UEFI setup and Windows/Linux
operating systems only.
Port 60/64 Emulation
Enable the support of I/O port 60h/64h emulation. is should be enabled for the
complete USB keyboard legacy support for non-USB aware OS.
*Enable this option if you install Windows 7.
Third Party USB 3.1 Controller
Enable or disable all of the USB 3.1 ports controlled by ird Party chips.

ASROCK Z170 Extreme3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2800, 2933, 3200, 3600, 3866 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	Intel® Z170
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
BIOS type	UEFI AMI
ACPI version	5.0
Number of M.2 (M) slots	1
PCI Express x16 (Gen 3.x) slots	3
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA, SATA III
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of SATA III connectors	6
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	SATA
Bundled software	ASRock A-Tuning, ASRock Disk Health Report, ASRock USB Key, ASRock APP Charger, ASRock XFast LAN, ASRock XFast RAM, ASRock Fast Boot
Sustainability certificates	RoHS

Weight and Dimensions

Depth	244 mm
Width	305 mm
