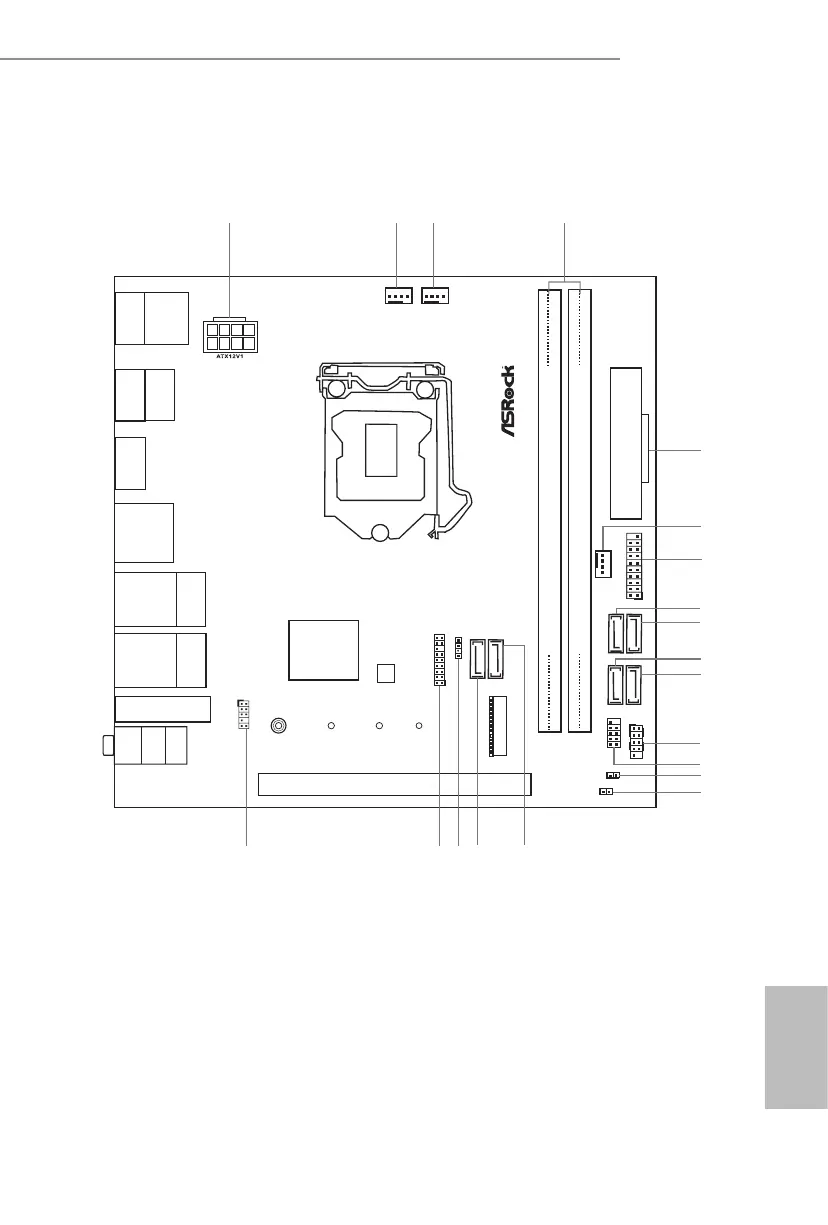

1.3 Motherboard Layout
PCIE1
DDR4_A1 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
CPU _FA N1
CHA _FA N1 /W P
6
RoHS
Z390M-ITX/ac
3
7
9
14
8
USB 2.0
T: USB1
B: USB2
PS2
Key b oar d
/Mou se
18
17
16
15
5
1
HD_ AU DI O 1
1
SPE AK ER1
Intel
Z390
ATXPWR1
USB3 _6 _7
1
4
2
PANE L1
HDLE D RESET
PLED PWR BTN
1
TPMS 1
1
1
CI1
HDMI1
Top:
LINE IN
Cente r:
FRONT
Botto m:
MIC IN
SATA3 _3
SATA3 _2
1
CLRMO S1
SATA3 _1
SATA3 _0
1
USB_ 3_ 4
SATA3 _5
SATA3 _4
M2_1
C 4
C 3C 2C 1
T
T
T
T
Top:
RJ-45
Top:
RJ-45
1
10
11
12
13
19
BIOS
ROM
M2_WIFI1
D ISPLAY1
CHA _FA N2
20
Ultra M.2
PC I e Ge n 3 x4
USB 3.1 Gen2
USB 3.1 Gen2
T: USB31_2
B: USB31_3
USB 3.1 Gen2
T: USB3_4
B: USB3_5
HDMI2
USB 3.1 Gen2
T: USB31_TA_1
B: USB 31_ T C_1

ASROCK Z390M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC892
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64
Cables included	SATA
Bundled software	ASRock A-Tuning, ASRock XFast LAN ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer
HDMI version	1.4
DisplayPort version	1.2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of SATA III connectors	6
LAN controller	Intel I211-AT, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
