ASROCK Z390M-ITX/ac User Manual

66
English

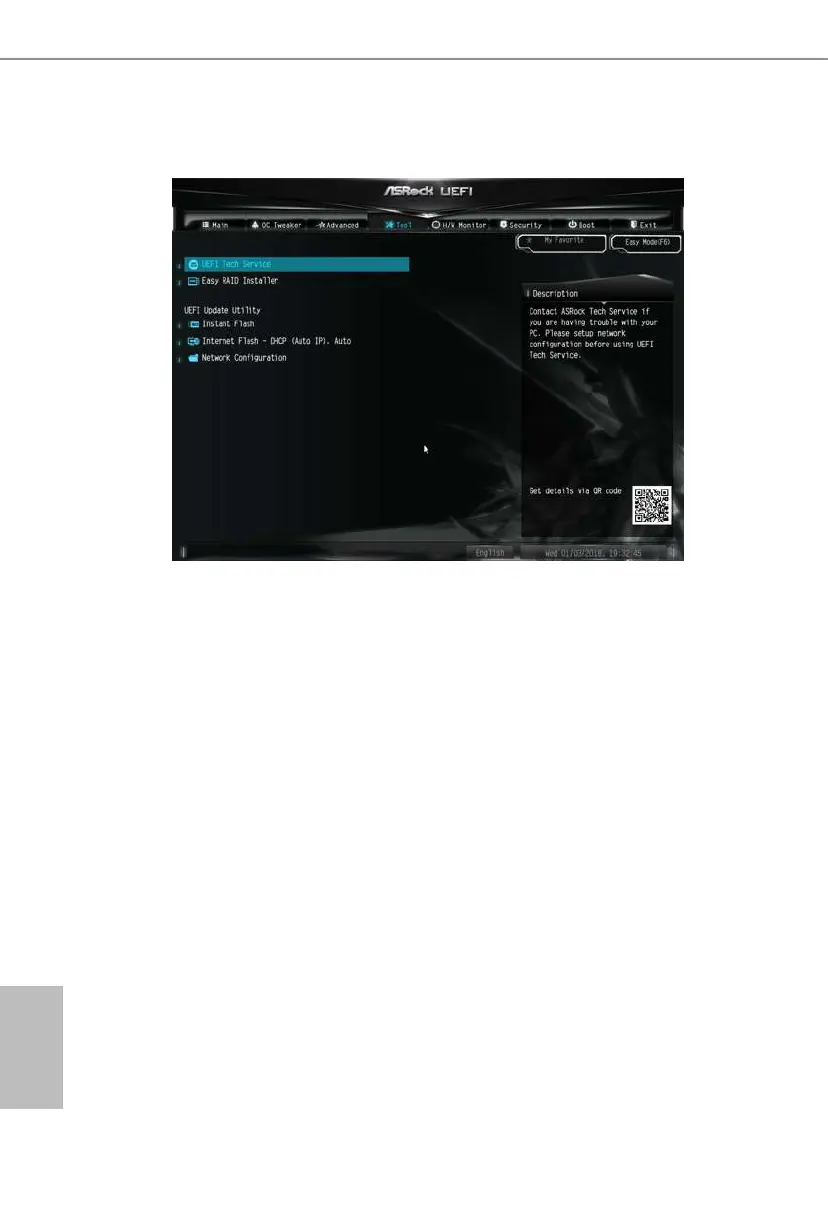

4.7 Tools
UEFI Tech Service
Contact ASRock Tech Service if you are having trouble with your PC. Please setup
network conguration before using UEFI Tech Service.
Easy RAID Installer
Easy RAID Installer helps you to copy the RAID driver from the support CD to
your USB storage device. Aer copying the drivers please change the SATA mode to
RAID, then you can start installing the operating system in RAID mode.
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Internet Flash - DHCP (Auto IP), Auto
ASRock Internet Flash downloads and updates the latest UEFI rmware version
from our servers for you. Please setup network conguration before using Internet
Flash.
*For BIOS backup and recovery purpose, it is recommended to plug in your USB
pen drive before using this function.

ASROCK Z390M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC892
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64
Cables included	SATA
Bundled software	ASRock A-Tuning, ASRock XFast LAN ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer
HDMI version	1.4
DisplayPort version	1.2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of SATA III connectors	6
LAN controller	Intel I211-AT, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
