ASROCK Z390M-ITX/ac User Manual

23
English
Z390M-ITX/ac

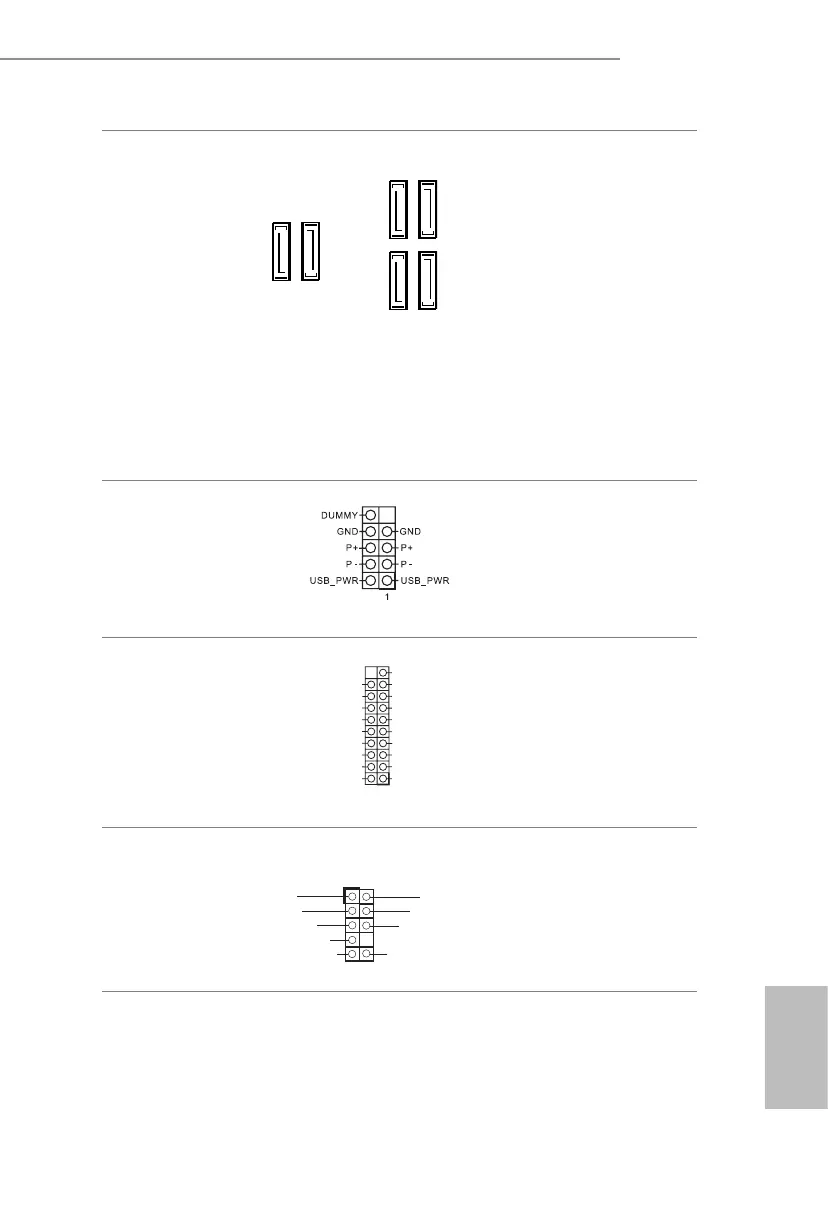

Serial ATA3 Connectors
(SATA3_0:
see p.7, No. 9)
(SATA3_1:
see p.7, No. 8)
(SATA3_2:
see p.7, No. 11)
(SATA3_3:
see p.7, No. 10)
(SATA3_4:
see p.7, No. 16)
(SATA3_5:
see p.7, No. 17)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
*If M2_1 is occupied by a SATA-
type M.2 device, SATA3_1 will
be disabled.
USB 2.0 Header
(9-pin USB_3_4)
(see p.7, No. 13)
ere is one USB2.0
header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.1 Gen1 Header
(19-pin USB3_6_7)
(see p.7, No. 7)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.7, No. 20)
is header is for
connecting audio devices
to the front audio panel.
SATA3_3 SATA3_2
SATA3_1 SATA3_0
SATA3_5 SATA3_4
1
IntA_ PB_D +
Dummy
IntA_ PB_D -
GND
IntA_ PB_S ST X +
GND
IntA_ PB_S ST X -
IntA_ PB_S SR X +
IntA_ PB_S SR X -
VbusVbus
Vbus
IntA_ PA_S SR X -
IntA_ PA_S SR X +
GND
IntA_ PA_S ST X -
IntA_ PA_S ST X +
GND
IntA_ PA_D -
IntA_ PA_D +
J_SENS
E
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

ASROCK Z390M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC892
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64
Cables included	SATA
Bundled software	ASRock A-Tuning, ASRock XFast LAN ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer
HDMI version	1.4
DisplayPort version	1.2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of SATA III connectors	6
LAN controller	Intel I211-AT, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
