ASROCK Z390M-ITX/ac User Manual

25
English
Z390M-ITX/ac

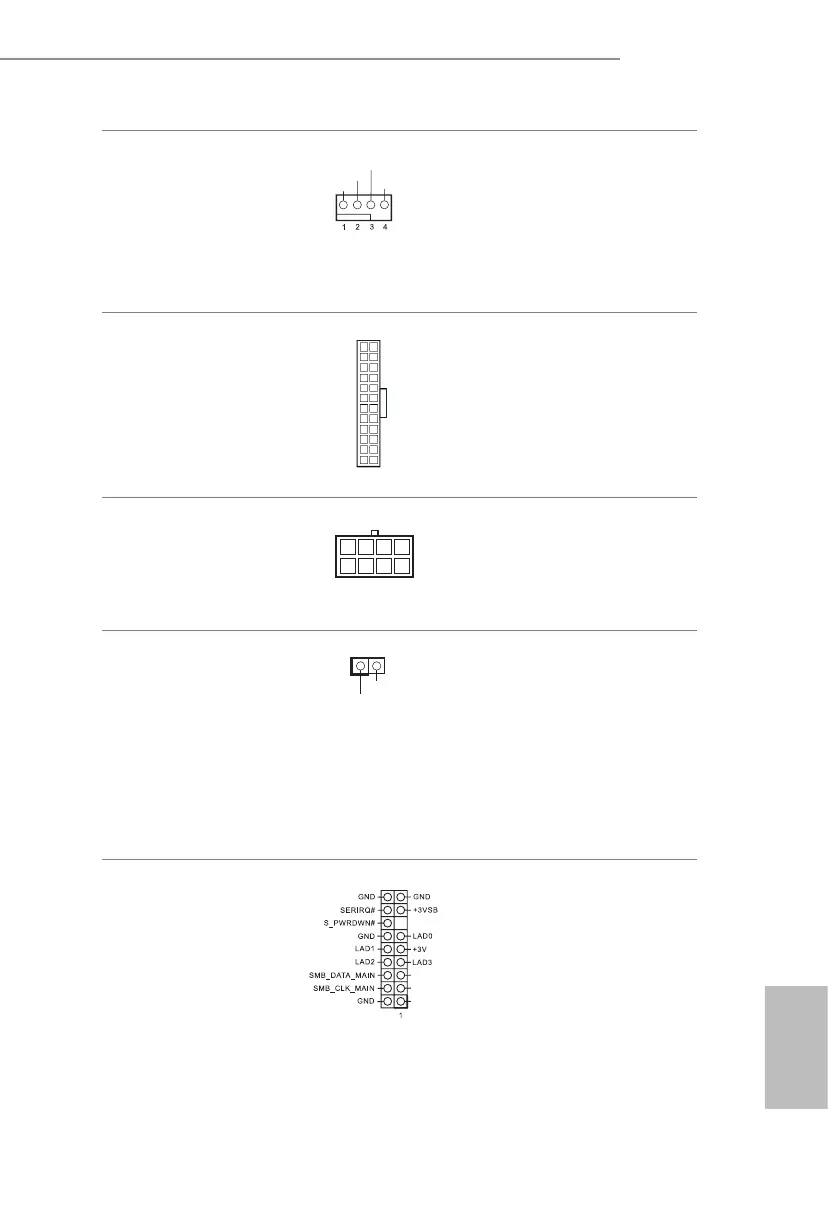

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.7, No. 3)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 5)
is motherboard pro-
vides a 24-pin ATX power
connector.
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.7, No. 1)
Please connect an ATX
12V power supply to this
connector.
Chassis Intrusion Header
(2-pin CI1)
(see p.7, No. 15)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
TPM Header
(17-pin TPMS1)
(see p.7, No. 19)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
GND
FAN_VOLTAGE_ CONTROL
FAN_SPEE D
FAN_SPEE D_CONTROL
12
1
24
13
5
1
8
4
1
Signal
GND
PCIRST#
FRAME
PCICLK

ASROCK Z390M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC892
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 x64
Cables included	SATA
Bundled software	ASRock A-Tuning, ASRock XFast LAN ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer
HDMI version	1.4
DisplayPort version	1.2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of SATA III connectors	6
LAN controller	Intel I211-AT, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
