English
24

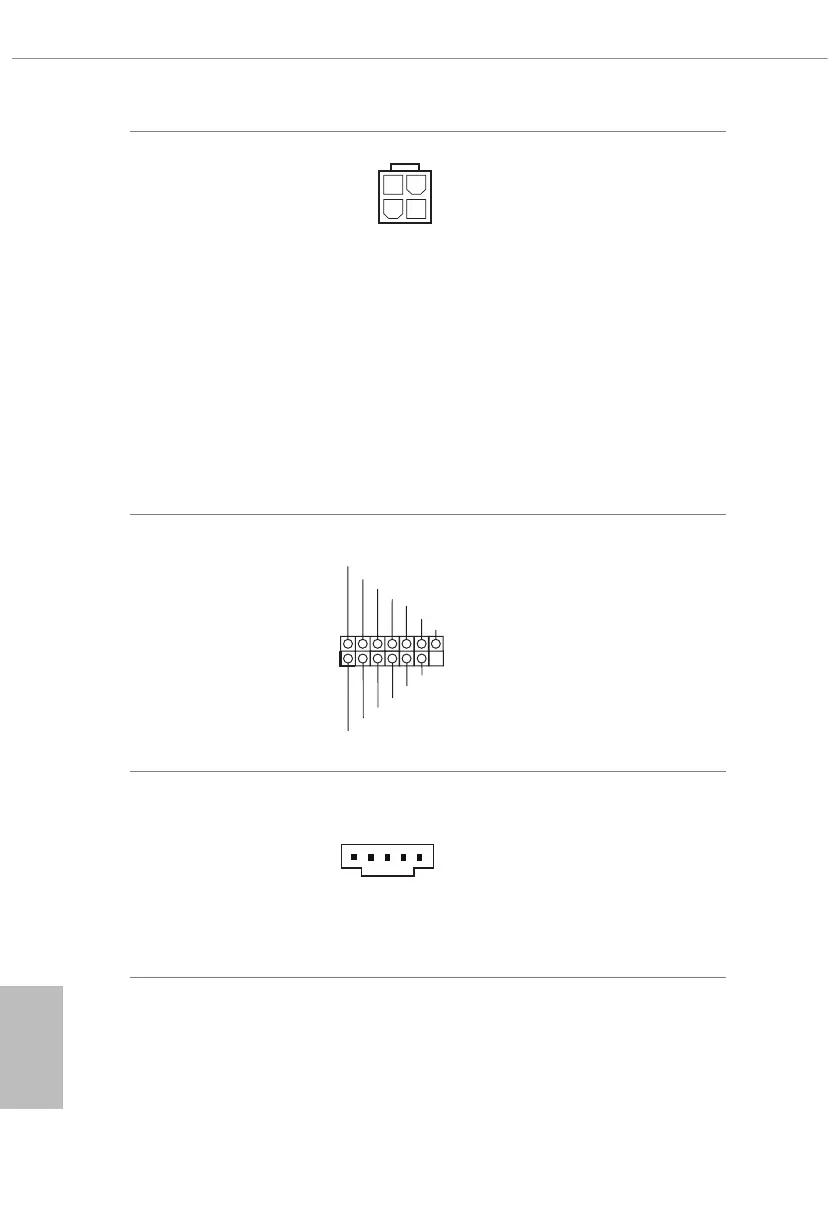

ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.7, No. 2)
Please connect an ATX
12V power supply to this
connector.
*e power supply plug
ts into this connector in
only one orientation.
*Connecting an ATX 12V
4-pin cable to ATX12V2 is
optional.
*For advanced
overclocking we suggest
using this connector
together with ATX12V1.
SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.7, No. 18)
is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certicates, pass-
words, and data. A TPM system
also helps enhance network
security, protects digital
identities, and ensures platform
integrity.
underbolt AIC
Connector
(5-pin TB1)
(see p.7, No. 28)
Please connect a underbolt™
add-in card (AIC) to the
underbolt AIC connector via
the GPIO cable.
*Please install the underbolt™
AIC card to PCIE3 (default
slot).
SPI_PWR
SPI_DQ2
SPI_CS0
Dummy
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS
RST#
RSMRST#
TPM_PIRQ
To Next Page
