ASROCK Z77E-ITX - Motherboard Layout

13

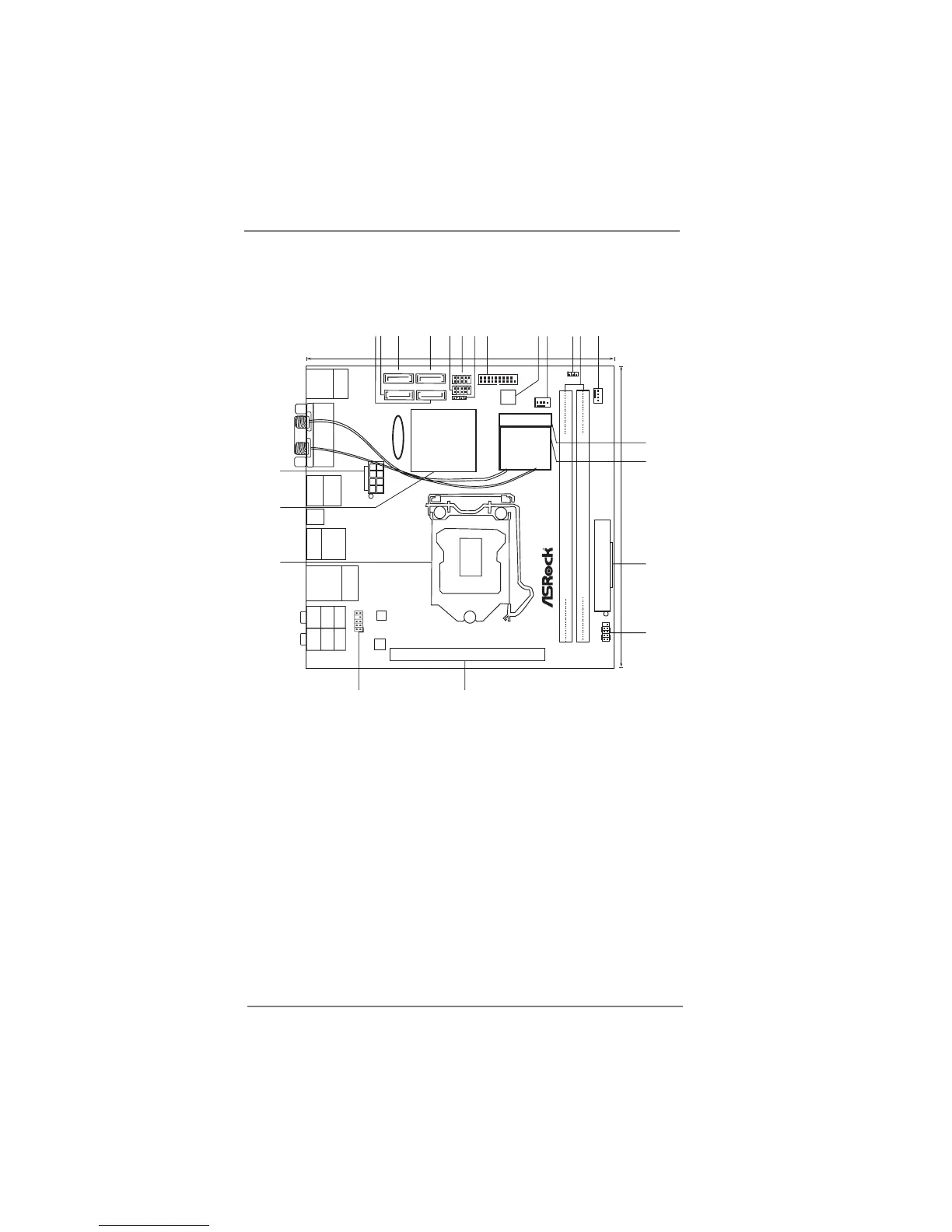

1.3 Motherboard Layout
1 SATA2 Connector (SATA_3, Black)
2 SATA3 Connector (SATA3_1, Gray)
3 SATA3 Connector (SATA3_0, Gray)
4 SATA2 Connector (SATA_2, Black)
5 USB 2.0 Header (USB2_3, Black)
6 USB 2.0 Header (USB4_5, Black)
7 Consumer Infrared Module Header
(CIR1, Gray)
8 USB 3.0 Header (USB3_3_4, Black)
9 SPI Flash Memory (64Mb)
10 CPU Fan Connector (CPU_FAN1)
11 Clear CMOS Jumper (CLRCMOS1)
12 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
13 Chassis Fan Connector (CHA_FAN1)
14 mini-PCI Express Slot (MINI_PCIE1)
15 WiFi-802.11n Module
16 ATX Power Connector (ATXPWR1)
17 System Panel Header (PANEL1, Black)
18 PCI Express 3.0 x16 Slot (PCIE1, Black)
19 Front Panel Audio Header
(HD_AUDIO1, Black)
20 1155-Pin CPU Socket
21 Intel Z77 Chipset
22 ATX 12V Power Connector (ATX12V1)
Intel
Z77
X Fast RAM
Z77E-ITX
PCIE1
17.0cm (6.7 in)
17.0cm (6.7 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
DDR3 2800+
CMOS
Battery
USB3_3_4
64Mb
BIOS
AUDIO
CODEC
LAN
PHY
RoHS
Front USB 3.0
PCI Express 3.0
CLRCMOS1
1
SATA3_1
SATA3_0
SATA_3
SATA_2
USB2_3
1
CIR1
1
USB4_5
1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
HD_AUDIO1
ATX12V1
CHA_FAN1
CPU_FAN1
MINI_PCIE1
USB 3.0
T: USBA1
B: USBA2
PS2
Keyboard/
Mouse
DVI1
HDMI1
DP1
Clr
CMOS
USB 2.0
T: USB0
B: USB1
ESATA1
Top:
RJ-45
USB 3.0
T: USB1
B: USB2
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
WiFi-802.11n
Module
1
2
3
4
5
6
11
10
7
8
9
12
13
14
15
16
17
18
19
20
21
22
