12
ASRock H61TM-ITX Motherboard
English

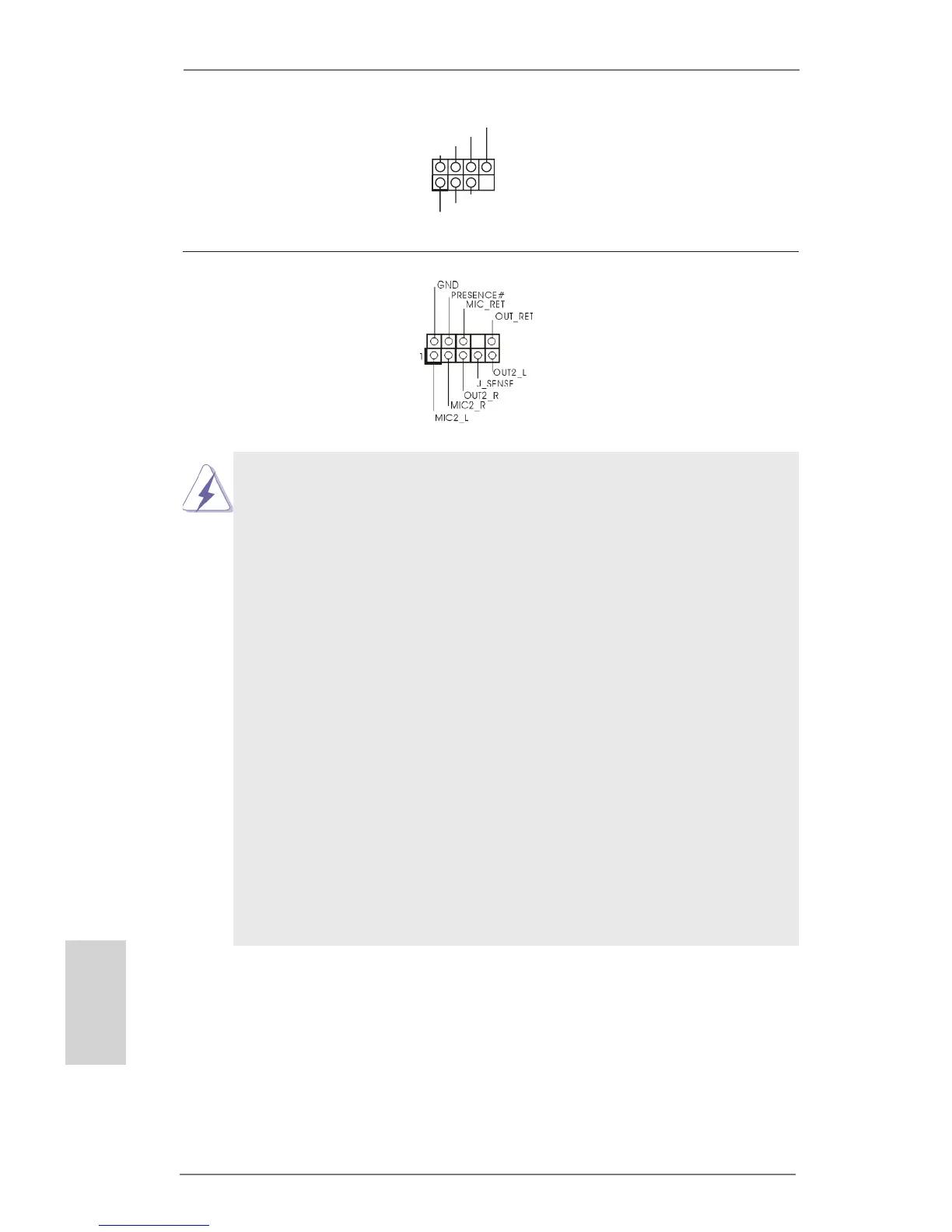

Consumer Infrared
Module Header
(7-pin CIR1)
(see p.2, No. 5)
This header can be used
to connect the remote
controller receiver.
1
GND
Learn-in
NC
+5VA
LED
+5VA
CIR input
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.2, No. 26)
This is an interface for the
front panel audio cable that
allows convenient connec-
tion and control of audio
devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow
the instructions in our manual and chassis manual to install your
system.
2. If you use an AC’97 audio panel, please install it to the front panel
audio header by the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to
OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows
®
XP / XP 64-bit OS:
Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows
®
8 / 8 64-bit / 7 / 7 64-bit / Vista
TM
/ Vista
TM
64-bit OS:
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
