Associated Electrics B5M - Shock Assembly and Bleeding

12
91308
12mm
Shock Piston
(1.6 front)
(1.7 rear)
91488
3 x 21
Shock Shaft
(front)
91489
3 x 27.5
Shock Shaft
(rear)
6299
1/8 E-Clip
6299
1/8 E-Clip
4187
Nylon Spacer,
(.030)
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Front:
2 spacers
Rear:
2 spacers

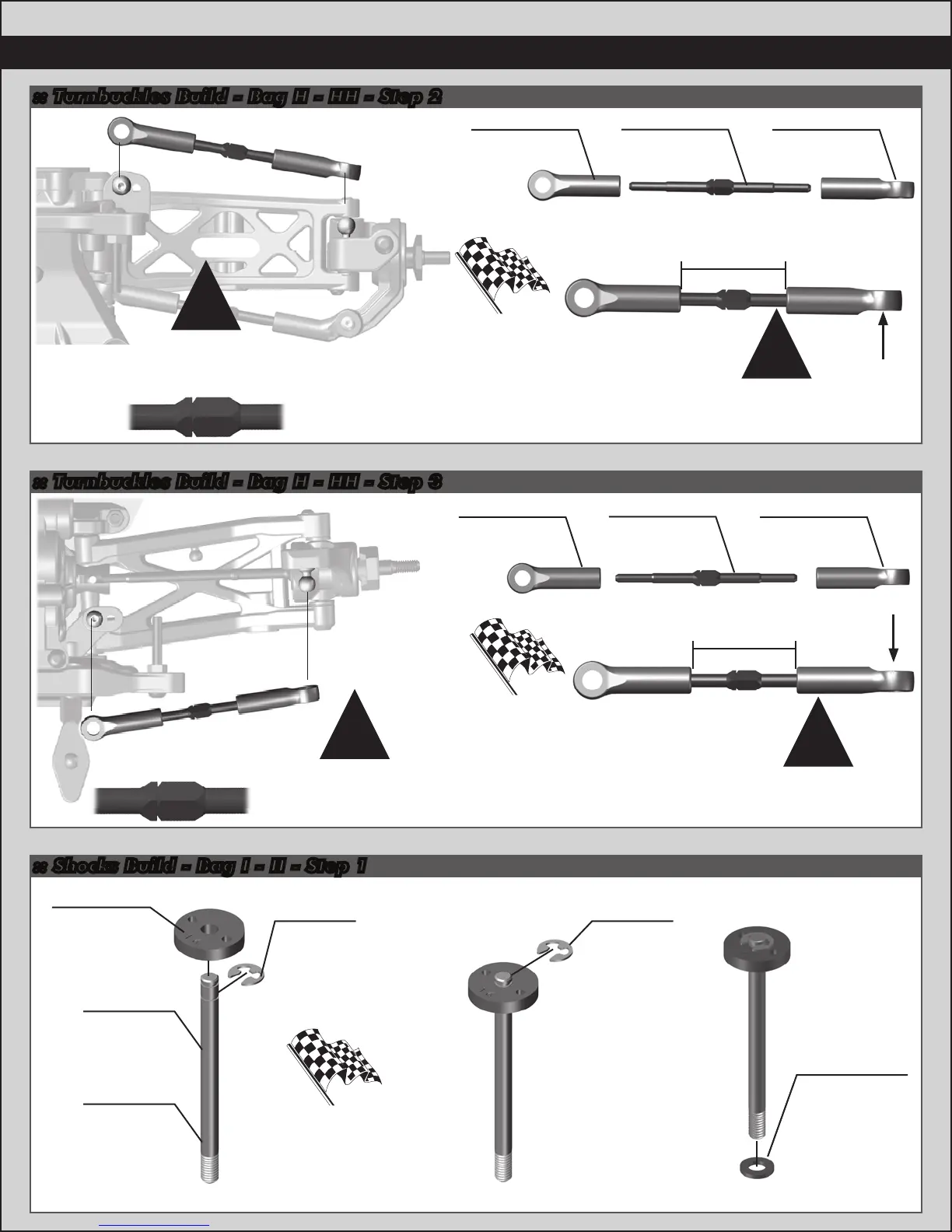

:: Shocks Build - Bag I - II - Step 1
Build x2 (right and left side)
Rear Camber Turnbuckle
23.50mm
91453
HD Ball Cup
91453
HD Ball Cup
6263
Turnbuckle,
2.06”
:: Turnbuckles Build - Bag H - HH - Step 3
Build x2 (right and left side)
Front Camber Turnbuckle
23.85mm
91453
HD Ball Cup
91453
HD Ball Cup
6263
Turnbuckle,
2.06”
:: Turnbuckles Build - Bag H - HH - Step 2
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Install the ballstuds on
curved side of the ballcup!
!
Install the ballstuds on
curved side of the ballcup!
!
