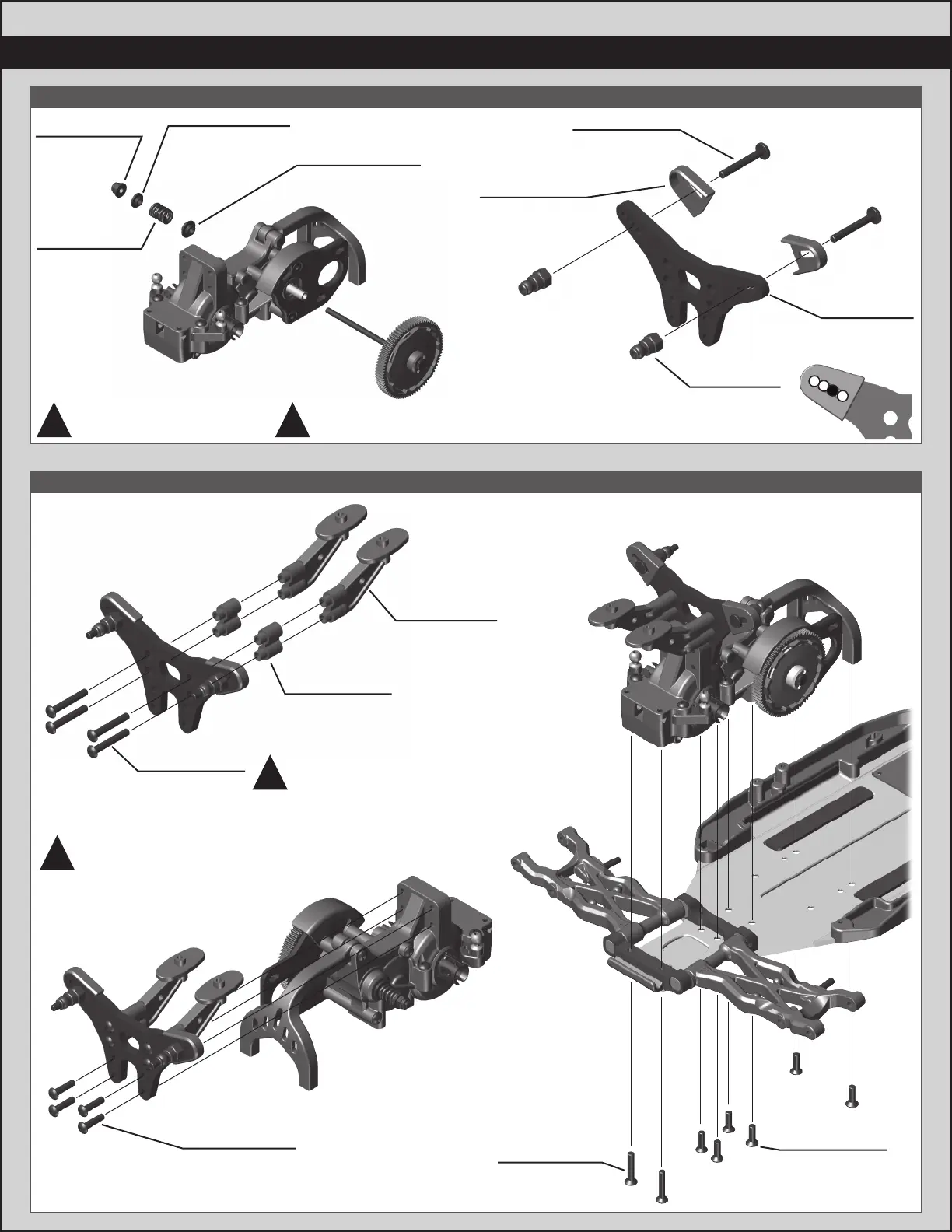

:: :: Bag Bag 6 - Step 66 - Step 6
:: :: Bag 6 - Step 5Bag 6 - Step 5
See page 20 for gear
mesh, and slipper clutch
setting instructions!
! !
Set nut
flush with
top shaft.
91801
Slipper Spring
Adapter, Inner
91801
Slipper Spring
Adapter, Outer
91801
B6.1 Slipper
Spring
25612
M3 Locknut,
Flanged
33
44
22
11
41095
M3 x 22mm
LP SHCS
91885
Rear Tower
Cover
x2x2
x2x2
92159
Shock
Bushing,
10mm
91881
Rear Shock
Tower, B6.3
x2x2
89202
M3 x 12mm
BHCS
x4x4
!
!
#25188 x4 (M3x20mm)
#89202 x4 (M3x12mm)
*use 12mm length screws
if rear wing mount spacer
is removed.
25188
M3 x 20mm
BHCS
x4x4
x2x2
x2x2
91718
Rear Wing
Mount
91718
Rear Wing
Mount Spacer
25202
M3 x 10mm
FHCS
x6x6
25204
M3 x 16mm
FHCS
x2x2
