Associated Electrics RC10 B6.4D TEAM KIT - Page 14

14

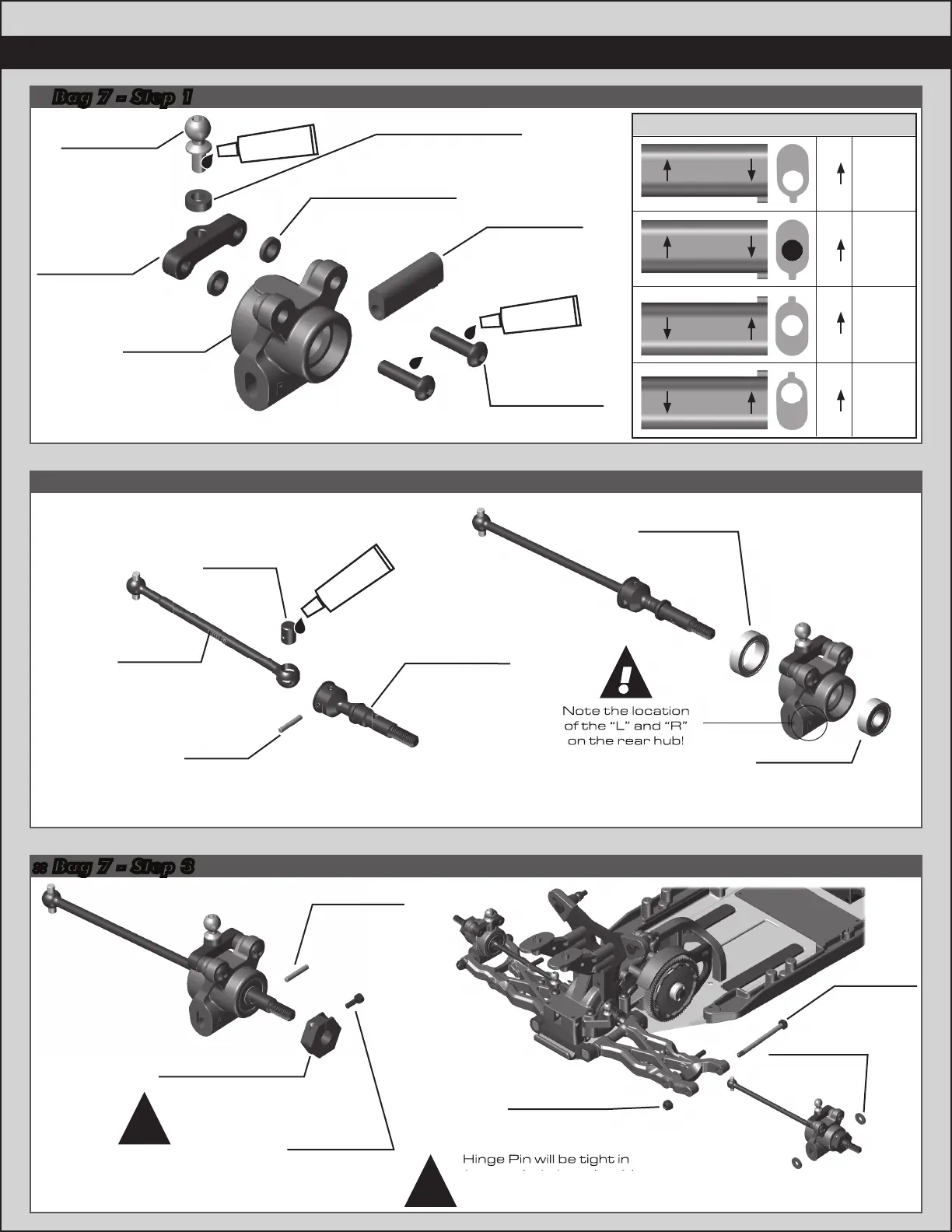

:: Bag 7 - Step 3
:: :: BagBag 7 - Step 2 7 - Step 2
:: :: Bag 7 - Step 1
Build x2 (right and left side)Build x2 (right and left side)
91611
M1.6 x 5mm
SHCS
91463
CVA Wheel
Hex Pin
91609
Clamping Wheel
Hex, 5mm Offset
(rear)
Do not overtighten the
1.6 x 5mm SHCS into the
Clamping wheel hex.
!
Hinge Pin will be tight in
the rear hub, but should
rotate freely
in the rear arms.
Note the location
of the “L” and “R”
on the rear hub!
!
!
Build x2 (right and left side)Build x2
#6588
black grease
Note the location
of the “L” and “R”
on the rear hub!
!
91563
10 x 15 x 4
Bearing
91567
5 x 12 x 4
Bearing
91859
B6.2 CVA
Axle, +2mm
91438
CVA Pin
91438
CVA
Coupler
91860
CVA Bone,
69mm
Hinge Pin will be tight in
the rear hub, but should
92179
Rear Hub
Spacer
x2x2
92188
Rear Hub
Hinge Pin
25215
M3 Locknut
Build x2 (right and left side)
89202
M3 x 12mm
BHCS
x2x2
91047
Heavy-duty
Ballstud,
6mm
92180
Rear Hub
Link Mounts
91857
B6.2 Rear
Hubs
92179
Rear Hub
Inserts
31382
Ballstud Washers,
5.5x1.0mm, blue
31383
Ballstud Washers,
5.5x2.0mm, blue
x2x2
Rear Axle Height
1
0
3
2
+3mm
+2mm
Kit
Setup
+1mm
+0mm
0
3
1
2
1
2
0
3
#1596
thread lock
#1596
thread lock
