Associated Electrics RC10 B6.4D TEAM KIT - Page 15

15

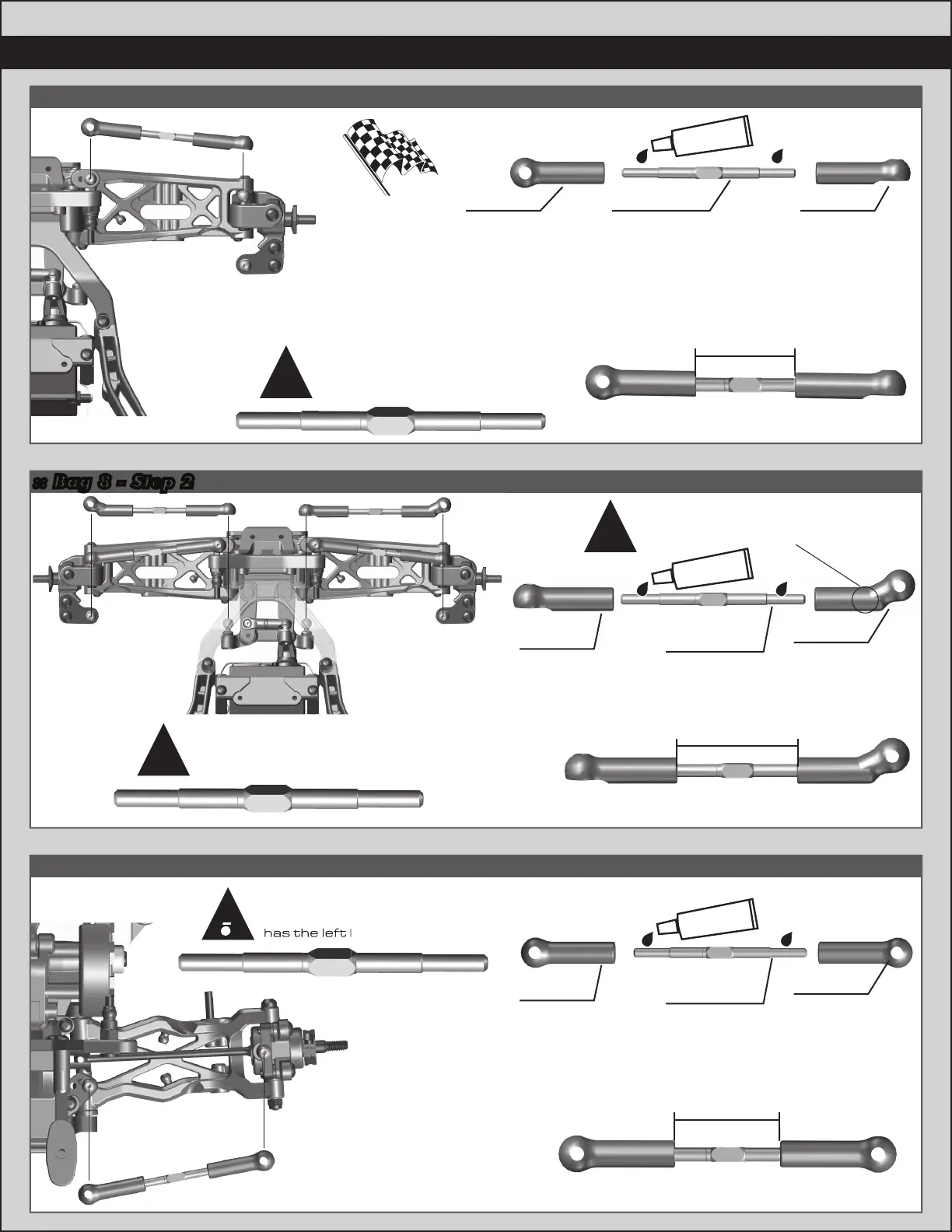

:: :: Bag 8 - Step 3Bag 8 - Step 3
:: Bag 8 - Step 2
:: :: Bag 8 - Step 1Bag 8 - Step 1
Build x2 (right and left side)
Rear Camber Turnbuckle
24.20mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
91722
Ball Cup
91722
Ball Cup
91723
Turnbuckle
3x48mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Build x2 (right and left side)
Front Camber Turnbuckle
22.50mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
91722
Ball Cup
91722
Ball Cup
91722
Ball Cup
91722
Ball Cup
91723
Turnbuckle
3x48mm
91723
Turnbuckle
3x48mm
27.90mm
Steering Turnbuckle
Build x2 (right and left side)
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
has the left hand threads!
!
#6588
black grease
Letter L/R on plastic will be
reversed when installed,
follow the image!
!
#6588
black grease
#6588
black grease
