Associated Electrics RC10 B6.4D TEAM KIT - Page 16

16

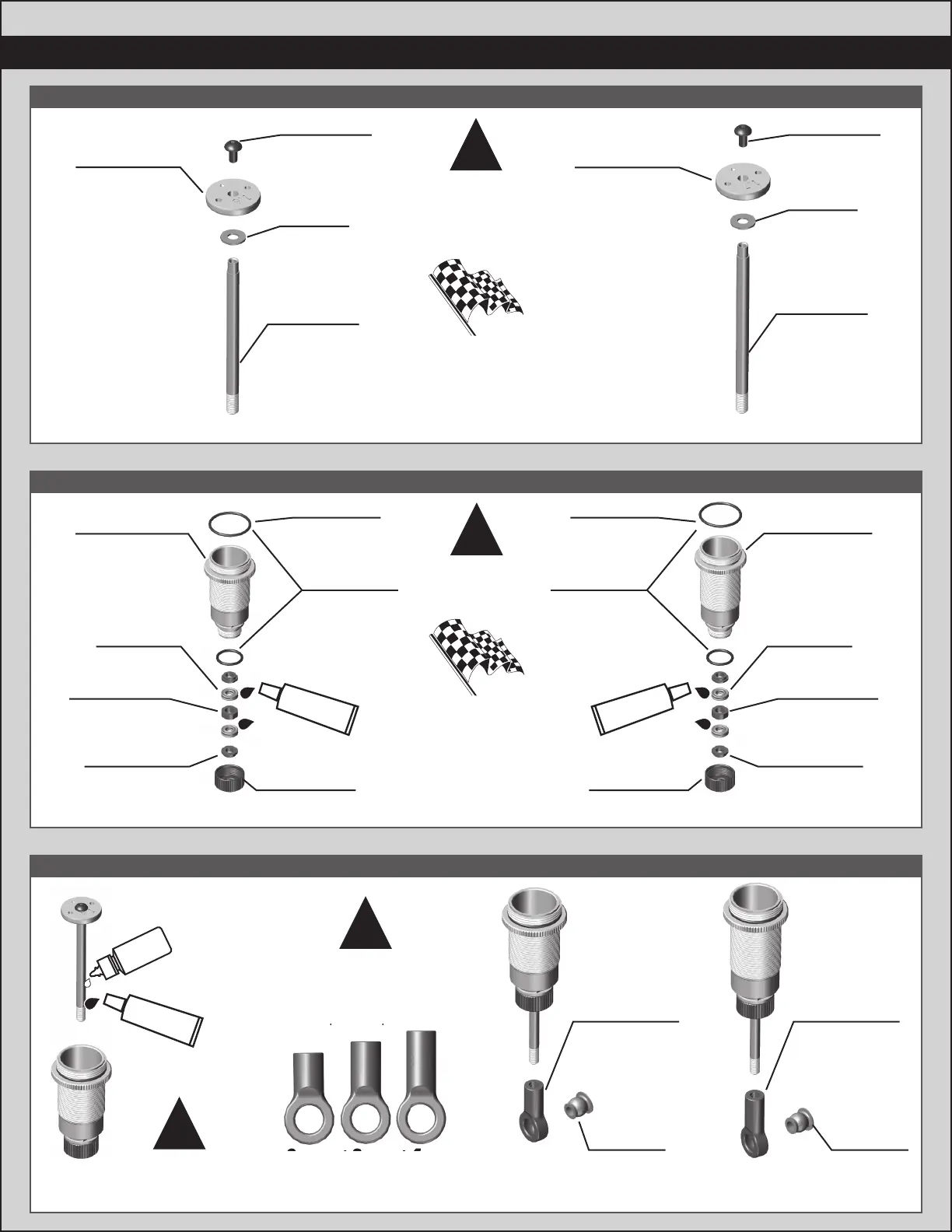

:: :: Bag 9 - Step 3Bag 9 - Step 3
:: :: Bag 9 - Step 2Bag 9 - Step 2
:: :: Bag 9 - Step 1Bag 9 - Step 1
Build x2 front shocks
Build x2 front shocks
Build x2 front shocks
Build x2 rear shocks
Build x2 rear shocks
Build x2 rear shocks
Racers Tip:
Use a marker over
the numbers on the
pistons to make
them easily visible!
Mount the shock
pistons with the
number facing up!
!
91936
FT 13mm
Shock Piston,
2mm [2x1.6]
“front”
91937
FT 13mm
Shock Piston,
2mm [2x1.7]
“rear”
91615
V2 3 x 21
Shock Shaft
TiN “front”
31510
M2 x 4mm
BHCS
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN “rear”
Lightly rub shock oil
on the O-ring before
installation!
Racers Tip:
Coating the O-rings
with green slime
(#1105) helps seal
& reduce O-ring
swell! Green slime
not included in kit!
!
91920
13x23mm
Shock Bodies
“front”
91922
13x27.5mm
Shock Bodies
“rear”
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Spacer
91996
13mm Shock
Spacer
91493
X-Ring
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
91996
13mm
Shock Cap
O-Ring
91996
13mm
Shock Cap
O-Ring
x2x2 x2x2
x2x2 x2x2
#1105
green slime
#1105
green slime
Shock fluid
There are 3 lengths of
shock eyelet in the kit.
Pay attention to length when
building as these affect your
droop and uptravel.
Lightly rub shock
fluid or green
slime on threads
!
!
#1105
green slime
91997
Shock Eyelets
Front Shocks
+2mm
91997
Shock Eyelets
Rear Shocks
+4mm
91819
Shock
Pivot Ball
91819
Shock
Pivot Ball
0mm +2mm +4mm
droop and uptravel.
0mm
+2mm
+4mm
+2
+4
0
