Associated Electrics RC10 B7 TEAM KIT - Page 6

6

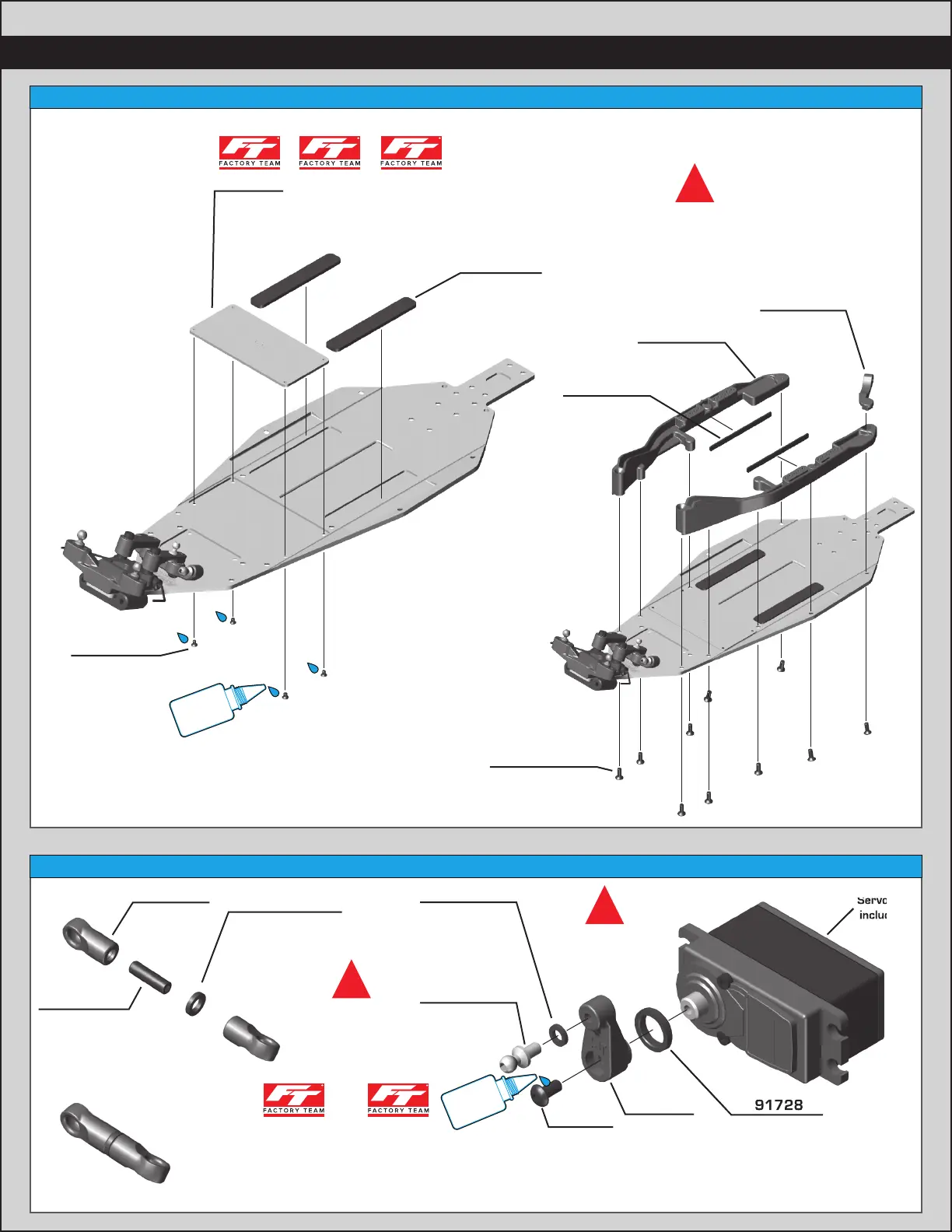

:: :: Bag 2 -Bag 2 - Step 2 Step 2
:: :: Bag 2 -Bag 2 - Step 3 Step 3
81258
M3x12mm
Set Screw
92419
Steering
Link
31382
FT Ballstud
Washer, Aluminum
(1mm)
Tighten the steering
link ball cups all the
way until snug.
x2x2
23T: Sanwa/ KO/ JR / Spektrum
24T: Hitec
25T: Reedy/ Futaba/Savox /ProTek / MKS
91728
Servo Horn
Ring
Servo not
included!
x4x4
91749
M2 x 3mm
FHCS
91977
FT B6.4
Steel, 33g
91975
FT B6.4
Carbon Fiber,
6.15g
91976
FT B6.4
Aluminum,
11g
91988
B6.4 Battery
Foam
x10x10
25201
M3 x 8mm
FHCS
92401
Side Rails
(L & R)
91988
B6.4 Battery
Foam
THREAD
LOCK
#1596
91728
Servo not
included!
31284
8mm Ball Stud,
Long
31382
FT Ballstud
Washer,
Aluminum
(1mm)
31531
M3 x 6mm
BHCS
91728
Servo
Horn,
15.5mm
1369
FT Aluminum
Clamping Servo
Horn, 23T
15.5mm
1370
FT Aluminum
Clamping Servo
Horn, 25T
15.5mm
!
91978
Fan Mount
THREAD
LOCK
#1596
Center the servo horn
on the servo.
!
#91988 Battery Foamis only
needed if your battery is too
short to fi t between the side rails.
!
