:: :: Bag 1 -Bag 1 - Step 2 Step 2
:: :: Bag 1 -Bag 1 - Step 3 Step 3 :: :: Bag 2 -Bag 2 - Step 1 Step 1
5
:: :: Bag 1 -Bag 1 - Step 1 Step 1
1/24

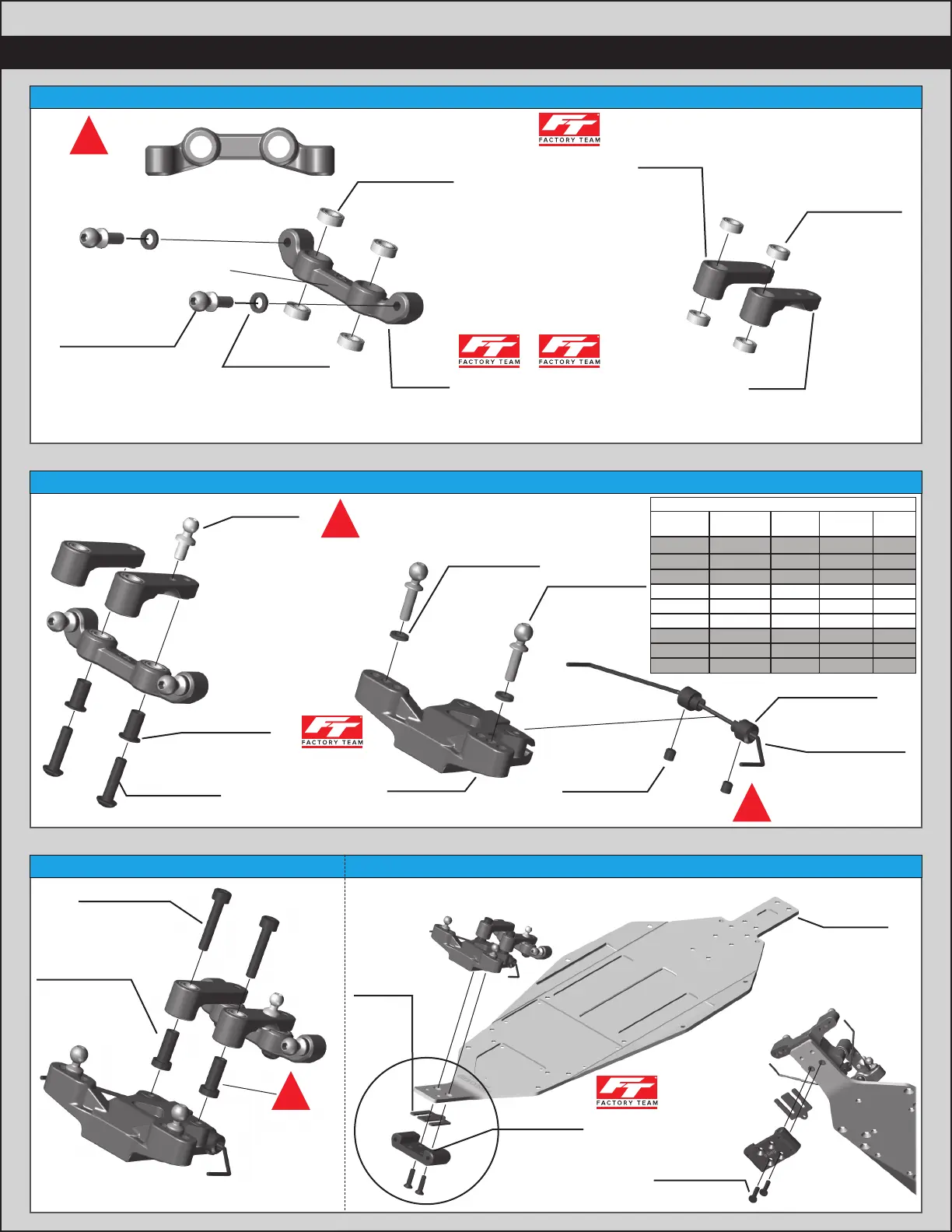

Note orientation
of steering rack
Front
TOP
91973
Steering
Bellcrank
(Left)
91973
Steering
Bellcrank
(Right)
91984
Aluminum
Steering
Rack
92489
Carbon
Steering
Rack
91983
Aluminum
Steering Bellcranks
92404
Carbon
Front Ball
Stud Mount
x2x2
91974
Steering
Hat Bushing
x2x2
89202
M3 x 12mm
BHCS
31283
5mm Ball
Stud, Long
31732
4 x 7 x 2.5
Ball Bearing
91973
Steering
Rack
x4x4
x2x2
x2x2
91048
Heavy-duty
Ballstud, 8mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
High 2.5° 0° 22.5° 25°
High 0° 2.5° 22.5° 25°
High 0° 0° 22.5° 22.5°
High -2.5° 0° 22.5° 20°
High -2.5° 2.5° 22.5° 22.5°
High -2.5° 5° 22.5° 25°
Low 2.5° 2.5° 22.5° 27.5°
Low 2.5° 5° 22.5° 30°
Low 0° 5° 22.5° 27.5°
Steering Bulkhead
Caster
Insert
Chassis
Tot al
Insert
B7 Kickup/Steering Option Chart
(Low position)
Bellcranks down,
hat side on top
(High position)
Bellcranks up, hat
side on bottom
x2x2
89208
M3 x 14mm
FHCS
92427
Bulkhead
Shim
92400
B7
Chassis
92436
FT Aluminum
Bulkhead
(0°)
92437
FT Aluminum
Bulkhead
(2.5°)
x2x2
x2x2
x2x2
91049
Heavy-duty
Ballstud,
10mm
92457
Anti-Roll
Bar Collar
92459
Front Anti-Roll
Bar, 1.0mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
92403
Front Ball
Stud Mount
x2x2
91974
Steering Hat
Bushing,
High
x2x2
89224
M3 x 16mm
SHCS
31732
4 x 7 x 2.5
Ball Bearing
x4x4
!
!
x2x2
25225
M3 x3mm
Set Screw
Front
Note:
Do not overtighten collars
on ballstud mount
Note: Orientation of set screws should face bottom.
Insert one collar and bar, then add second collar for
installation. Center the bar, do not overtighten.
!
!
