#92417 - Front Wing Mount is used as a tuning option to increase front end
stabillity by adding a front wing (included). If you do not use #92417,
use #25202 M3x10mm FHCS instead of #25203 M3x12mm FHCS.

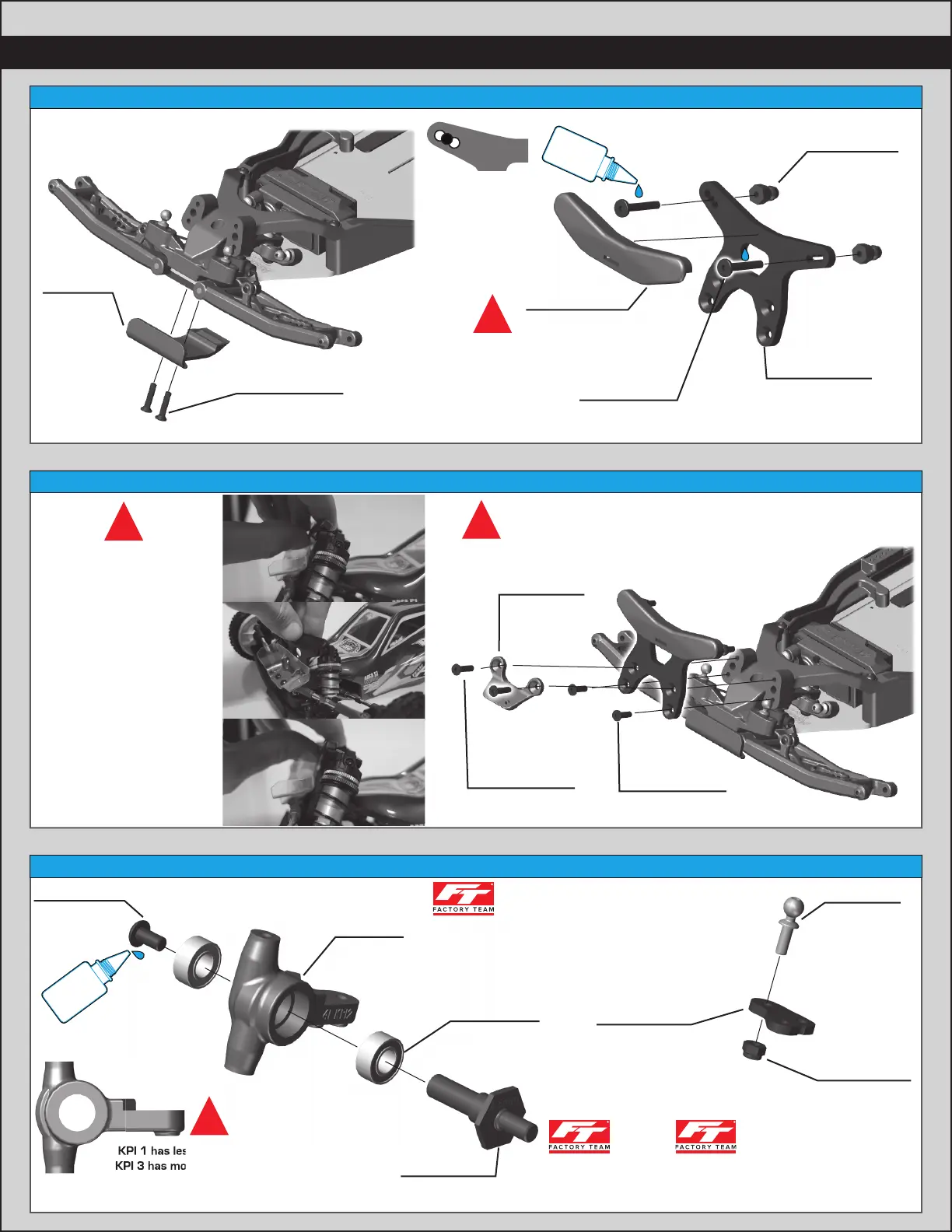

1. Line up the front tower cover
on the shock tower at an angle
as shown in the 1st image to
the right.
2. Press fi rmly down on the
center of the shock tower cover.
Be sure to keep the tower cover
centered on the tower.
3. The cover should snap into
place with the tap locking on the
back side of the tower.
NOTE: The tower cover was
designed to key into place with
the supplied LP SHCS. Use
of another screw type is not
recommended.
25215
M3 Locknut,
black
71144
Steering Block
Arm, +1mm
91048
Heavy-duty
Ballstud,
8mm
Build 2 (1 left, 1 right)
x2x2
31531
M3 x 6mm
BHCS
91560
5 x 10 x 4
Bearing
92462
Front Axle,
6.5mm
91683
FT Titanium
Front Axle
71181
FT Hex Adapter
Front Axles
92414
Steering
Block, KPI 2
92415
Carbon
Steering Block,
KPI 2
KPI 1 has less direct steering feel
KPI 3 has most direct steering feel
KPI 1 has less direct steering feel
KPI 1 has less direct steering feel
KPI 3 has most direct steering feel
4L - 1
89208
M3 x 14mm
FHCS
92427
Front
Bumper
x2x2
41091
M3 x 20mm
LP SHCS
92443
Shock
Bushing,
8mm
92430
Front Shock
Tower, B7
92426
Front Shock
Tower Cover
x2x2
x2x2
25202
M3 x 10mm
FHCS
25203
M3 x 12mm
FHCS
92417
Wing Mount,
Front
x2x2
x2x2
!
THREAD
LOCK
#1596
THREAD
LOCK
#1596
33
22
11
See installation notes
in next step!
!
