9

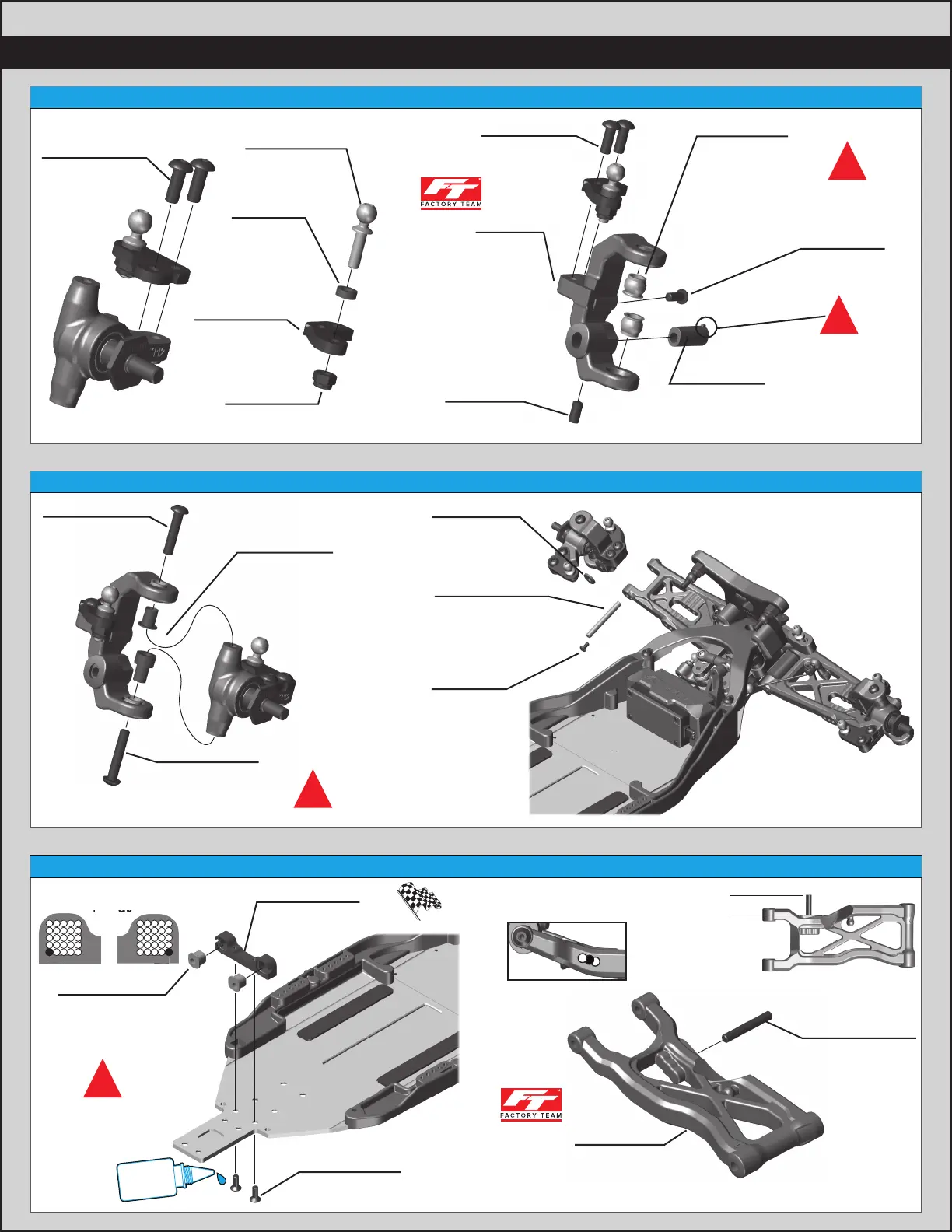

:: :: Bag 3 -Bag 3 - Step 2 Step 2
:: :: Bag 3 -Bag 3 - Step 3 Step 3
:: :: Bag 4 -Bag 4 - Step 1 Step 1
x2x2
x2x2
!
!
Build 2 (1 left, 1 right)
91049
Heavy-duty
Ballstud, 10mm
25215
M3 Locknut,
black
92467
Caster Block
Link Mount, 0
92416
Caster Block
Insert
(-2.5°)
92442
Caster Block
Pivot Balls
There are three caster block
inserts included
(0°, +/- 2.5 °, +/- 5 °).
+2.5 ° is the standard
insert used.
Tab up = adds caster
Tab down = removes caster
Steering stop screw.
Set fl ush with caster
block to start.
92414
Caster
Block
92415
Carbon
Caster
Block
31532
M3 x 8mm
BHCS
31532
M3 x 8mm
BHCS
81267
M3 x 6mm
Set Screw
Build 2 (1 left, 1 right)
92408
B7
Rear Arms
92406
B7
Carbon
Rear Arms
x2x2
x2x2
91737
M3 x 20mm
Set Screw
You can use a dot of CA glue to better secure
the lower shock mounting set screw
11mm
See next step
for pill chart
tips
92014
Arm Mount
Inserts
(1°)
x2x2
92432
Aluminum
Arm Mount, C
25201
M3 x 8mm
FHCS
x2x2
!
!
Build 2 (1 left, 1 right)Build 2 (1 left, 1 right)
#92496 - Hinge Pin will be tight
in the caster blocks, but should
rotate freely
in the front arms.
25187
M3 x 14mm
BHCS
89203
M3 x 16mm
BHCS
91676
Caster Hat
Bushing
Top: 0mm
Bottom: 3mm
x2x2
31510
M2 x 4mm
BHCS
92416
Caster Block
Shim
92496
Front Hinge Pin
(Outer, 3x26mm)
THREAD
LOCK
#1596
31383
FT Ballstud
Washer,
Aluminum
(2mm)
31520
M2.5 x 6mm
BHCS
Arm Mount C:
1° Out
BC
A
To Next Page
