15

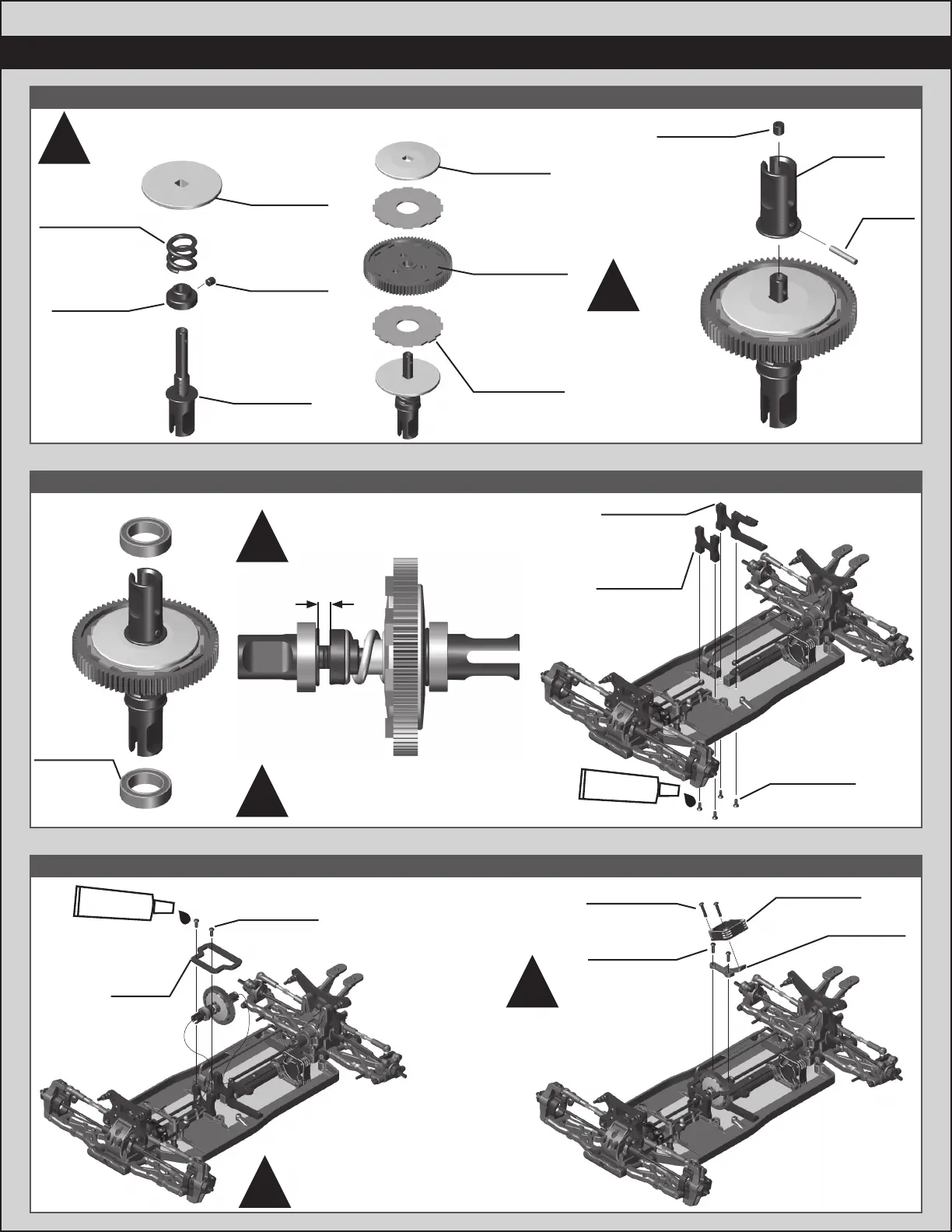

:: :: Bag 10 -Bag 10 - Step 1 Step 1
:: :: Bag 10 -Bag 10 - Step 2 Step 2
:: :: Bag 10 -Bag 10 - Step 3 Step 3
Install the front bone fi rst. When
assembled users need to shift the
steering linkage to clear the ballcup
Upper fan mount optional.
If not used, x2 M3x8mm BHCS are
included for use on the top plate
!
!
92238
Center
bulkhead
brace
x2x231532
M3x8mm
BHCS
#1596
thread lock
92237
Center
bulkhead
92235
Motor
mount
x4x425201
3x8mm
FHCS
Fan
not included
92312
Fan mount,
upper
#1596
thread lock
We recommend you dis-assemble
and wipe the pads off on a clean
towel after break in runs
(1 track day).
Range of adjustment is 2.1mm to
3.3mm gap. Start at 2.1mm
Screw set screw in 1/2 of
the depth, use it to lock nut
into fi nal setting.
Tall side of spur gear
goes towards spring
!
!
!
!
2.1mm
91436
CVA
Pins
92275
Slipper
outdrive
25225
M3x3mm
set screw
92275
B74.1
slipper nut
92276
B74.1 slipper
spring, 500lb/in
25225
M3x3mm
set screw
92278
B74.1 slipper
hub, front
92279
B74.1 slipper
hub, rear
92285
Octalock LCF
slipper pad
(11mm)
92295
Octalock Spur
Gear, 78T - 48P
92275
B74.1
slipper shaft
x2x2
x2x2
x2x2
x2x2
91563
M10x15x4
bearing
25187
M3x14mm
BHCS
25211
M3x10mm
BHCS
To Next Page
