Associated Electrics RC10 B74.2D TEAM KIT - Page 14

14

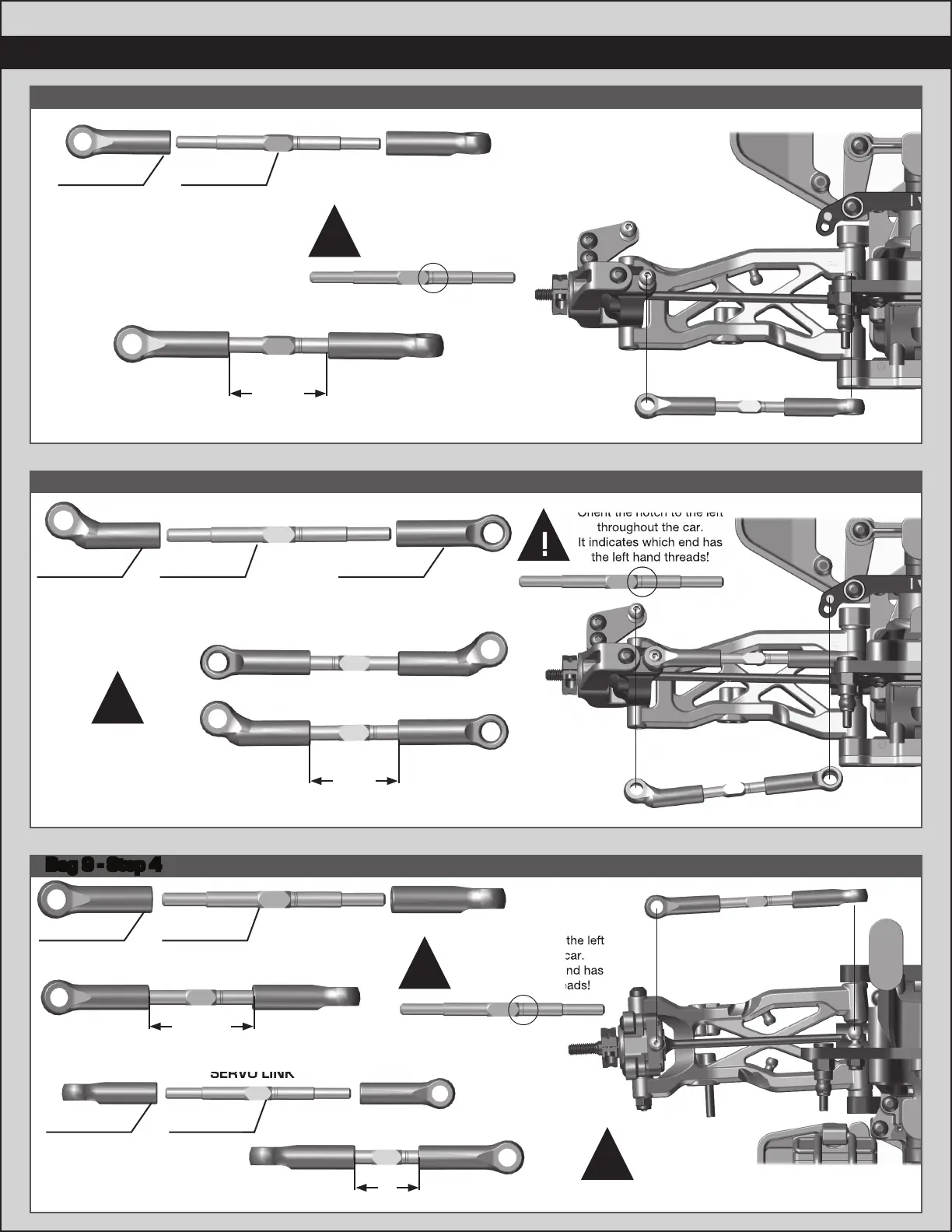

:: :: Bag 9 -Bag 9 - Step 2 Step 2
:: :: Bag 9 -Bag 9 - Step 3 Step 3
:: :: Bag 9 - Step 4
Orient the notch to the left
throughout the car.
It indicates which end has
the left hand threads!
!
Orient the notch to the left
throughout the car.
It indicates which end has
the left hand threads!
!
Orient the notch to the left
throughout the car.
It indicates which end has
the left hand threads!
!
Orient the notch to the left
throughout the car.
It indicates which end has
the left hand threads!
!
Orient the notch to the left
throughout the car.
It indicates which end has
the left hand threads!
x2x292308
Ballcup,
straight
92308
Ballcup,
Offset
92308
Ballcup,
straight
92335
3.5x42mm
turnbuckle
92335
3.5x42mm
turnbuckle
Build x2 (1 left side, 1 right side)
Left
Right
Build x2 (1 left side, 1 right side)
22.5mm
20.8mm
x2x292308
Ballcup,
straight
92336
3.5x45mm
turnbuckle
Build x2 (1 left side, 1 right side)
24.2mm
There is two offset ballcups
labeled “1” and “2”.
The ballcup labeled “1” goes
on the left side of the car.
!
SERVO LINK
SERVO LINK
x2x292308
Ballcup,
straight
92333
3.5x35mm
turnbuckle
Set this aside for installation
when you install the servo!
!
15mm
