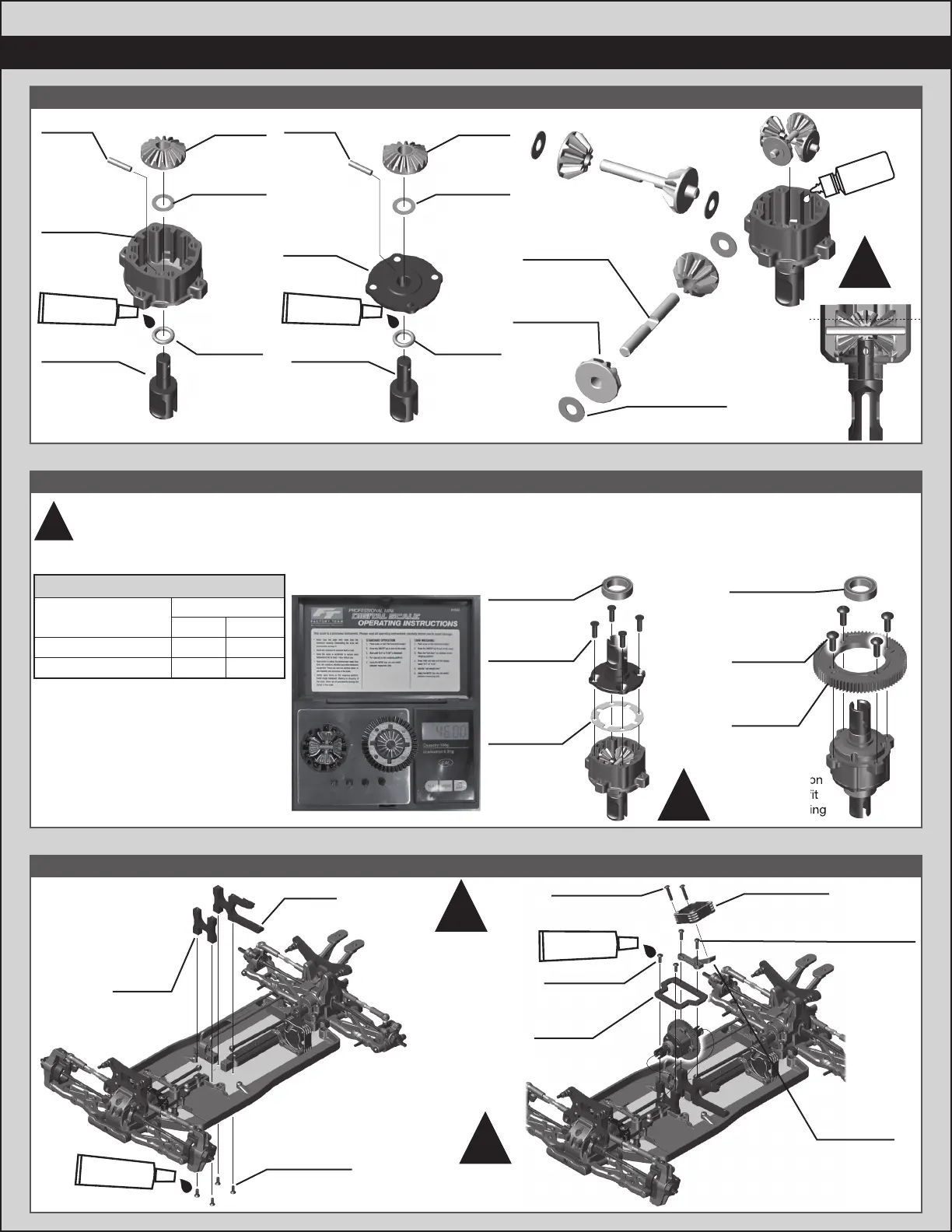

:: :: Bag 10 -Bag 10 - Step 1 Step 1
:: :: Bag 10 -Bag 10 - Step 2 Step 2
:: :: Bag 10 -Bag 10 - Step 3 Step 3
Install the front bone fi rst.
When assembled users
need to shift the steering
linkage to clear the ballcup
Upper fan mount optional.
If not used, x2 M3x8mm BHCS are
included for use on the top plate
!
!
92238
Center
bulkhead
brace
x2x231532
M3x8mm
BHCS
#1596
thread lock
92237
Center
bulkhead
92235
Motor
mount
x4x425201
3x8mm
FHCS
Fan
not included
92312
Fan mount,
upper
#1596
thread lock
x2x2
x2x2
25187
M3x14mm
BHCS
25211
M3x10mm
BHCS
Spur gear direction
has a cutout to fi t
over the diff housing
!
Fill diffs to this level
!
x4x4
x4x4
31472
2.5x8mm
FHCS
31532
3x8mm
BHCS
92149
Spur gear,
48P, 78T
92133
Diff gasket
!
It is important that the correct amount of fl uid is added to the diff. Too much fl uid may cause the diff to fail.
Fill diffs to the reference line shown below. A more accurate method is to use a digital scale (AE#1522) to make
sure the correct amount of fl uid is added on the fi rst build, and subsequent rebuilds. The entire diff
assembly should weigh 43.75g when built. Start by placing the ring gear assembly, screws, and cup
assembly (without fl uid) onto the scale. Then slowly add fl uid to the cup assembly until the overall mass is 43.75g.
92292
Diff pin
92292
Diff pin
92306
Diff sun
gear, LTC
92306
Diff sun
gear, LTC
91563
10x15x4mm
bearing
91563
10x15x4mm
bearing
92306
5x8x0.2mm
shim
92306
5x8x0.2mm
shim
92145
Diff case,
center
92146
Diff cap,
center
92133
Diff o-ring
92133
Diff o-ring
92147
Diff outdrive,
center
92147
Diff outdrive,
center
#6588
black grease
#6588
black grease
Diff fluid
#5455 200k
B74 Diff Weights (minus bearings)
Metal
Weight (grams)
Plastic
F/R Differential
Center Differential
45.25 36
43.75 34.5
x2x2
x4x4
x4x4
92138
Diff cross
pin
92306
2.55x6.0x0.15
shim
92306
Diff planet
gear, LTC
