Associated Electrics RC10 B74.2D TEAM KIT - Page 20

20

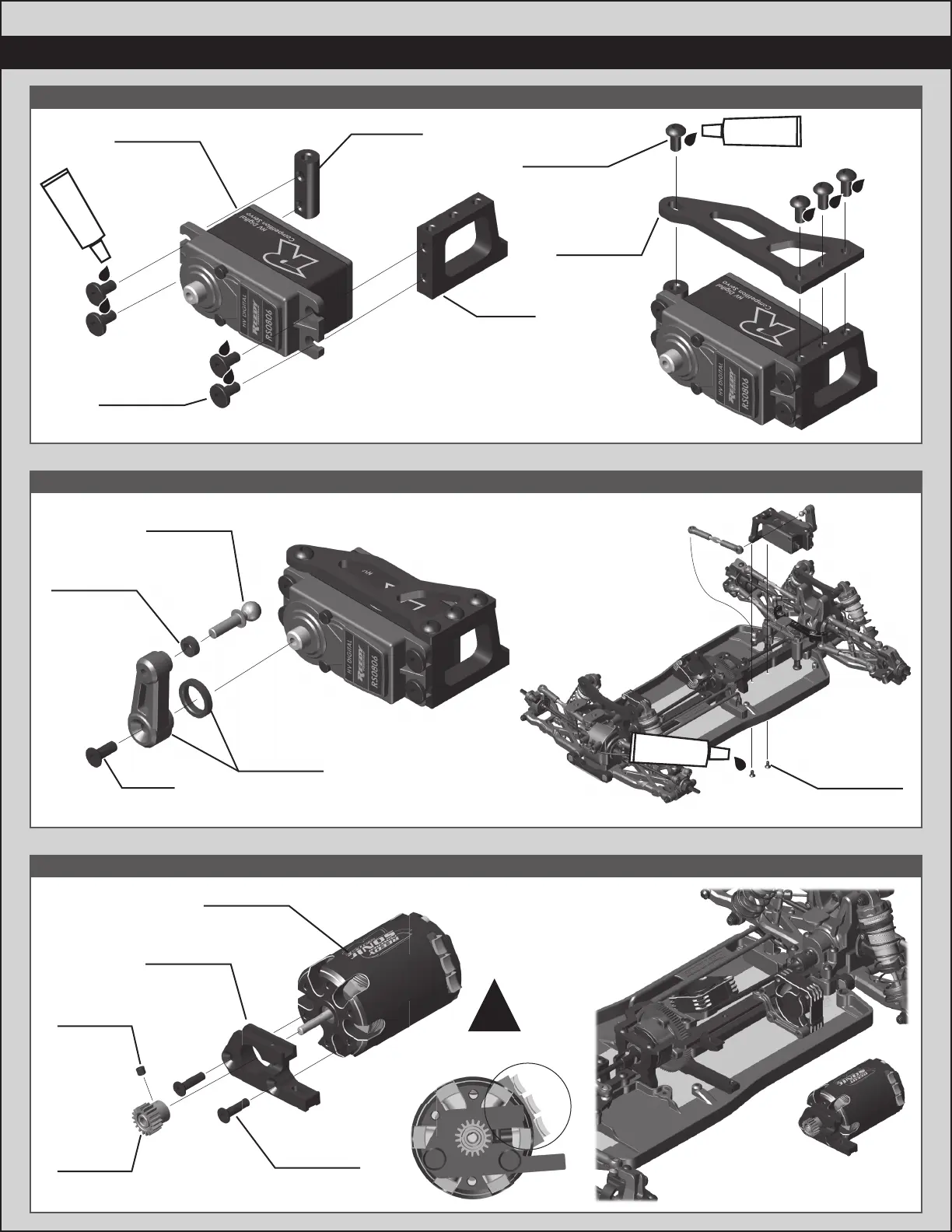

:: :: Bag 13 -Bag 13 - Step 2 Step 2
:: :: Bag 13 -Bag 13 - Step 3 Step 3
:: :: Bag 13 -Bag 13 - Step 4 Step 4
Align the motors solder
tabs to the side as shown!
!
x2x2
92236
Motor
mount slide
31500
M3x2.5mm
set screw
(Not included)
Pinion
(Not included)
25203
M3x12mm
FHCS
Motor
(Not included)
x4x431531
M3x6mm
BHCS
92240
Servo mount
brace
#1596
thread lock
92274
Servo
mount
31805
Outer servo
mount
x4x441089
M3x6mm
LP SHCS
Servo
(Not included)
#1596
thread lock
91049
10mm
ballstud
31383
2mm
washer
25201
M3x8mm
FHCS
92247
Servo horn
and ring,
20mm
x2x231541
M3x6mm
FHCS
#1596
thread lock
