Associated Electrics RC10 B74.2D TEAM KIT - Differential Assembly; Bag 3 Differential Build

x0x000000
0x0mm
XXXXX
!
7
:: :: Bag 3 -Bag 3 - Step 1 Step 1
:: :: Bag 3 -Bag 3 - Step 2 Step 2
:: :: Bag 3 -Bag 3 - Step 3 Step 3

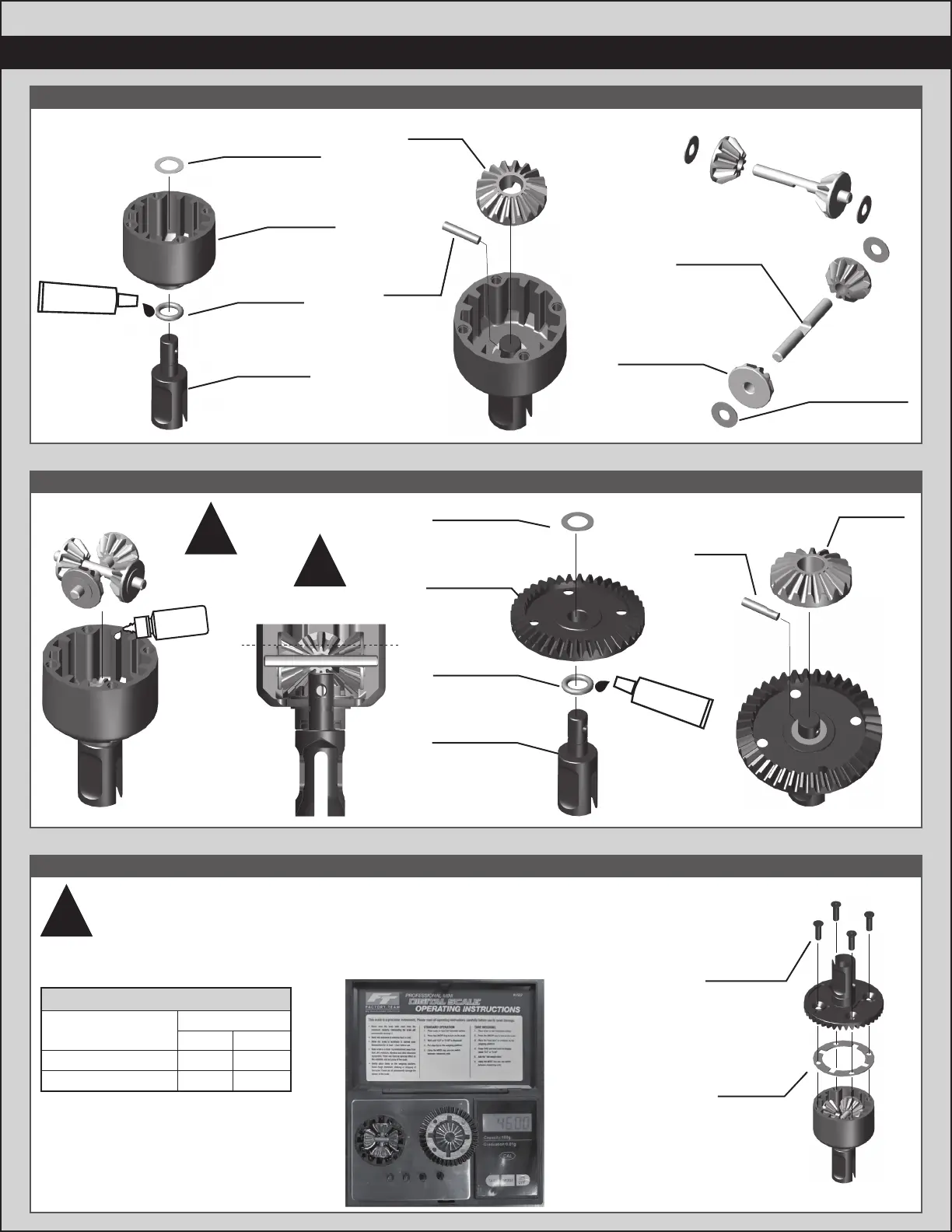

Fill diffs to this level
!
!
It is important that the correct amount of fl uid is added to the diff. Too much fl uid may cause the diff to fail.
Fill diffs to the reference line shown above. A more accurate method is to use a digital scale (AE#1522) to make
sure the correct amount of fl uid is added on the fi rst build, and subsequent rebuilds. The entire diff assembly
should weigh 45.25g when built. Start by placing the ring gear assembly, screws, and cup assembly
(without fl uid) onto the scale. Then slowly add fl uid to the cup assembly until the overall mass is 45.25g.
B74 Diff Weights (minus bearings)
Metal
Weight (grams)
Plastic
F/R Differential
Center Differential
45.25 36
43.75 34.5
92306
Diff sun
gear, LTC
92138
Diff pin
x4x431472
M2.5x8mm
FHCS
92133
Diff gasket
Build x2 (1 front, 1 rear)
x2x2
x4x4
x4x4
92138
Diff cross
pin
92306
2.55x6.0x0.15
shim
92306
Diff planet
gear, LTC
Build x2 (1 front, 1 rear)
92138
Diff pin
92306
Diff sun
gear, LTC
92135
Diff case,
front/rear
92133
Diff o-ring
92262
Diff outdrive
#6588
black grease
92306
5x8.5x0.2mm
shim
Diff fluid
#5455 10k
92306
5x8.5x0.2mm
shim
92140
Diff ring
gear
92133
Diff o-ring
92262
Diff outdrive
#6588
black grease
Diff fl uids found in
fl uids bag
!
