Associated Electrics RC10 B74.2D TEAM KIT - Page 8

8

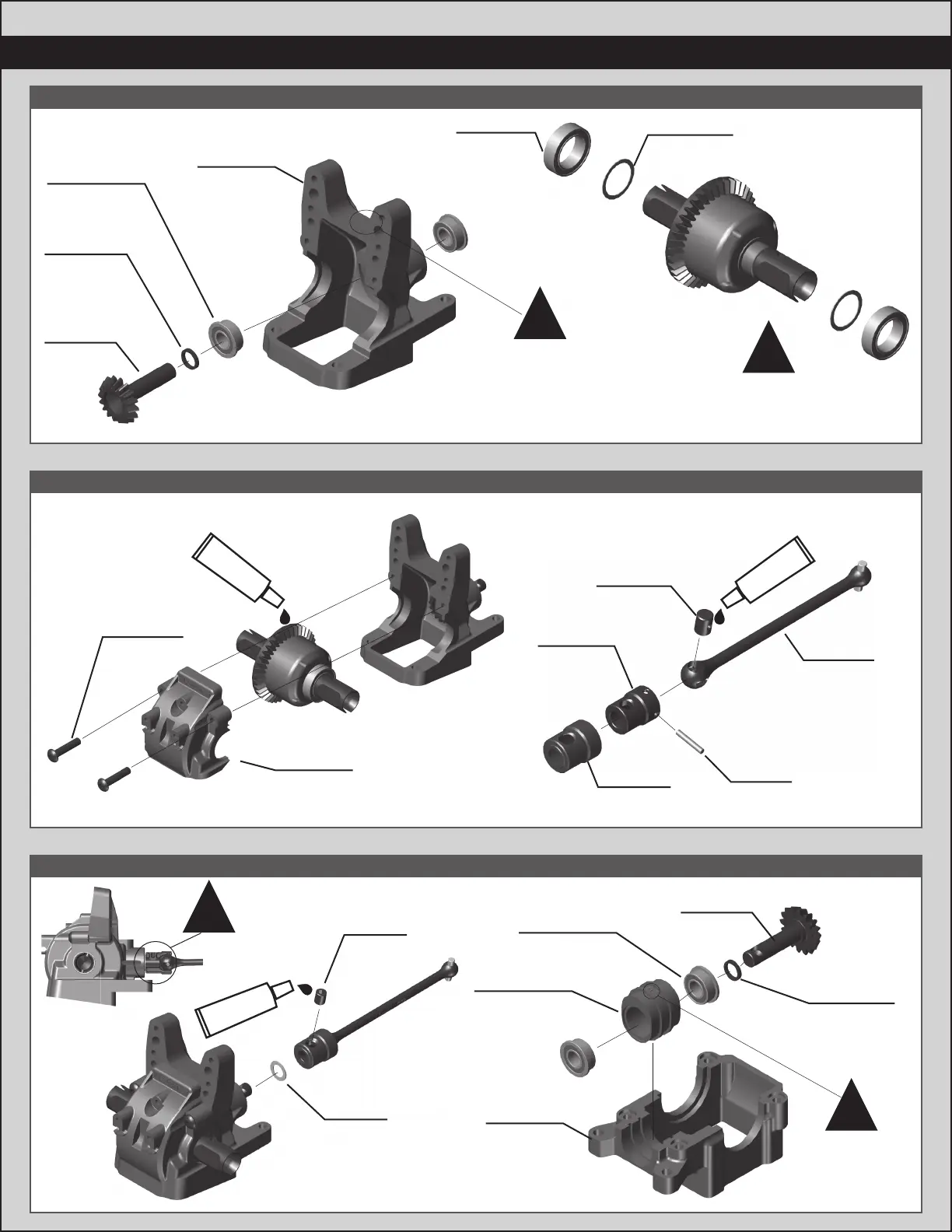

:: :: Bag 4 -Bag 4 - Step 1 Step 1
:: :: Bag 4 -Bag 4 - Step 2 Step 2
:: :: Bag 4 -Bag 4 - Step 3 Step 3
Build rear gearbox
Build front gearbox
x2x2
x2x2
x2x2
92324
M5x10x4
flanged bearing
92324
M5x10x4
flanged bearing
92311
B74.2 rear
gearbox pinion
height insert,
0 and 3
92309
B74.2 front
gearbox,
inboard, 0
92309
B74.2 front
gearbox,
outboard, 0
92142
Diff pinion
gear
92142
Diff pinion
gear
92319
Diff pinion
gear shim,
M5x6.5x1mm
Start by shimming the diff with one shim on either
side of the diff. If the diff is tight when inserted into
the gearbox, remove one shim from the ring gear
side and add it to the diff case side.
!
x2x2
x2x2
91563
M10x15x4
bearing
92139
Diff shim
#6588
black grease
x2x225187
M3x14mm
BHCS
92264
CVA cup,
center
92215
CVA input
coupler,
center
91438
CVA barrel
91436
Pin
92218
CVA bone,
64mm
#6588
black grease
Align the set
screw with cross
hole as shown.
!
25226
M4x5mm
set screw
92143
Shim
#1596
thread lock
92310
B74.2 rear
gearbox,
bottom
92319
Diff pinion
gear shim,
M5x6.5x1mm
Number shown on top
of the insert after
insertion should match
the diff height desired.
Kit setup: “0”
!
0 & 2 are included in kit.
“0” gearbox for front,
“2” height is optional.
!
