0

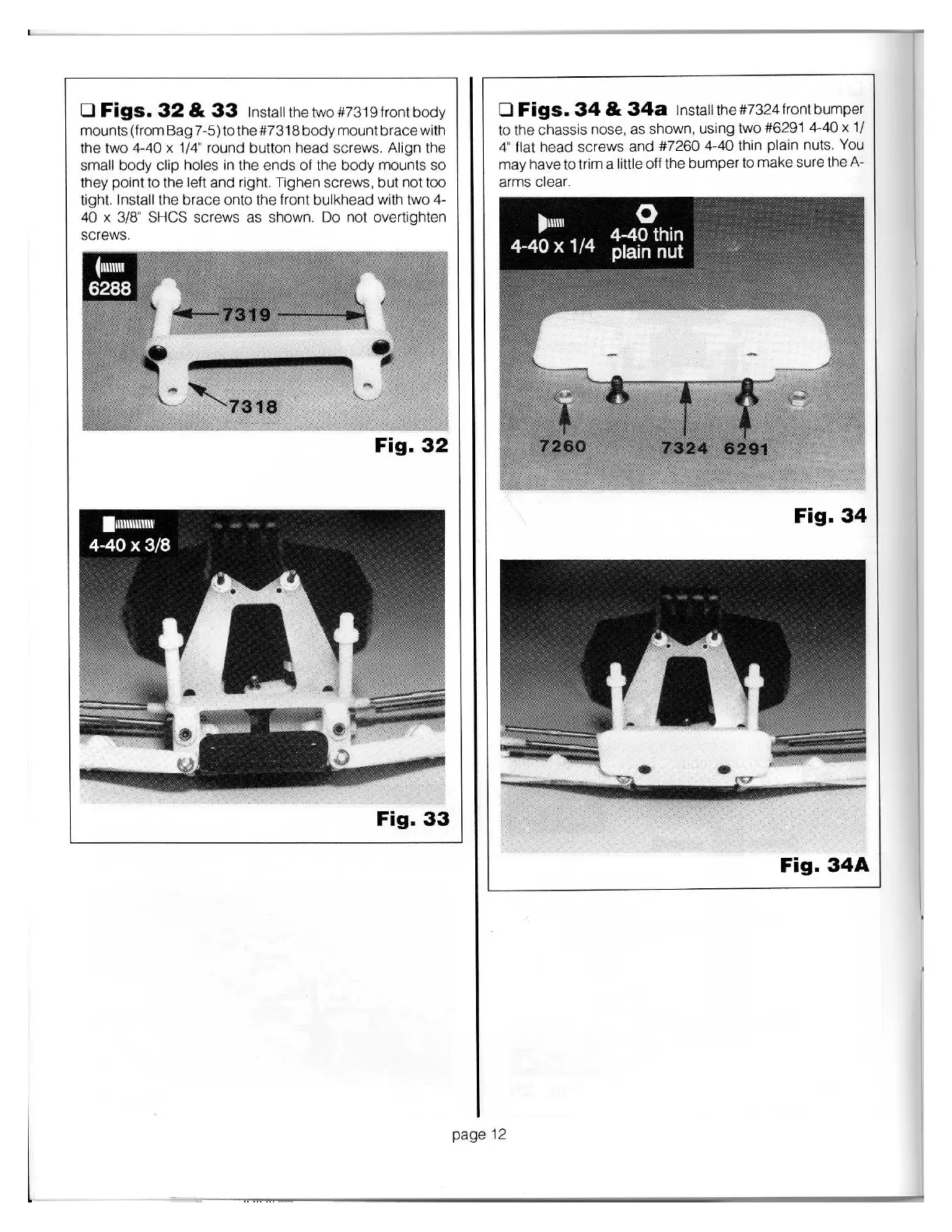

Figs.
32
&
33
Install
the two #7319 front
body
mounts (from Bag 7-5) to the #7318
body
mount brace with
the two
4-40
x
1/4"
round button head screws.
Align
the
small body
clip holes
in the ends of the
body
mounts so
they point to the left
and right. Tighen screws, but not too
tight.
Install
the brace onto the front
bulkhead
with two 4-
40
x
3/8" SHCS
screws as shown.
Do
not overtighten
screws.
Fig.
32
Fi
g.
33
0
Figs.
34
&
34a
lnstall the#7324frontbumper
to the chassis nose, as shown, using two #6291
4-40
x 1/
4"
flat
head screws and
#7260 4-40
thin
plain
nuts.
You
may
have to trim a
little off the bumper to make sure the A-
arms
clear.
Fig.
34A
page
12
