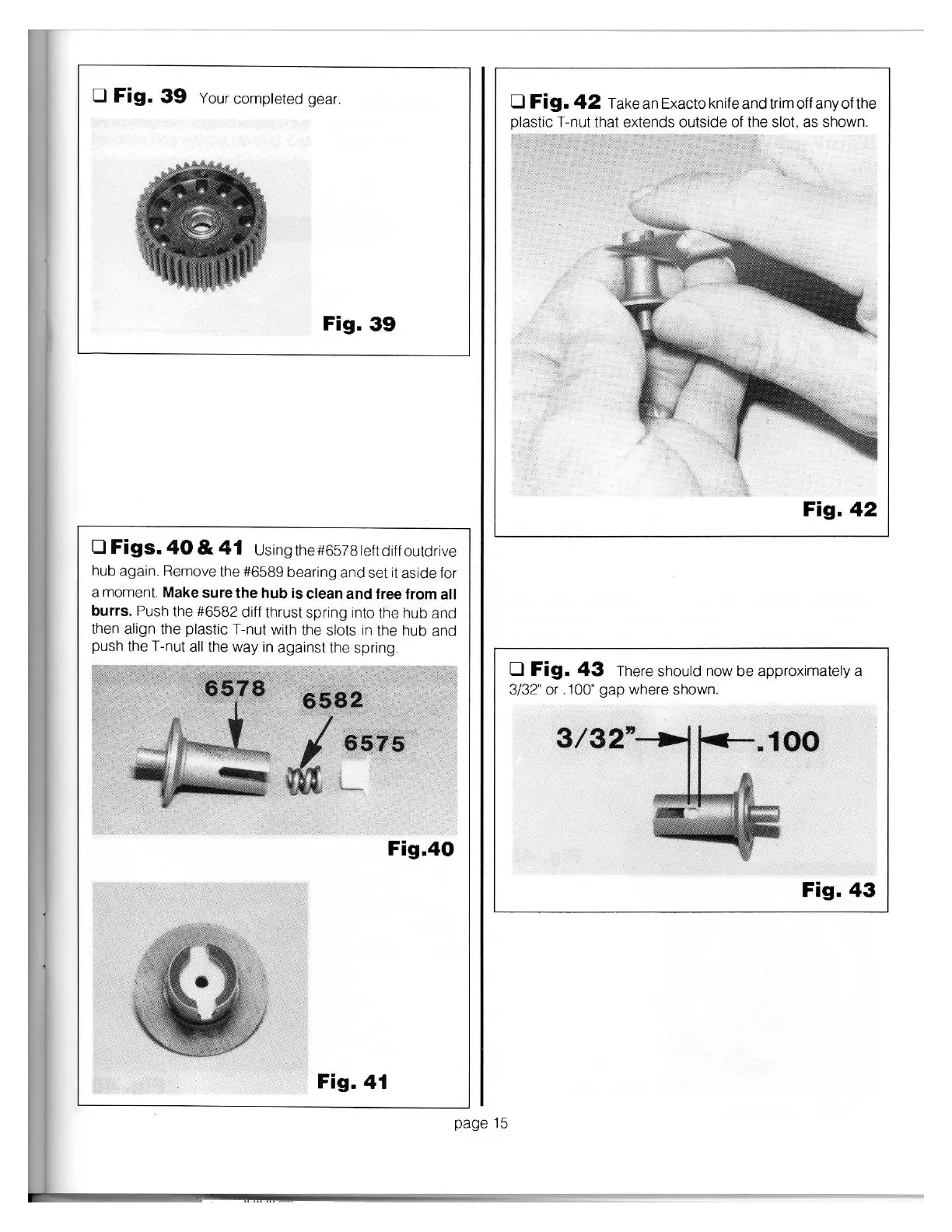

0 Fig. 39 Your completed gear.
Fig. 39
0 Figs. 40 & 41 U singt he#65781eftdiffoutdrive
hub
aga in. Remove the #6589 bearing and set it aside tor
a moment.
Make sure the hub is clean and free from all
burrs. Push the #6582 diff thrust spring into the hub and
then al ign the plastic T-nut with the slots in the hub and
push the T-nut all the way
in against the spring.
6578
6582
,~ ~75
Fig.40
Fig. 41
page 15
0 Fig. 42 T akeanExactok nif ea ndtrim offa n yo ft he
plast
ic T-nut that extends outside of the slot, as shown.
Fig. 42
0 Fig. 43 There should now be approximately a
3/32" or . 1 00"
gap where shown.
Fig. 43
