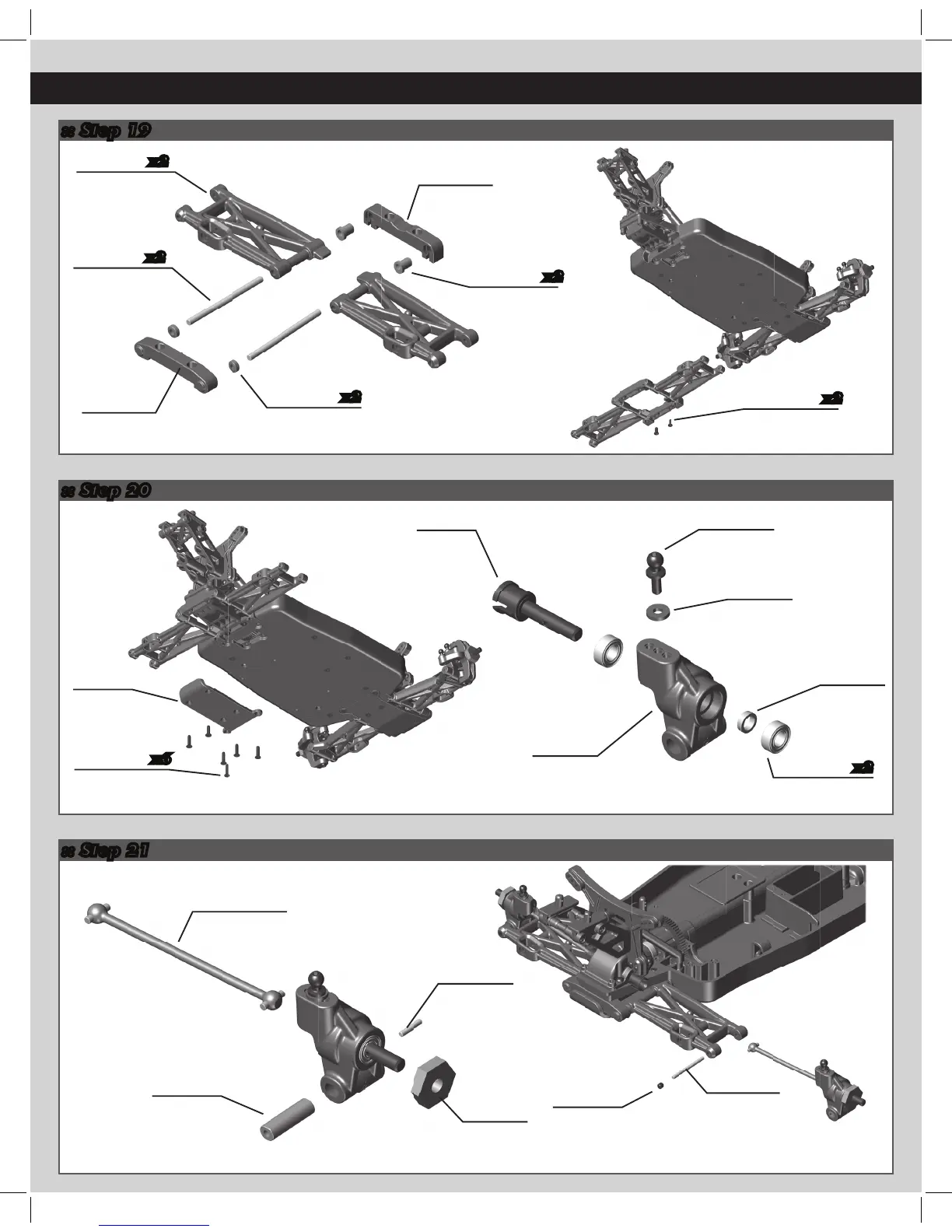

Associated Electrics Reflex 14B - Assembly: Rear Suspension Components; Step 19: Rear Arm Assembly and Attachment; Step 20: Rear Hub and Dog Bone Axle; Step 21: Rear Hub and Hinge Pin Assembly

12
:: Step 21
:: Step 20
:: Step 19
x2
x2
21502
Rear
arms
21502
Rear arm
spacers
21501
Arm
mount, D
21501
Arm
mount, C
x2
21501
Arm mount
bushing
x2
21546
M2.6x6mm
BHST
x6
21546
M2.5x10mm
FHST
21501
Skid
plate,
rear
21518
Dog
bone
axle
21507
Rear
hub,
right
21521
Crush
tube
21508
Washer,
thin
21522
Ball stud
12.5mm
x2
21512
4x8x3mm
bearing
21507
Caster
block
insert, 0
25225
M3x3mm
set screw
21508
Wheel
hex
21516
Pin
1.5 x 8mm
Build left and right sides!
21518
Rear dog
bone
x2
21511
Inner
hinge pin,
3x47mm
21511
Outer
hinge pin,
2x25mm
