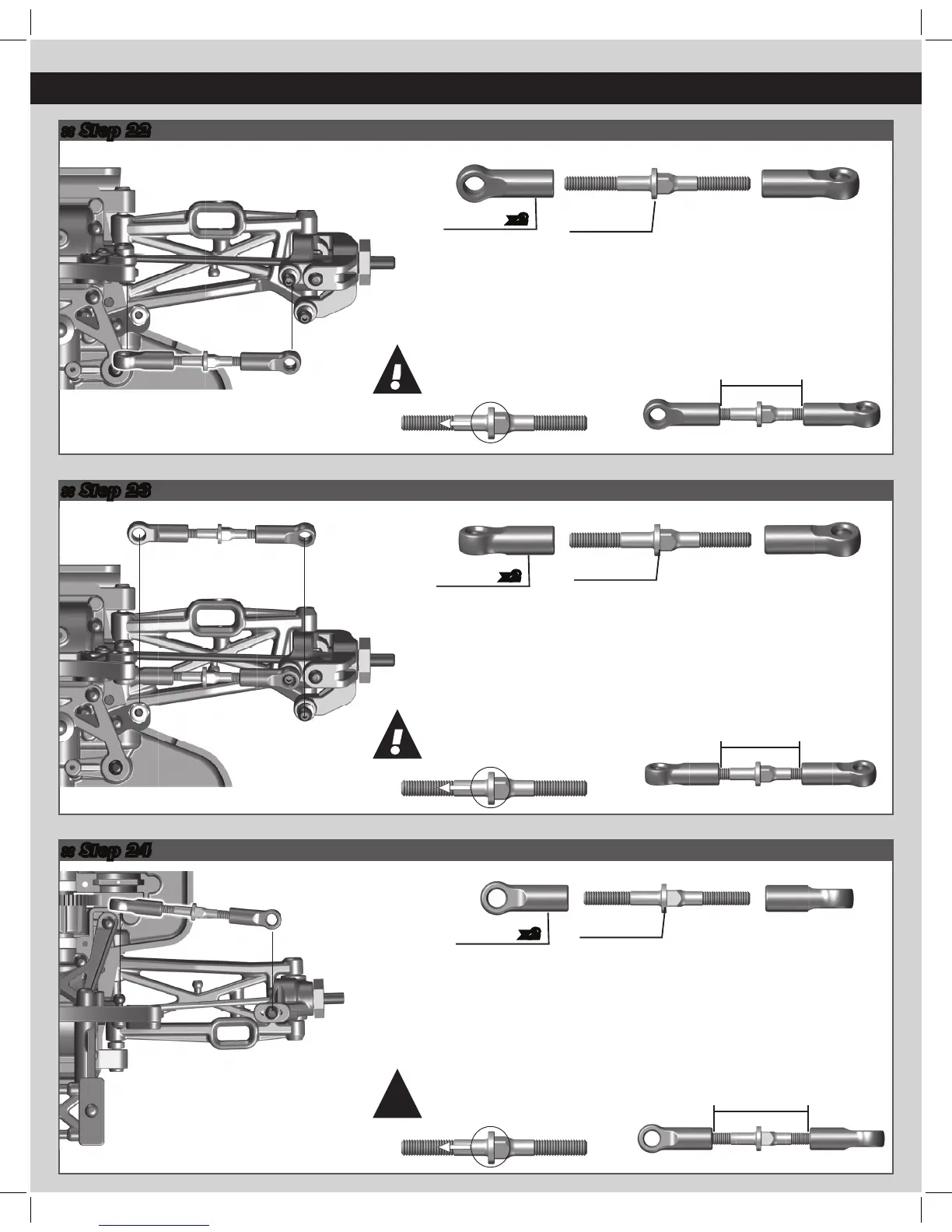

Associated Electrics Reflex 14B - Assembly: Turnbuckle Adjustments; Step 22: Front Camber Turnbuckle Setup; Step 23: Steering Turnbuckle Setup; Step 24: Rear Camber Turnbuckle Setup

13
:: Step 24
:: Step 23
:: Step 22
x2
Build x2 (right and left side)
Build x2 (right and left side)
Build x2 (right and left side)
Orient the flange
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the flange
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the flange
to the left throughout the
car. It indicates which end
has the left hand threads!
!
21513
M3x35mm
turnbuckle
21513
M3x35mm
turnbuckle
21513
M3x35mm
turnbuckle
21514
Ball Cup
19.50mm
Steering Turnbuckle
20.00mm
Front Camber Turnbuckle
23.25mm
Rear Camber Turnbuckle
!
!
x2
21514
Ball Cup
x2
21514
Ball Cup
