14

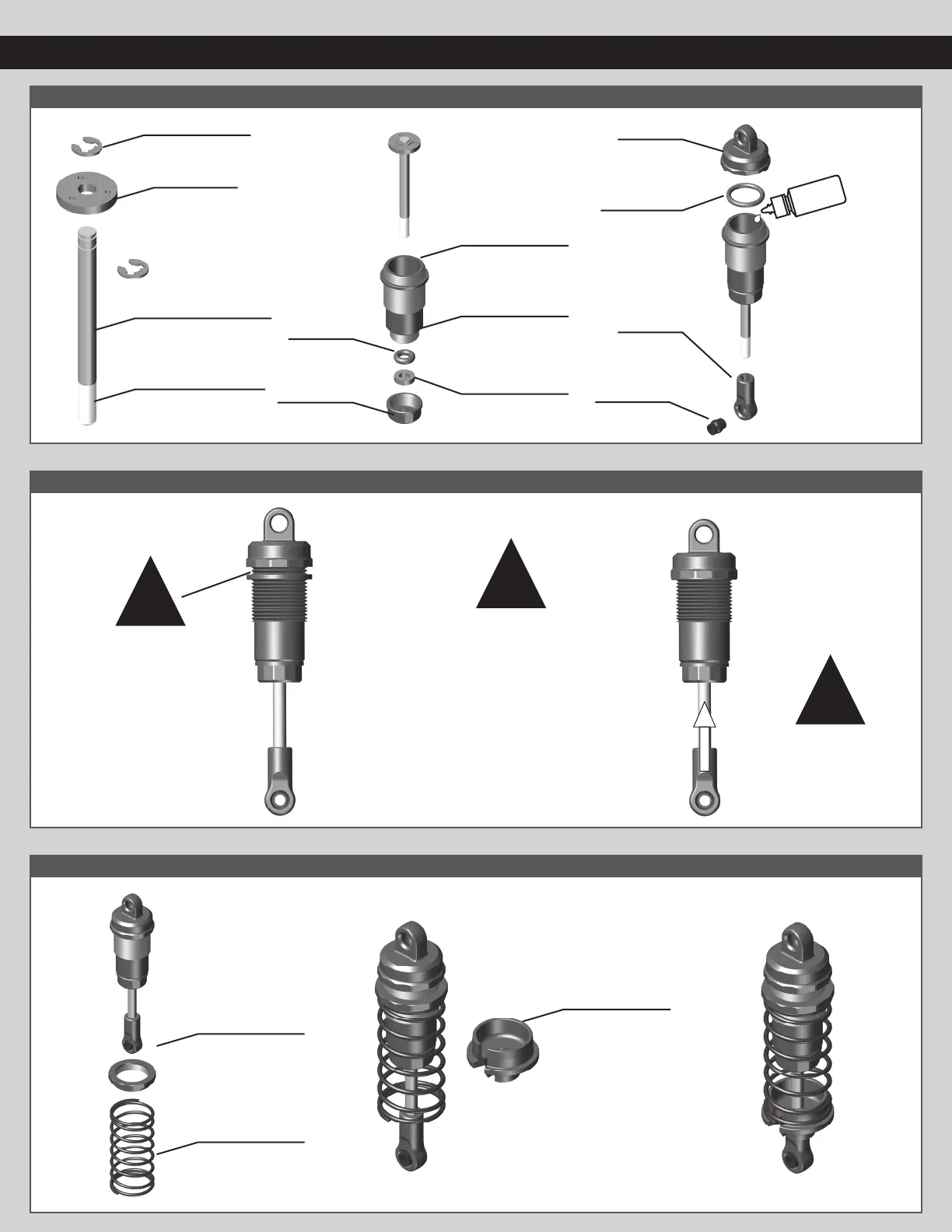

:: :: Step 27Step 27
:: :: Step 26Step 26
:: :: Step 25Step 25
Build x4 (x2 front, x2 rear)
Some residual shock
 uid may appear from
your  rst few runs
around the shock cap
as a result of bleeding.
Leave a gap when
installing the shock cap.
Compress shock shaft half way.
Let shock  uid bleed from cap, then
tighten cap.
For less rebound, compress shock
shaft farther before tightening the
shock cap.
For more rebound, do not
compress shock shaft as far
before tightening the shock cap.
!
!
!
shock
 uid
Front Shock Fluid:
30wt #5422
Rear Shock Fluid:
30wt #5422
x2x2
21538
E-clip
21537
Shock
piston
21535
Shock shaft,
front (3x37mm)
21534
Shock body,
front (short)
21534
Shock body,
rear (long)
21537
Seal spacer
21530
Shock
o-ring
21536
Shock
cap
21530
Shock
cap o-ring
21537
Shock
end
21537
Shock
pivot ball
21536
Bottom
shock cap
21535
Shock shaft,
rear (3x43mm)
21536
Shock spring
collar
21536
Shock cup
21533
Shock spring
