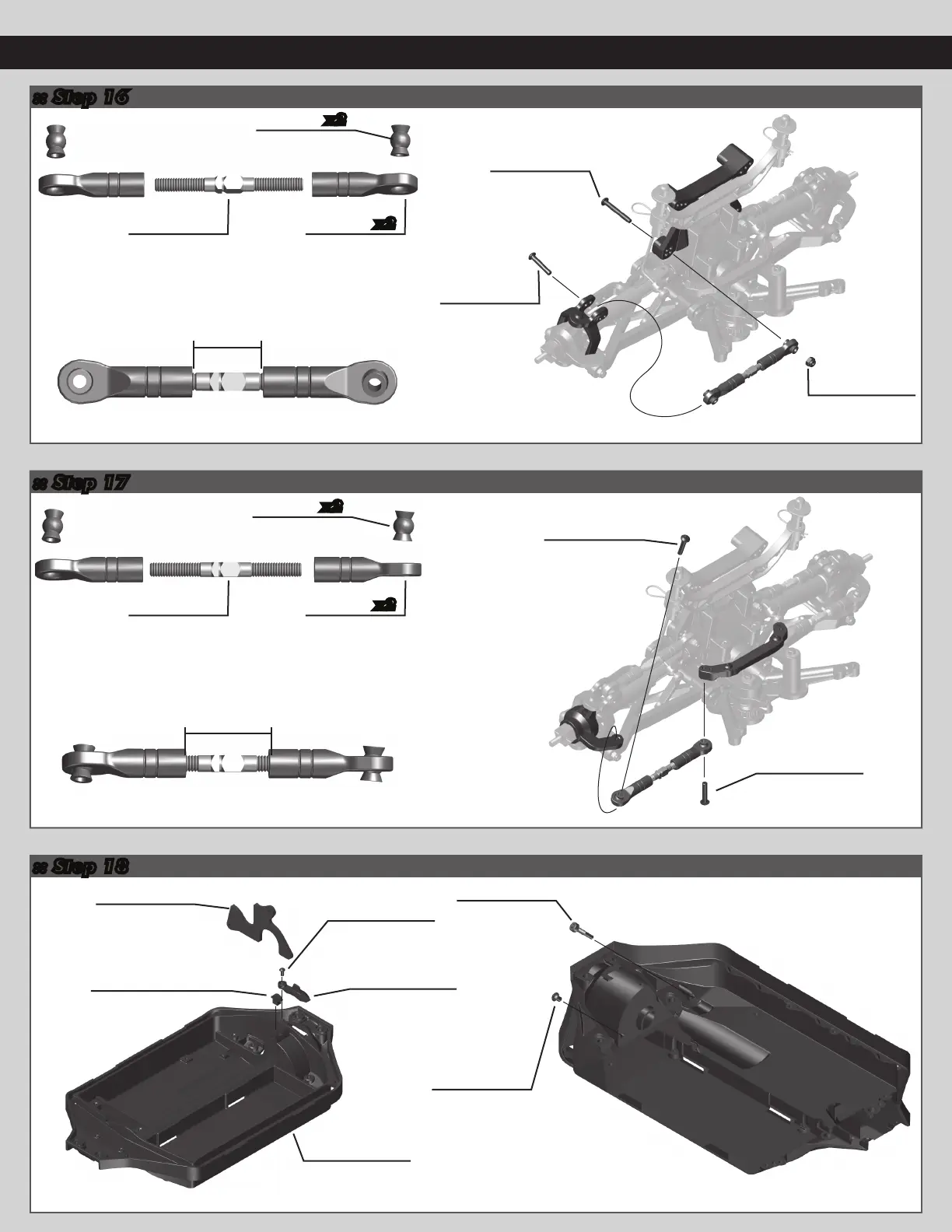

Associated Electrics Rival MT10 - Step 16 Assembly

11
:: Step 18
:: Step 17
:: Step 16
Build x2 (right and left side)
Build x2 (right and left side)
15.50mm
22.00mm
Steering Turnbuckle
Steering Turnbuckle
x2
x2
x2
25824
Ball Cup
25824
Ball Cup
25824
Turnbuckle
25824
Turnbuckle
25828
Pivot Ball,
Long
89203
3x16mm
BHCS
25187
3x14mm
BHCS
25815
Motor Mount
25815
Motor Mount
Pivot Screw
91158
3x4mm
BHCS
25815
Motor Mount
Nut
25189
3x22mm
BHCS
25215
M3 Locknut
25187
3x14mm
BHCS
25800
Chassis
31519
2.5x5mm
BHCS
25800
Spur Gear
Cover
x2
25828
Pivot Ball,
Long
