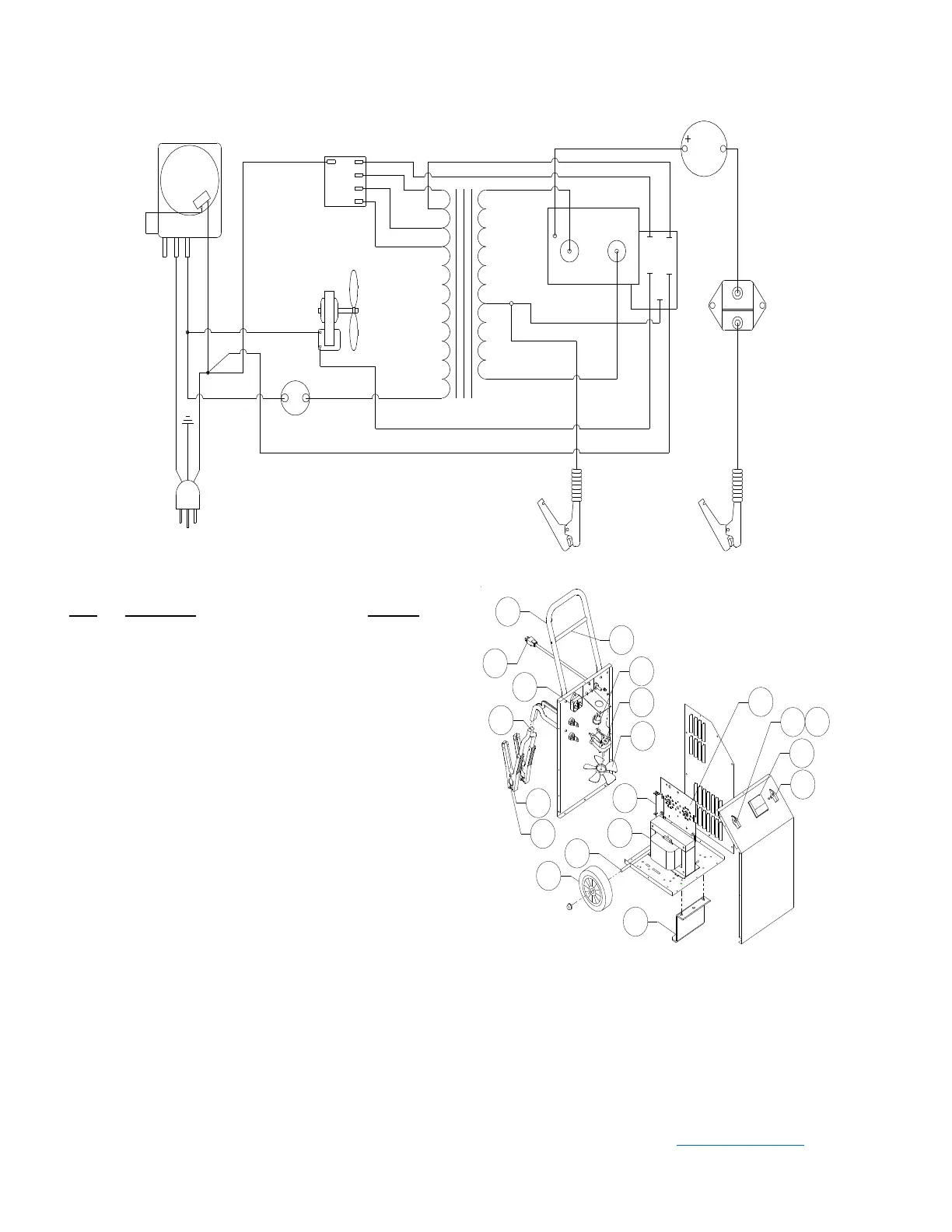

WIRING DIAGRAM
MODEL 6012AGM PARTS LIST
Item Description Part No.
1 Front leg ................................................610825
2 Wheels w/nuts .......................................605672
3 Axle w/nuts ............................................610052
4 Transformer ...........................................610819
5 Rectifier .................................................611484
6 Fan Blade ..............................................610189
7 Fan Motor ..............................................610190
8 Timer w/knob .........................................611245
9 Ammeter ................................................605204
10 DC Circuit Breaker ................................610536
11 DC Cable set .........................................610820
12 PCB AGM ..............................................611476
13 AC Cord .................................................611248
14 Switch w/knob ........................................611187
15 Clamps (1pair, includes jaws) ....................6202
16 Jaw Kit (repairs 1 clamp) .......................610970
17 Pointer Knob-Switch ..............................603147
18 AC Circuit Breaker .................................603597
19 Handle ...................................................605213
20 Clamp Bar ..............................................610517
