Associated TC7.2 - Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 5; Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 6; Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 7

21

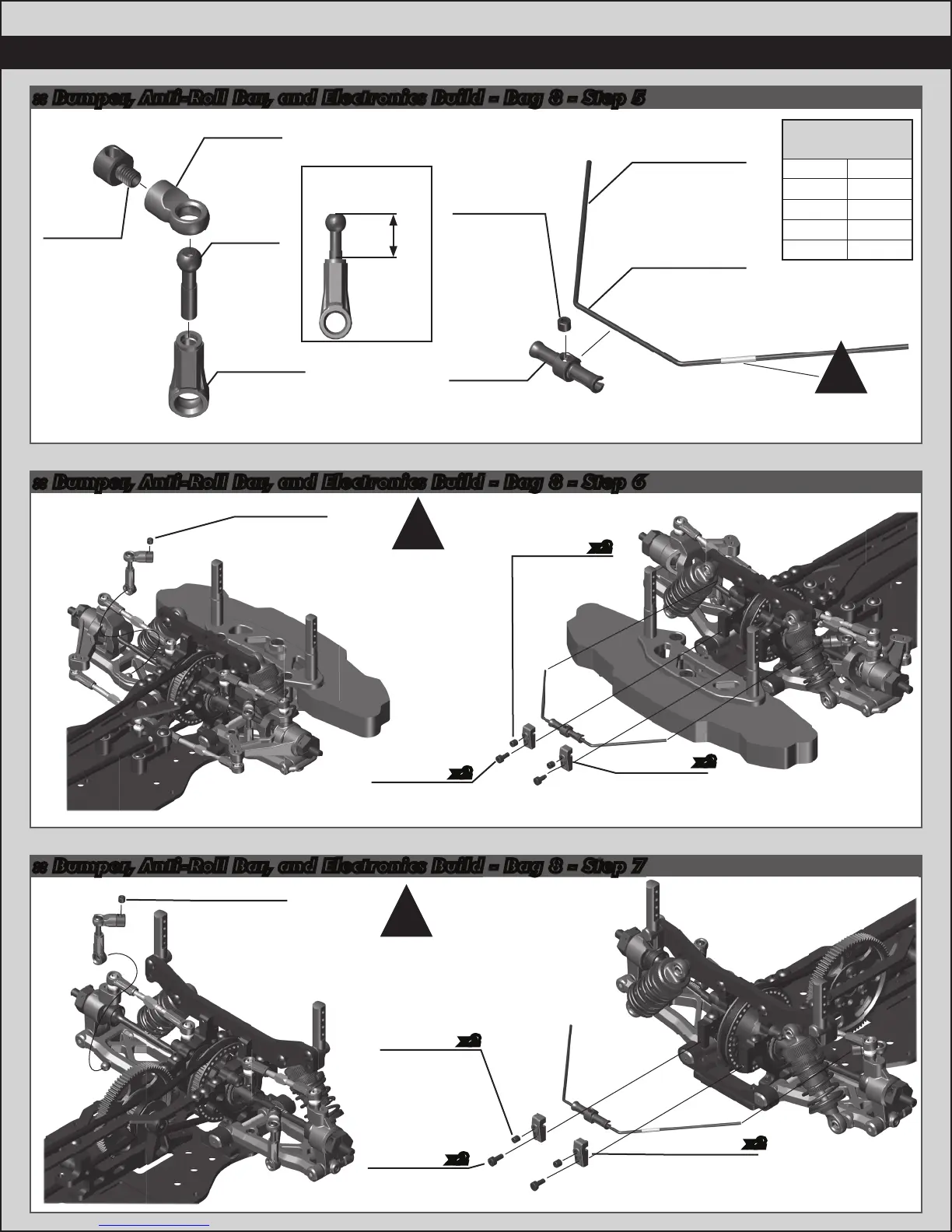

:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 5
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 6
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 7
31701
TC7 anti-
roll bar
eyelet
31058
Anti roll
bar
ballstud
31305
Turnbuckle
eyelet
31703
TC7 Front
anti-roll bar,
1.4mm (blue)
31707
TC7 Rear
anti-roll bar,
1.2mm (white)
31701
TC7 anti-
roll bar
retainer
31701
TC7 anti-
roll bar
coupler
31500
M3x2.5mm
set screw
Shrink the colored
heat shrink tubing to
the anti roll bar!
!
Anti Roll Bar
Color/Size Chart
Green
White
Gray
Blue
Yellow
1.1mm
1.2mm
1.3mm
1.4mm
1.5mm
Build four
anti-roll
bar mounts
9.5mm
Anti Roll Bar
Link Adjust
ment
Tighten #25225 set
screws just enough
to allow the anti-roll
bar to move freely !
Tighten #25225 set
screws just enough
to allow the anti-roll
bar to move freely !
!
!
x2
x2
x2
x2
31511
M2x5mm
shcs
31511
M2x5mm
shcs
31701
TC7 anti-
roll bar
mount
31701
TC7 anti-
roll bar
mount
31500
M3x2.5mm
set screw
31500
M3x2.5mm
set screw
25225
M3x3mm
set screw
25225
M3x3mm
set screw
x2
x2
