AST PCH GMP-025 Series User Manual

#60065-02: Page #5

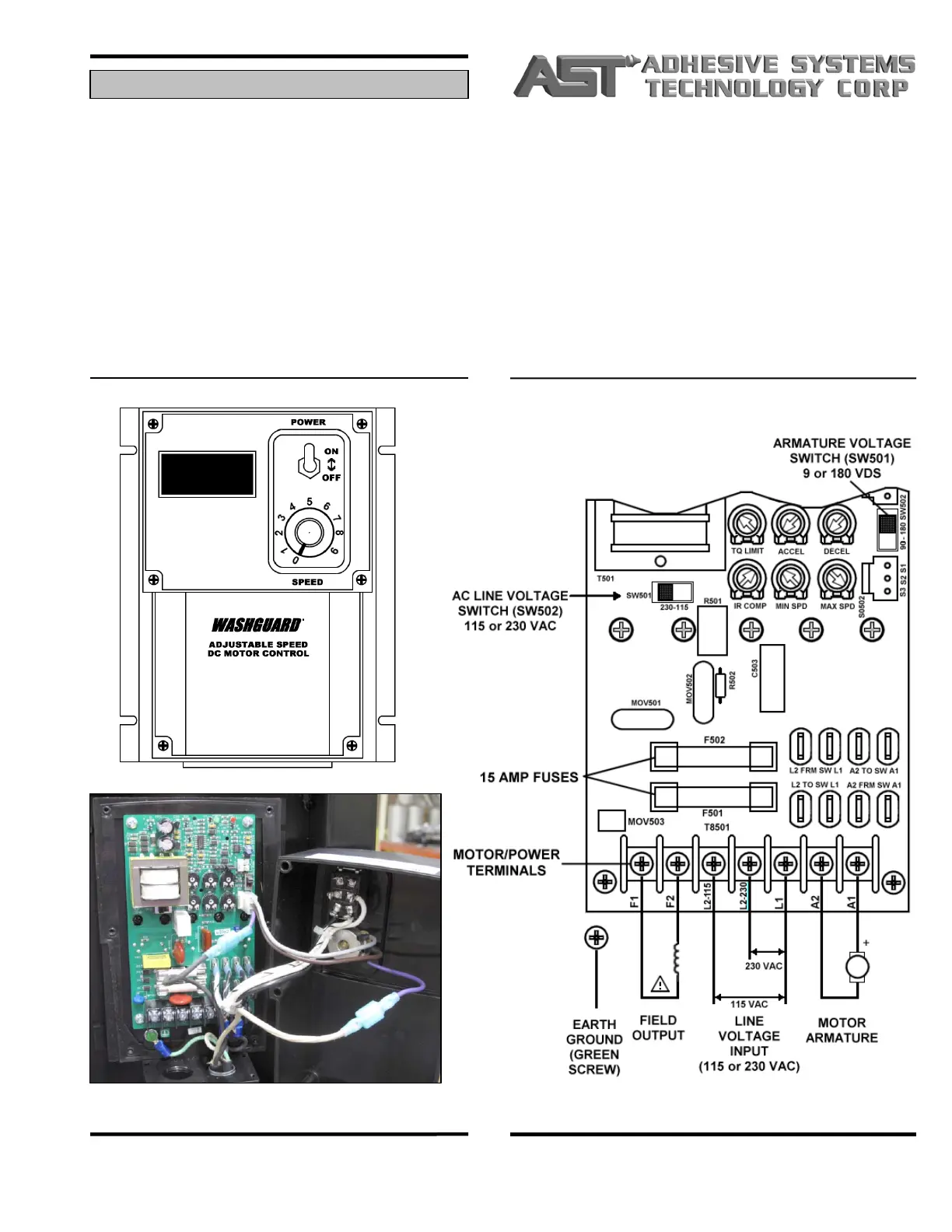

ELECTRICAL CONTROLS
Operation signals are given by a trigger switch. This signal will start pump operation and air signals will automatically open
and close the dispense valve when desired.
One control for the operator to set or adjust is the drive motor speed controller. Turning the speed control potentiometer
clockwise will increase the speed of the motor & increase the output of the pumps.
FUSE: Two fuses are located inside the motor controller, one for the motor armature and one for the controller itself. USE
ONLY CSA CERTIFIED FUSES with a DUAL ELEMENT (type MDL). Replacement fuses must be exact matches of the
fuses originally supplied.
POWER SUPPLY: Ground fault protection is required. USE ONLY UL LISTED GFI PLUGS designed to allow portable
equipment users the ability to provide ground fault protection to their equipment.
