AST SureLock SLGDL-7 - Parts List

Wall/Ceiling Outlet

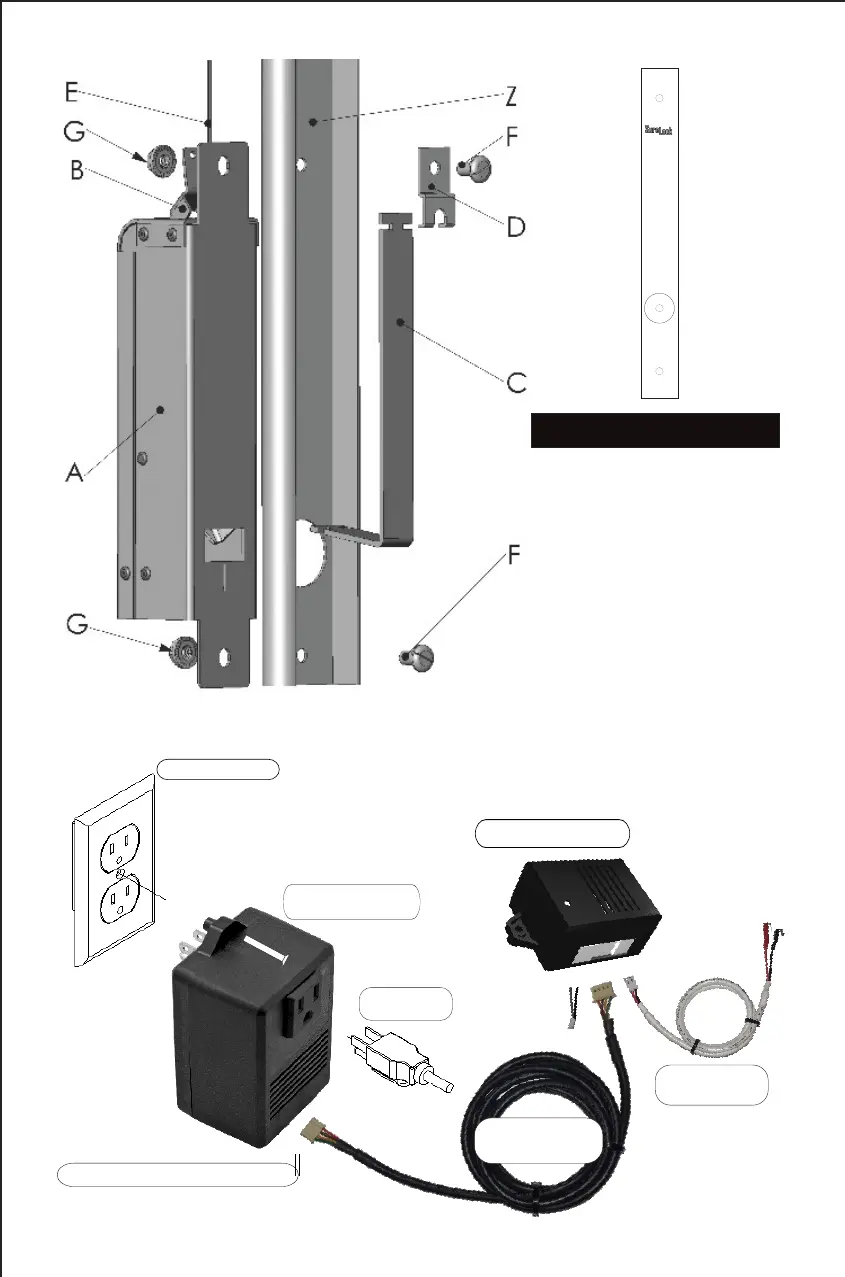

A: SureLock
B: Red Manual Release
Lever
C: Lock Bar
D: Lock Bar Hinge
E: SureLock Wire (30')
F: 1/4" Bolt (x2)
G: 1/4" Nut (x2)
H: Drill Hole Template
I: SureLock Control
Module
J: SureLock Sensor
K: 4-Pin Harness
L: Backup Battery Harness
Z: Door Track
D
r
i
l
l
H
o
l
e
T
e
m
p
l
a
t
e
#1
Drill 1/4” Hole
#2
Drill 1” Hole
Using The Supplied Hole Saw
#3
Drill 1/4” Hole
Cover Plate
Replacement Screw
Garage Door
Opener Plug
J: SureLock Sensor
I: SureLock Control Module
H:
Parts List
K: SureLock
4-Pin Harness
L: SureLock Backup
Battery Harness
Wires From
SureLock
Connect Here
