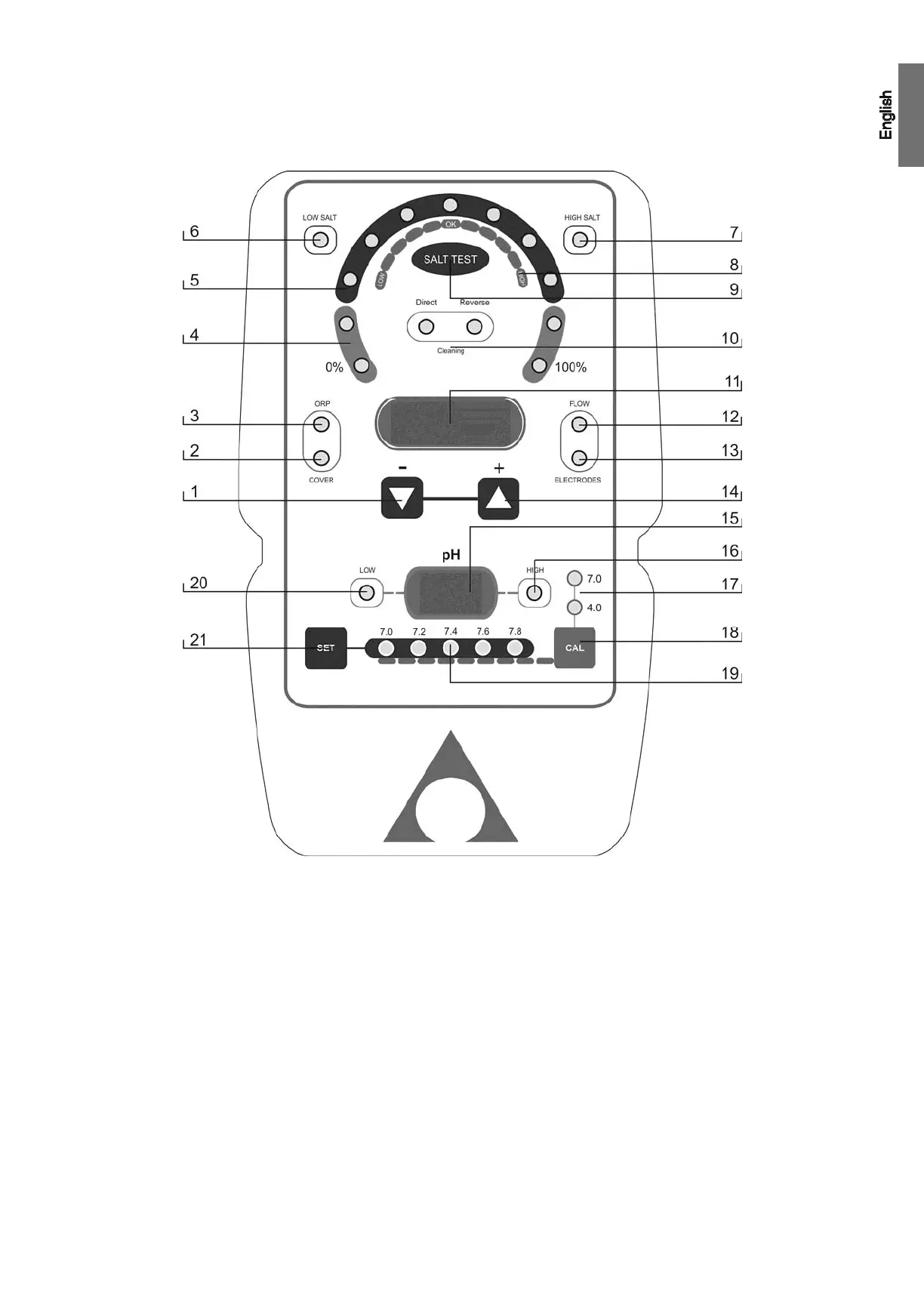

The AstralPool Chlore Smart+PH electrolysis systems are equipped with a control panel on the front (Fig. 14b).
Fig. 14b
1. Key “
-” (decrease production / programming menu
navigation).
2. Indicator of activated AUTOMATIC COVER control.
3. Indicator of activated ORP CONTROL.
4. Production scale (%).
5. PRODUCTION+SALINITY TEST scale.
6. Indicator of LOW SALINITY.
7. Indicator of HIGH SALINITY.
8. SALINITY scale (qualitative).
9. Key for “SALINITY TEST”.
10. SELF-CLEANING indicators
(DIRECT/REVERSE) polarity.
11. Display of SYSTEM INFORMATION.
12. Indicator of FLOW ALARM.
13. Indicator of ELECTRODE passivation ALARM.
14. Key “
+” (increase production / programming menu
navigation).
15. Display of water pH.
16. Indicator of HIGH PH ALARM (> 8.5).
17. Indicator of pH CALIBRATION SOLUTION [7.0 / 4.0].
18. Key for pH CALIBRATION MODE.
19. Indicator of PH SETPOINT.
20. Indicator of LOW PH ALARM (< 6.5).
21. Key for PH SETPOINT PROGRAMMING.
