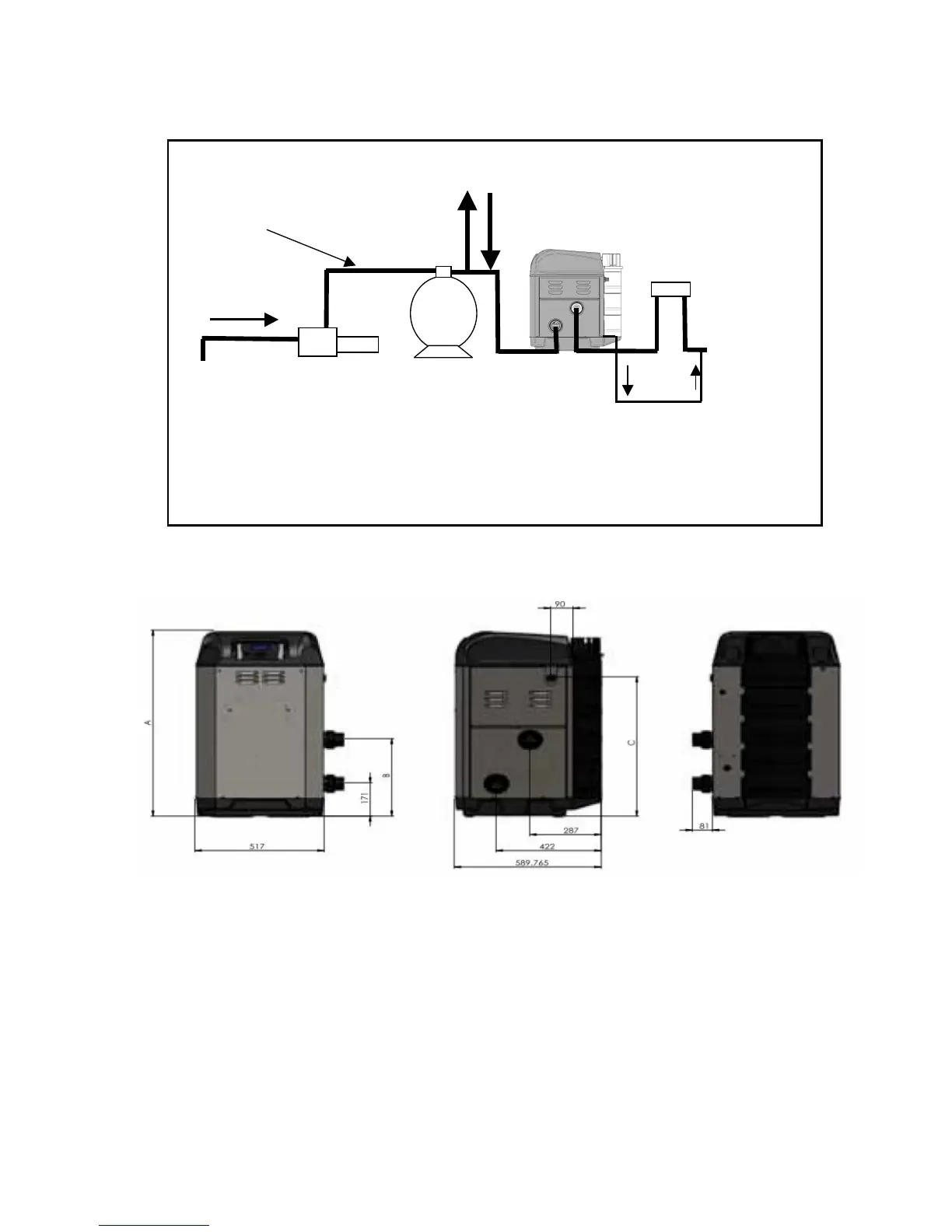

PLUMBING DIAGRAM
HEATER DIMENSIONS
Model
Dimension A
Dimension B
Dimension C (Gas Conn)
Viron 250
747mm
285mm
511mm
Viron 350
747mm
285mm
511mm
Viron 450
950mm
395mm
714mm
Viron 550
950mm
395mm
737mm
Condensation Drain Hose (optional)
To Solar
From Solar
From Pool
Pump
Filter
Heater
Chlorinator
Return to Pool
Heater Diagram
1. Plumbing in high pressure 50mm PVC pipe
2. Connection to heater in Class 12 or higher
3. All automatic Chlorinators or Sanitisers Must be installed after heater
PVC Piping
