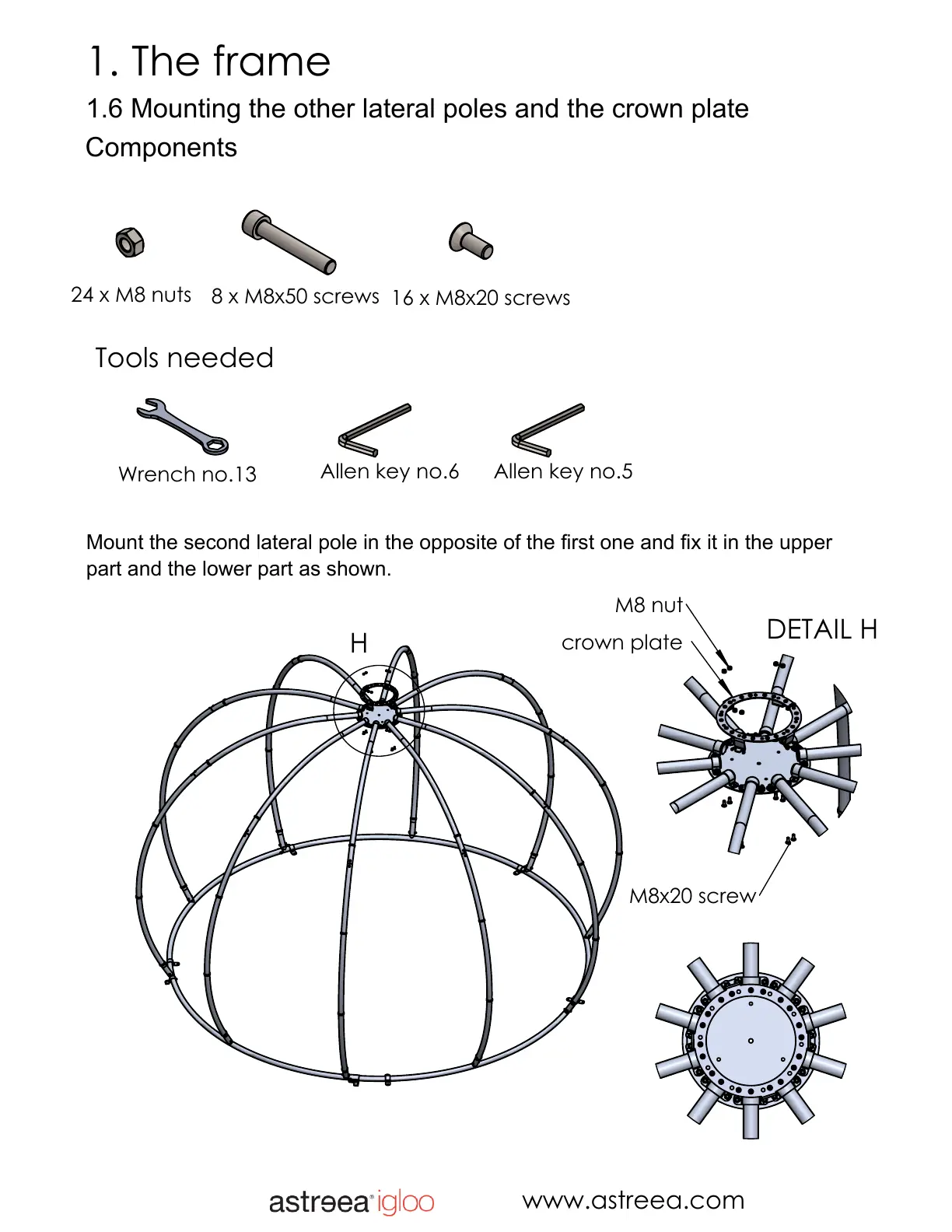

24 x M8 nuts
Wrench no.13
Allen key no.6
Mount the second lateral pole in the opposite of the first one and fix it in the upper
part and the lower part as shown.
H
16 x M8x20 screws
Allen key no.5
DETAIL H
M8 nut
M8x20 screw
crown plate
1. The frame
1.6 Mounting the other lateral poles and the crown plate
Tools needed
Components
8 x M8x50 screws
