3 x M8 nuts
Wrench no.13
Allen key no.6

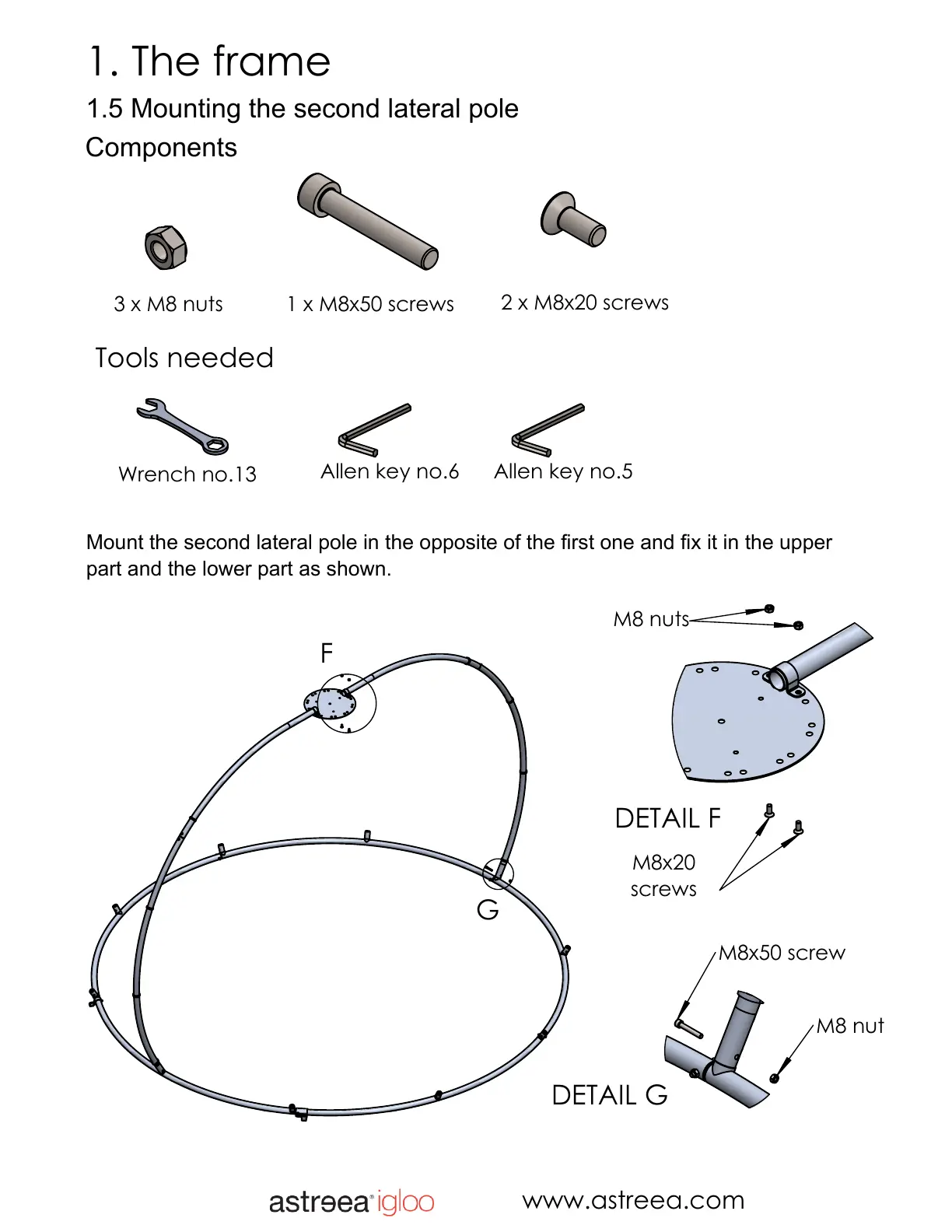

Mount the second lateral pole in the opposite of the first one and fix it in the upper
part and the lower part as shown.
F
G
2 x M8x20 screws
Allen key no.5
DETAIL F
M8 nuts
M8x20
screws
DETAIL G
M8x50 screw
M8 nut
1. The frame
1.5 Mounting the second lateral pole
Tools needed
Components
1 x M8x50 screws
