I
door rail
DETAIL I
central bolt
assembly
upper panel
M6x12 screws
1 x upper panel
1 x central
bolt assembly
2 x M6x12
screw
Allen key no.4
door

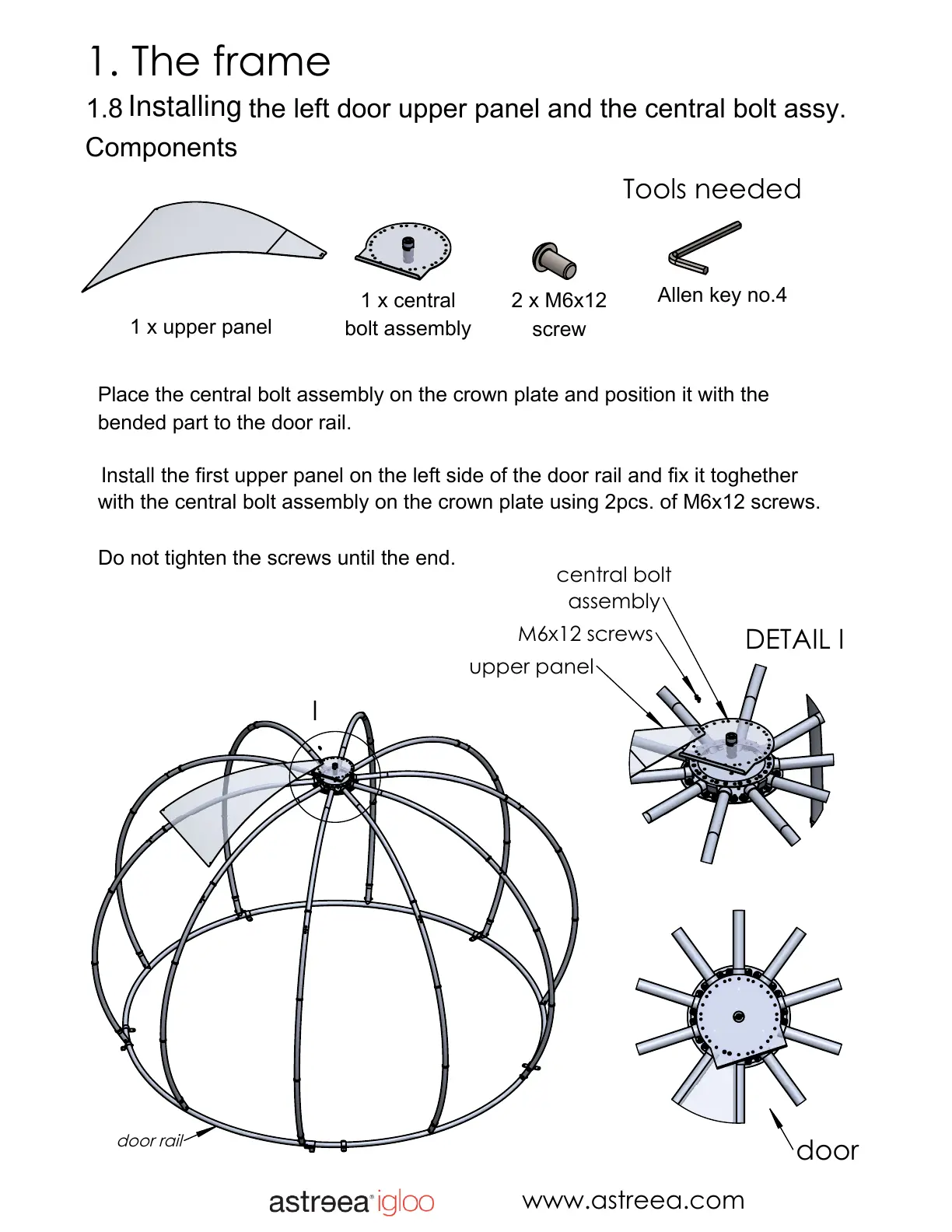

1. The frame
1.8 Mounting the left door upper panel and the central bolt assy.
Components
Place the central bolt assembly on the crown plate and position it with the
bended part to the door rail.
Mount the first upper panel on the left side of the door rail and fix it toghether
with the central bolt assembly on the crown plate using 2pcs. of M6x12 screws.
Do not tight the screws until the end.
Tools needed
www.astreea.com
To Next Page
