J
2 x M6x10
screw
Allen key no.4
lower panel
DETAIL J
upper aluminium ring
M6x10 screw
lower panel
upper panel
frame ring
lateral pole
allign it with the
lateral pole
1. The frame

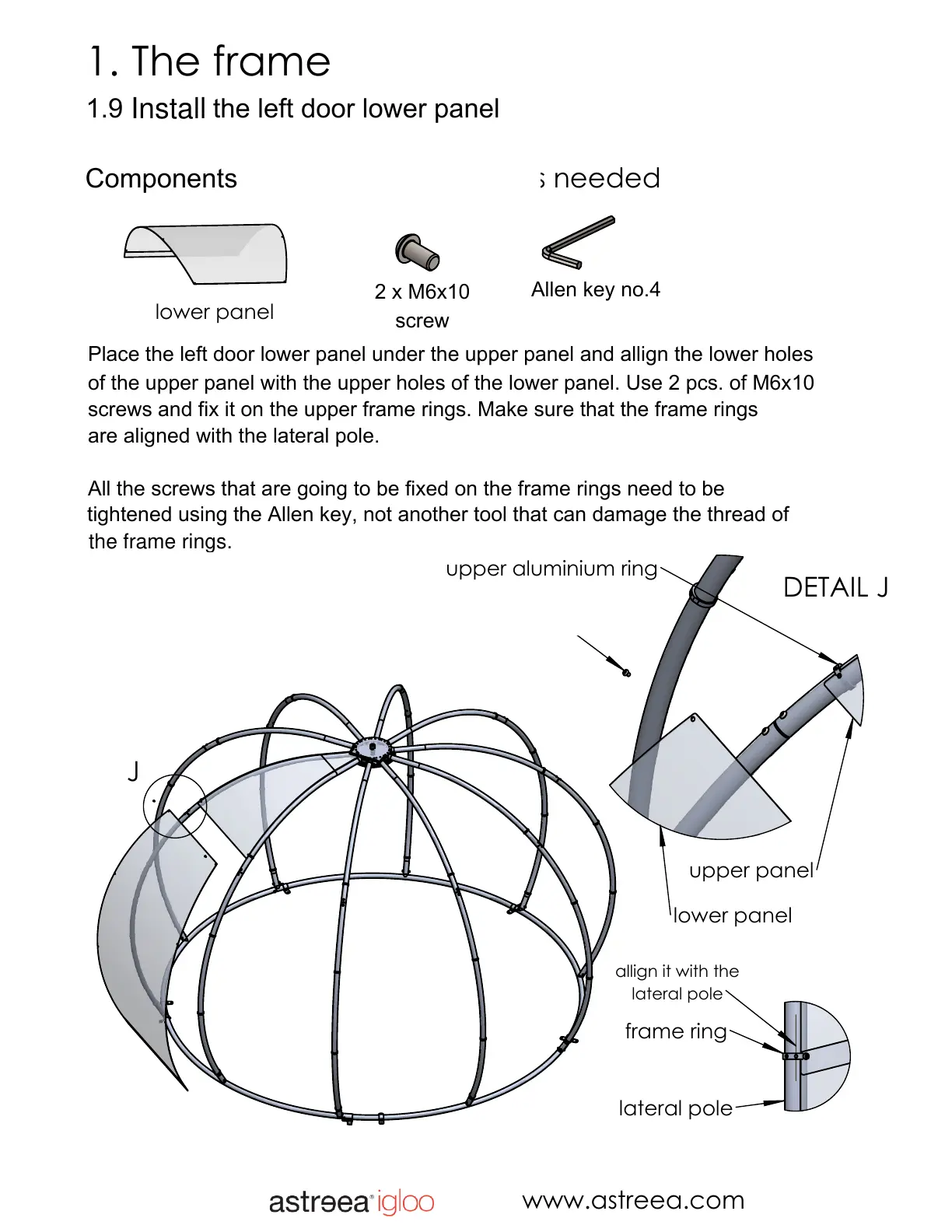

1.9 Mount the left door lower panel
Components
Place the left door lower panel under the upper panel and allign the lower holes
of the upper panel with the upper holes of the lower panel. Use 2 pcs. of M6x10
screws and fix it on the upper frame rings. Make sure that the frame rings
are aligned with the lateral pole.
All the screws that are going to be fixed on the frame rings need to be
tighten using the Allen key not another tool that can damege the thread of the
rings.
Tools needed
