astreea IGLOO L PLUS - Page 21

Allen key no.5
1 x upper plate
1 x lower plate
left upper pole
central upper plate
right upper plate
M8x55 screw
lower plate
upper plate
washer M8
nut M8
1 x upper
central pole
1 x upper
right pole
1 x upper
left pole
6 x M8x55
screw
5 x M8
washer
5 x M8 nut
Wrench no.13

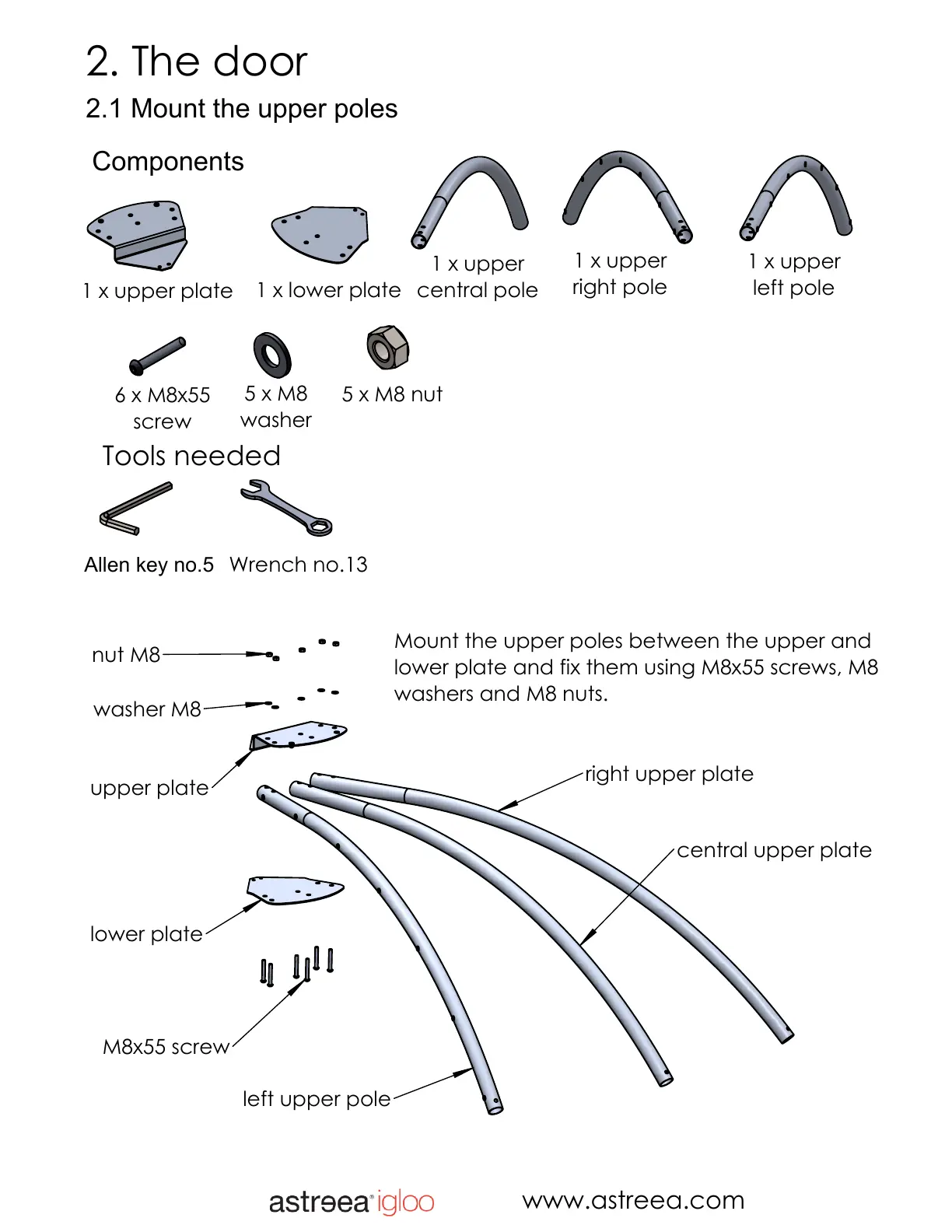

Mount the upper poles between the upper and
lower plate and fix them using M8x55 screws, M8
washers and M8 nuts.
2. The door
2.1 Mount the upper poles
Components
Tools needed
www.astreea.com
