astreea IGLOO L PLUS - Page 22

Allen key no.5
1 x right lower pole
1 x M8x25 screw
door rings
M8x25 screw

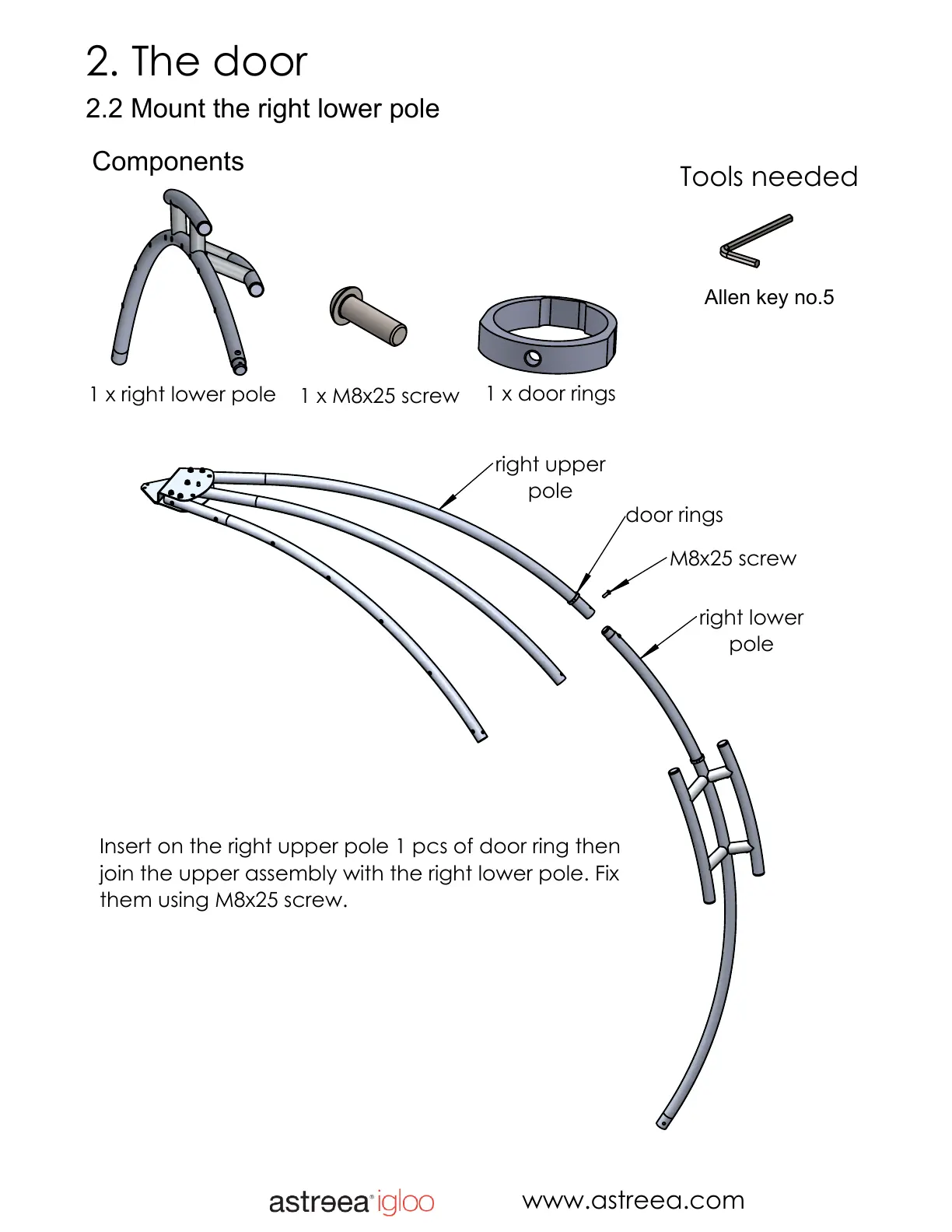

Insert on the right upper pole 1 pcs of door ring then
join the upper assembly with the right lower pole. Fix
them using M8x25 screw.
right upper
pole
right lower
pole
1 x door rings
2. The door
2.2 Mount the right lower pole
Components
Tools needed
www.astreea.com
