astreea IGLOO L PLUS - Page 23

Allen key no.5
1 x M8x25 screw
M8x25 screw
central lower pole
1 frame ring

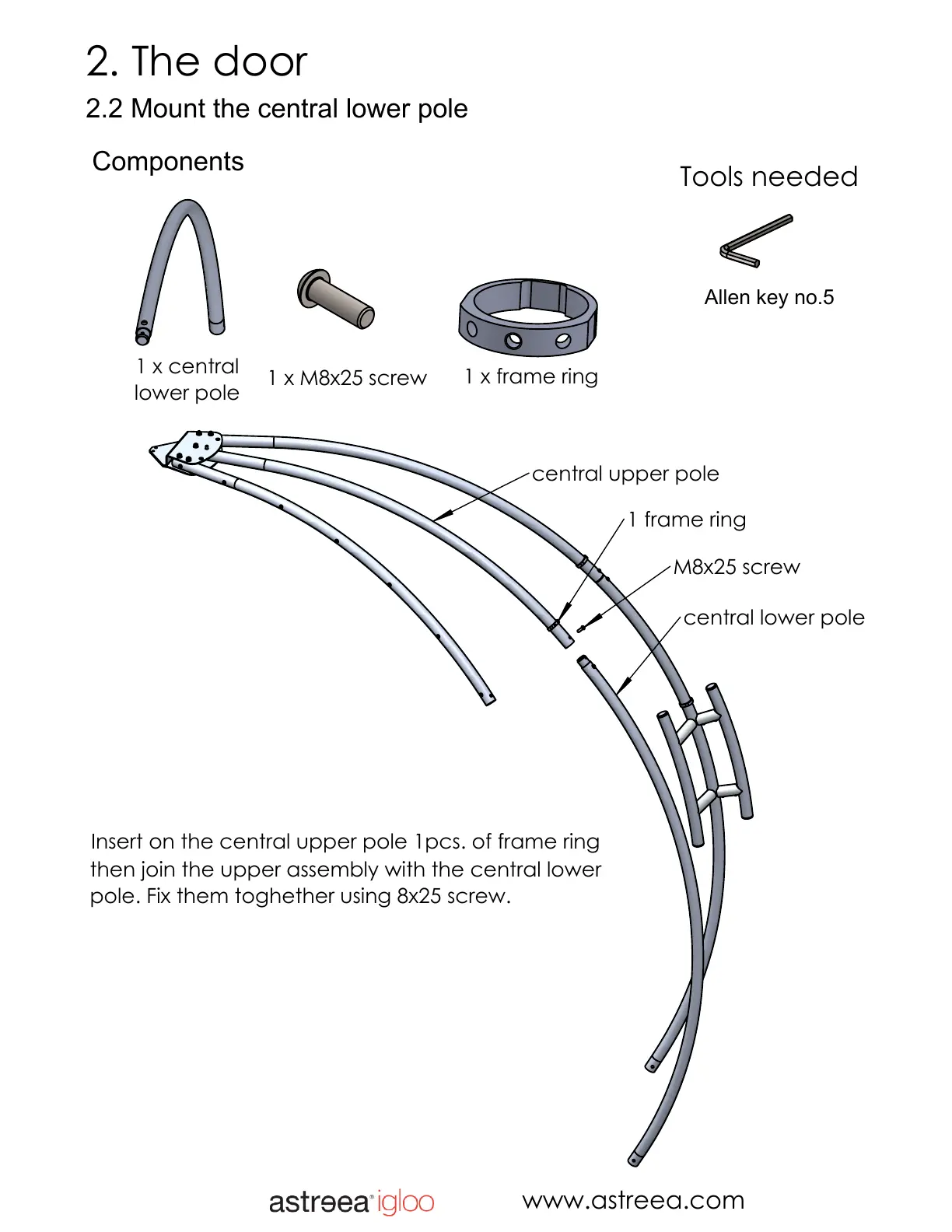

Inser on the central upper pole 1pcs. of frame ring
then join the upper assembly with the central lower
pole. Fix them toghether using 8x25 screw.
central upper pole
1 x frame ring
1 x central
lower pole
2. The door
2.2 Mount the central lower pole
Components
Tools needed
www.astreea.com
Insert on the central upper pole 1pcs. of frame ring
