astreea IGLOO L PLUS - Page 24

Allen key no.5
1 x M8x25 screw
M8x25 screw
left lower pole
1 door ring
left upper pole
Inser on the left upper pole 1pcs. of door ring
then join the upper assembly with the left lower
pole. Fix them toghether using 8x25 screw.
1 x door ring
1 x left
lower pole

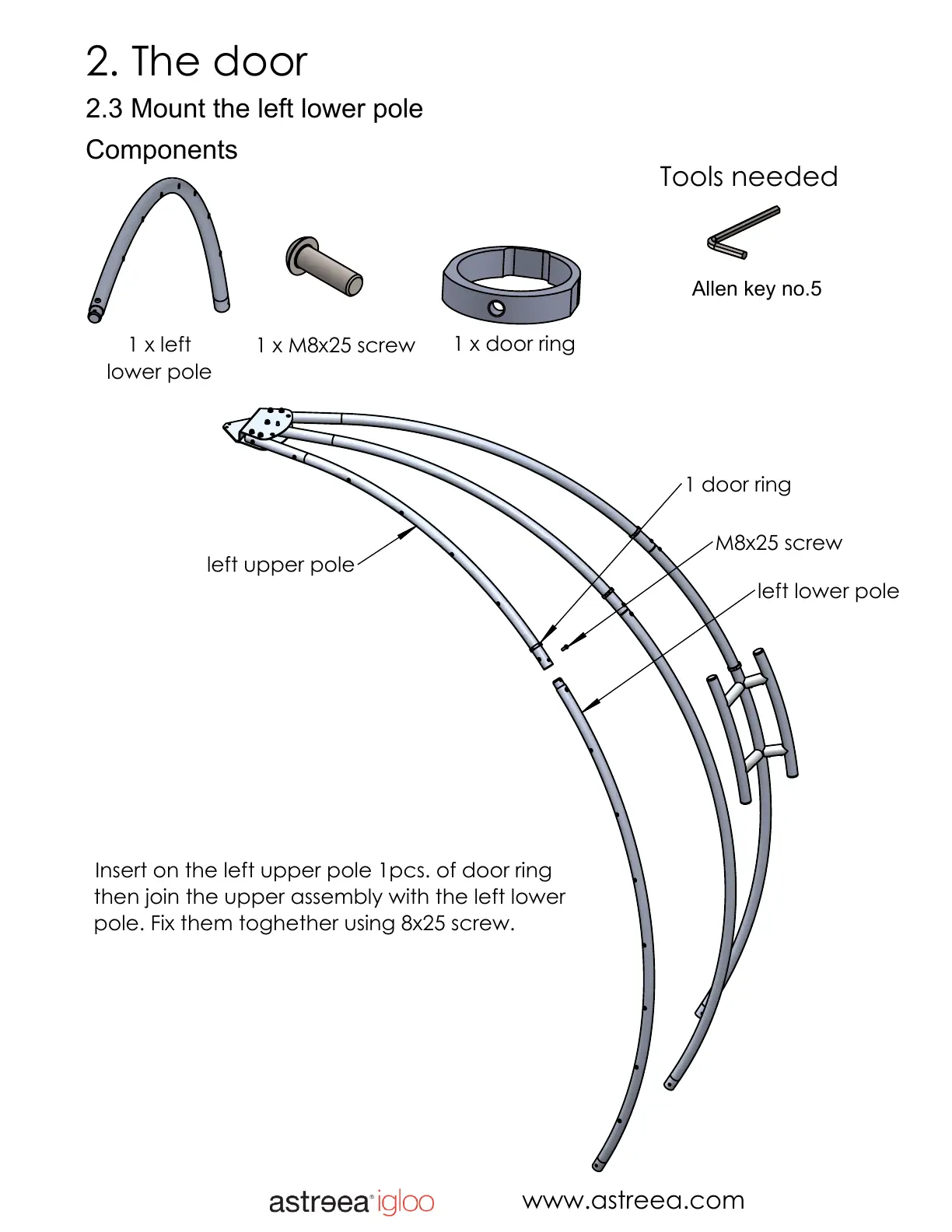

2. The door
2.3 Mount the left lower pole
Components
Tools needed
www.astreea.com
Insert on the left upper pole 1pcs. of door ring
