Allen key no.5
1 x base door rail
5 x door ring
3 x frame ring
3 x M8x45
screws
3 x M8 nuts
Wrench no.13
base door rail
M8 nut
door rings
door rings
M8x45 screw
frame rings

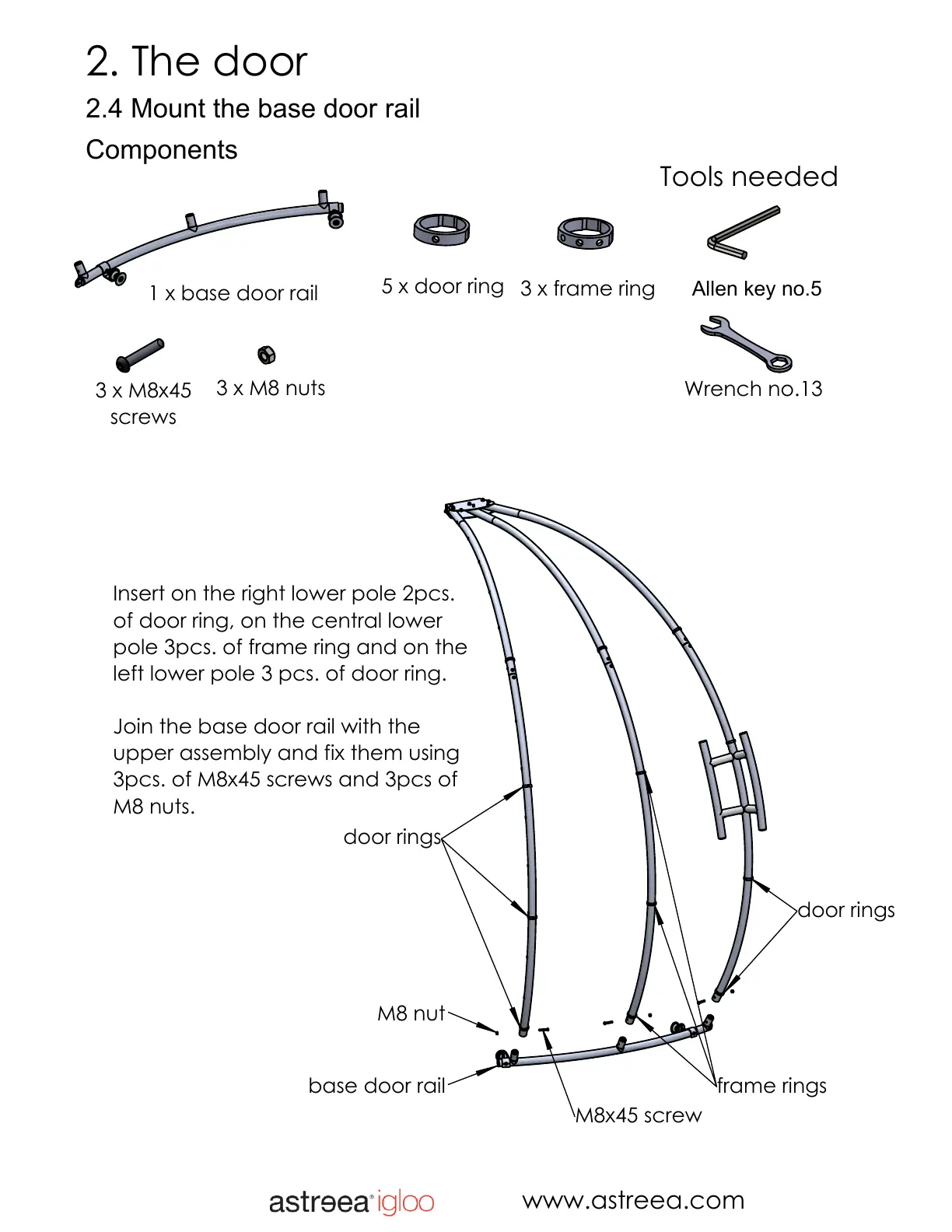

2. The door
2.4 Mount the base door rail
Components
Tools needed
Insert on the right lower pole 2pcs.
of door ring, on the central lower
pole 3pcs. of frame ring and on the
left lower pole 3 pcs. of door ring.
Join the base door rail with the
upper assembly and fix them using
3pcs. of M8x45 screws and 3pcs of
M8 nuts.
www.astreea.com
